Toyota Land Cruiser

2021-07 → present · chassis FJA300,VJA300 · catalogue 791170 · Japan

Supported model Data version 2021-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

9 part groups · 3 illustrations

Illustrations

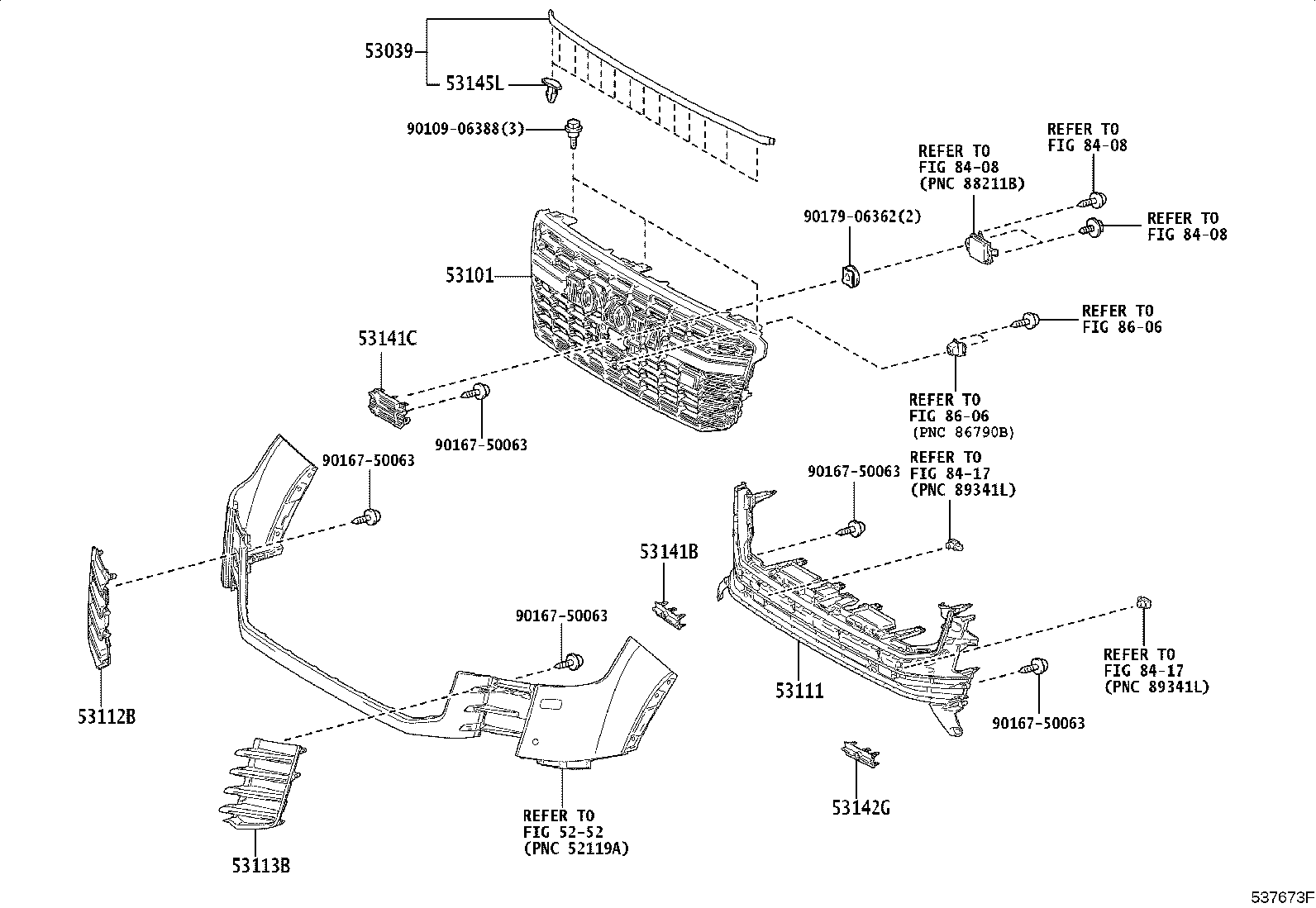

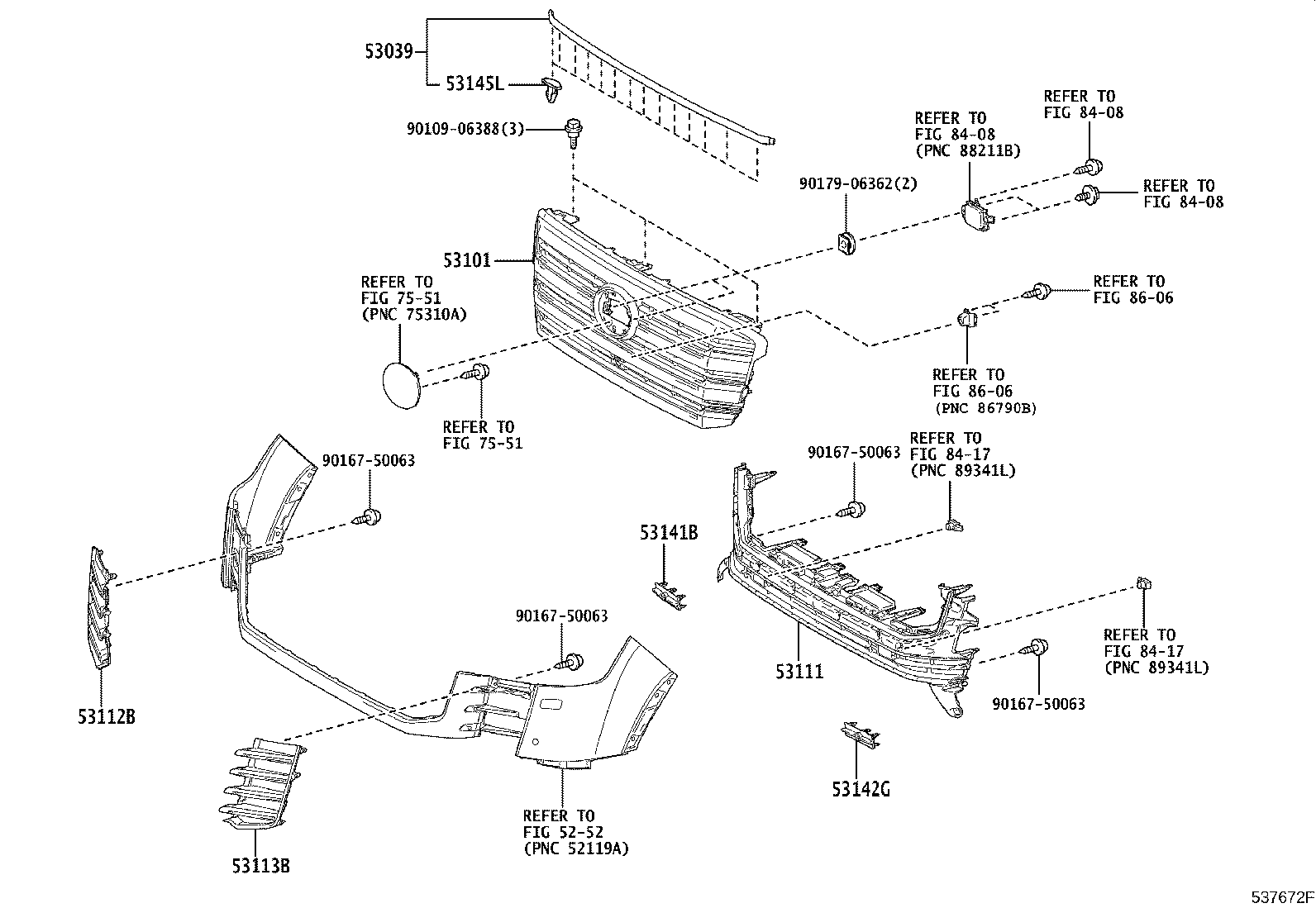

Figure 537671D 537671D 2021-07 → — Figure 537672F 537672F 2021-07 → — Figure 537673F 537673F 2021-07 → —

Part groups

PNCDescription
53039 Seal, Radiator, Upper
53101 Grille Sub-assy, Radiator
53111 Grille, Radiator
53112B Grille, Radiator Side, RH
53113B Grille, Radiator Side, LH
53141B Garnish, Radiator Grille, NO.1
53141C Garnish, Radiator Grille
53142G Garnish, Radiator Grille, NO.2
53145L Clip, Radiator Grille
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
