Toyota Land Cruiser
2021-07 → present · chassis FJA300,VJA300 · catalogue 791170 · Japan
Supported model
Data version 2021-08
Roof Panel & Back Panel
47 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

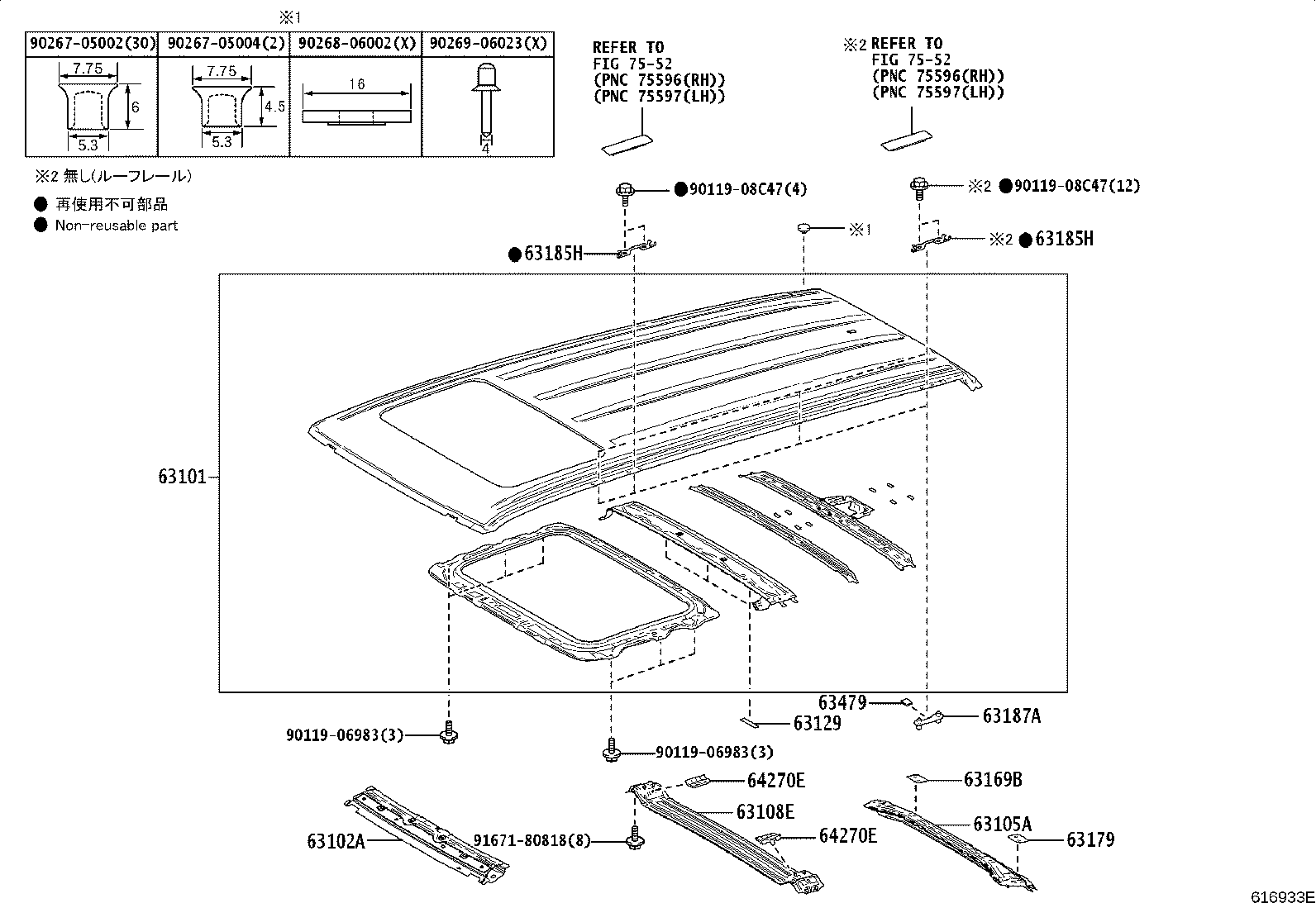

| 63101 | Panel Sub-assy, Roof |
| 63102A | Panel Sub-assy, Windshield Header |
| 63105A | Frame Sub-assy, Back Door Opening |
| 63108E | Reinforcement Sub-assy, Roof Panel, NO.6 |
| 63129 | Protector, Windshield Header |
| 63147K | Reinforcement, Back Door Opening Frame |
| 63169B | Plate, Roof Panel Reinforcement, RH |
| 63179 | Plate, Roof Panel Reinforcement, LH |
| 63185H | Bracket, Roof Rack |
| 63187A | Bracket, Roof Rack, Rear |

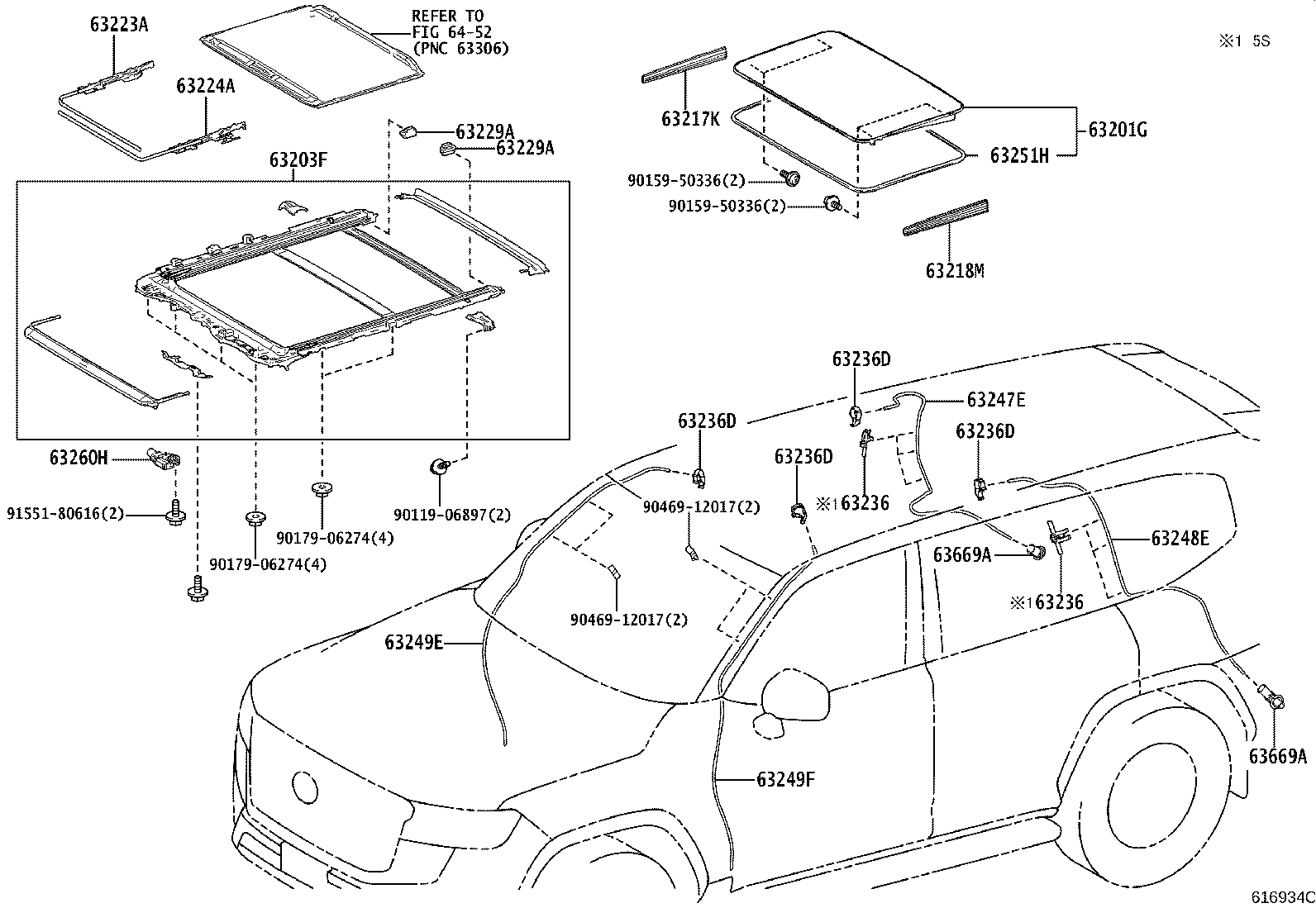

| 63201G | Glass Sub-assy, Sliding Roof |
| 63203F | Housing Sub-assy, Sliding Roof |
| 63217K | Garnish, Sliding Roof Side, RH |
| 63218M | Garnish, Sliding Roof Side, LH |
| 63223A | Cable, Sliding Roof Drive, RH |
| 63224A | Cable, Sliding Roof Drive, LH |
| 63229A | Stopper, Sliding Roof Sunshade |
| 63230A | Bolt Assy, Removable Roof |
| 63236 | Clamp, Sliding Roof OR Removable Roof Drain Hose |
| 63236D | Clamp, Sliding Roof Drain Hose |
| 63247E | Hose, Sliding Roof Drain, Rear RH |
| 63248E | Hose, Sliding Roof Drain, Rear LH |
| 63249E | Hose, Sliding Roof Drain |
| 63249F | Hose, Sliding Roof Drain |
| 63251H | Weatherstrip, Sliding Roof |
| 63260H | Gear Assy, Sliding Roof Drive |
| 63407C | Carrier Sub-assy, Roof, RH |
| 63408C | Carrier Sub-assy, Roof, LH |
| 63419A | Cover, Roof Rack |
| 63437A | Seal, Roof Carrier, NO.2 |
| 63479 | Retainer, Roof Inner Rack |
| 63484A | Cushion, Roof Rack Leg, Center RH |
| 63485A | Cushion, Roof Rack Leg, Center LH |
| 63486A | Cushion, Roof Rack Leg, Front RH |
| 63487A | Cushion, Roof Rack Leg, Front LH |
| 63488 | Cushion, Roof Rack Leg, Rear RH |
| 63489 | Cushion, Roof Rack Leg, Rear LH |
| 63491 | Cover, Roof Rack Leg, Front RH |
| 63492 | Cover, Roof Rack Leg, Front LH |
| 63493 | Cover, Roof Rack Leg, Rear RH |
| 63494 | Cover, Roof Rack Leg, Rear LH |
| 63495B | Cover, Roof Rack Leg, Center RH |
| 63496 | Cover, Roof Rack Leg, Center LH |
| 63669A | Grommet, Sliding Roof Drain |
| 64270E | Clip |
| 75563A | Retainer, Roof Drip Side Finish Moulding, NO.1 |
| 75564B | Retainer, Roof Drip Side Finish Moulding, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
