Toyota Land Cruiser

2021-07 → present · chassis FJA300,VJA300 · catalogue 791170 · Japan

Supported model Data version 2021-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

11 part groups · 2 illustrations

Illustrations

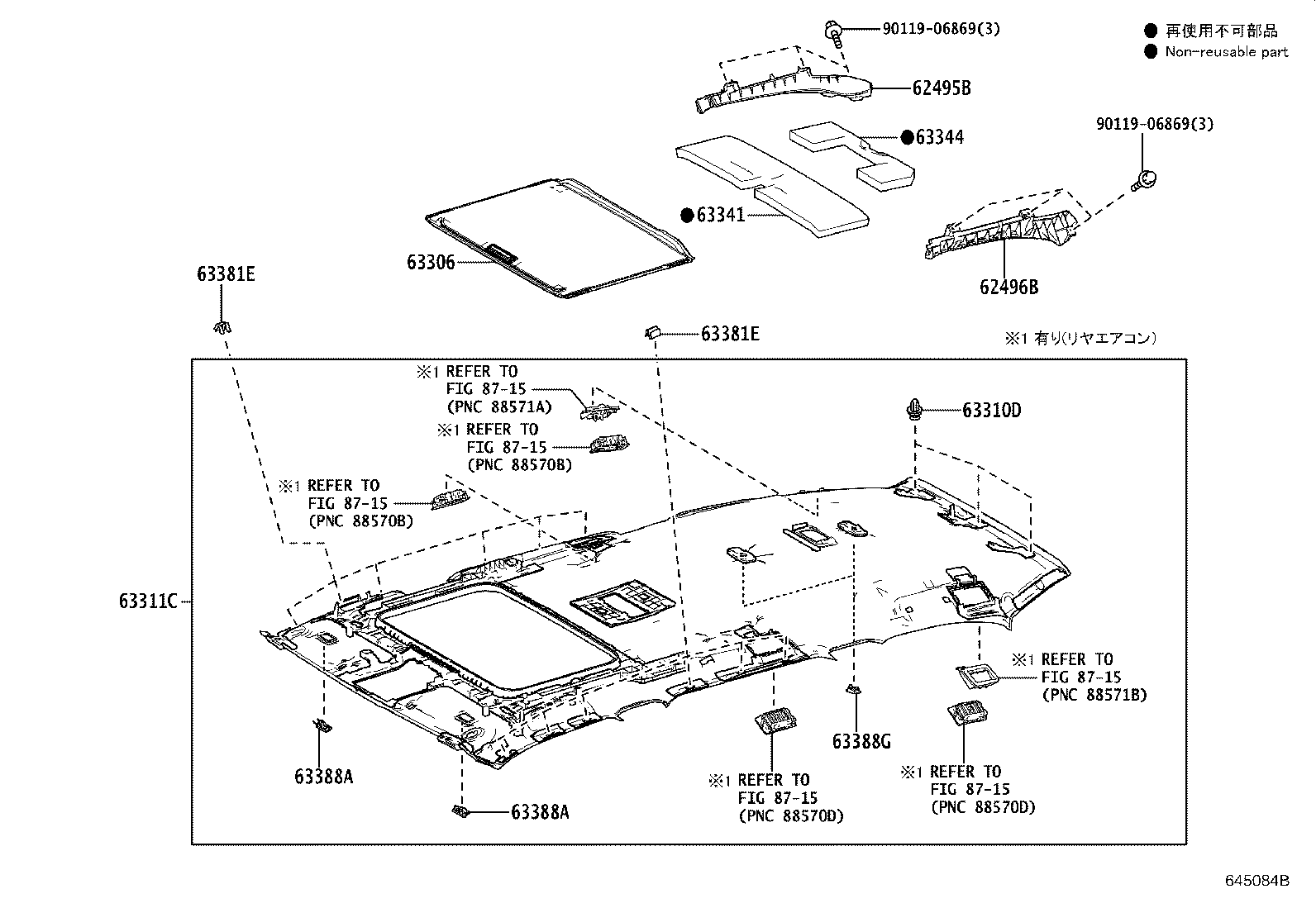

Figure 645083B 645083B 2021-07 → — Figure 645084B 645084B 2021-07 → —

Part groups

PNCDescription
62495B Spacer, Roof Side Inner Garnish, RH NO.2
62496B Spacer, Roof Side Inner Garnish, LH NO.2
63306 Trim Sub-assy, Sunshade
63310D Clip, Roof Headlining
63311C Headlining, Roof
63341 Pad, Roof Silencer, NO.1
63342 Pad, Roof Silencer, NO.2
63344 Pad, Roof Silencer, NO.4
63381E Retainer, Roof Headlining Trim, Front
63388A Cover, Roof Headlining Holder
63388G Cover, Roof Headlining Holder, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
