Toyota Land Cruiser

2021-07 → present · chassis FJA300,VJA300 · catalogue 791170 · Japan

Supported model Data version 2021-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

10 part groups · 3 illustrations

Illustrations

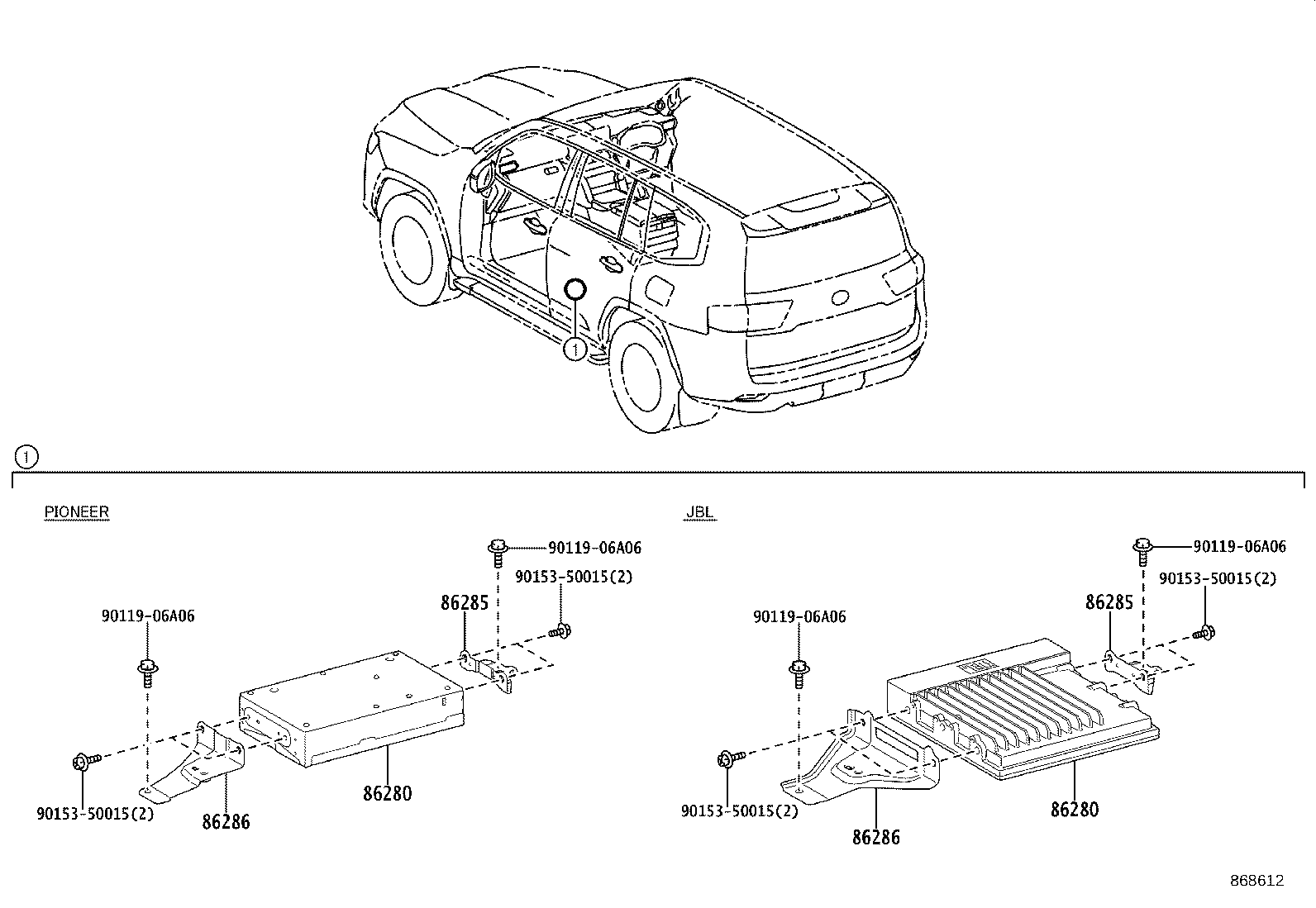

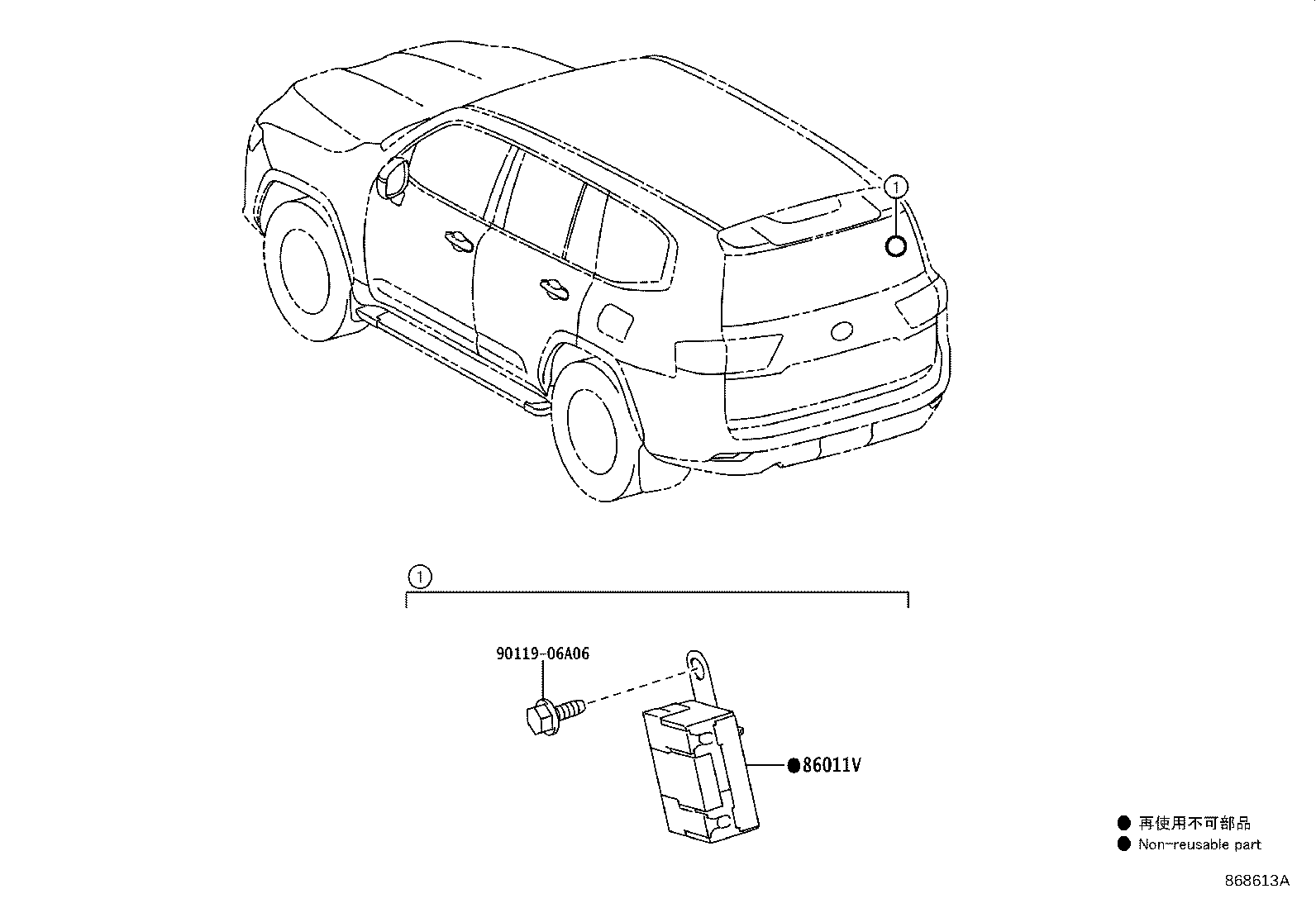

Figure 868611A 868611A 2021-07 → — Figure 868612 868612 2021-07 → — Figure 868613A 868613A 2021-07 → —

Part groups

PNCDescription
86008 Deck Set, Disc Player
86011V Condenser, Radio Setting
86120 Receiver Assy, Radio
86190F Adapter Assy, Stereo Jack
86211P Bracket, Disc Player, NO.1
86212H Bracket, Disc Player, NO.2
86270A Disc Player Assy
86280 Amplifier Assy, Stereo Component
86285 Bracket, Amplifier, NO.1
86286 Bracket, Amplifier, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
