Toyota Land Cruiser

2021-07 → present · chassis FJA300,VJA300 · catalogue 791170 · Japan

Supported model Data version 2021-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

13 part groups · 3 illustrations

Illustrations

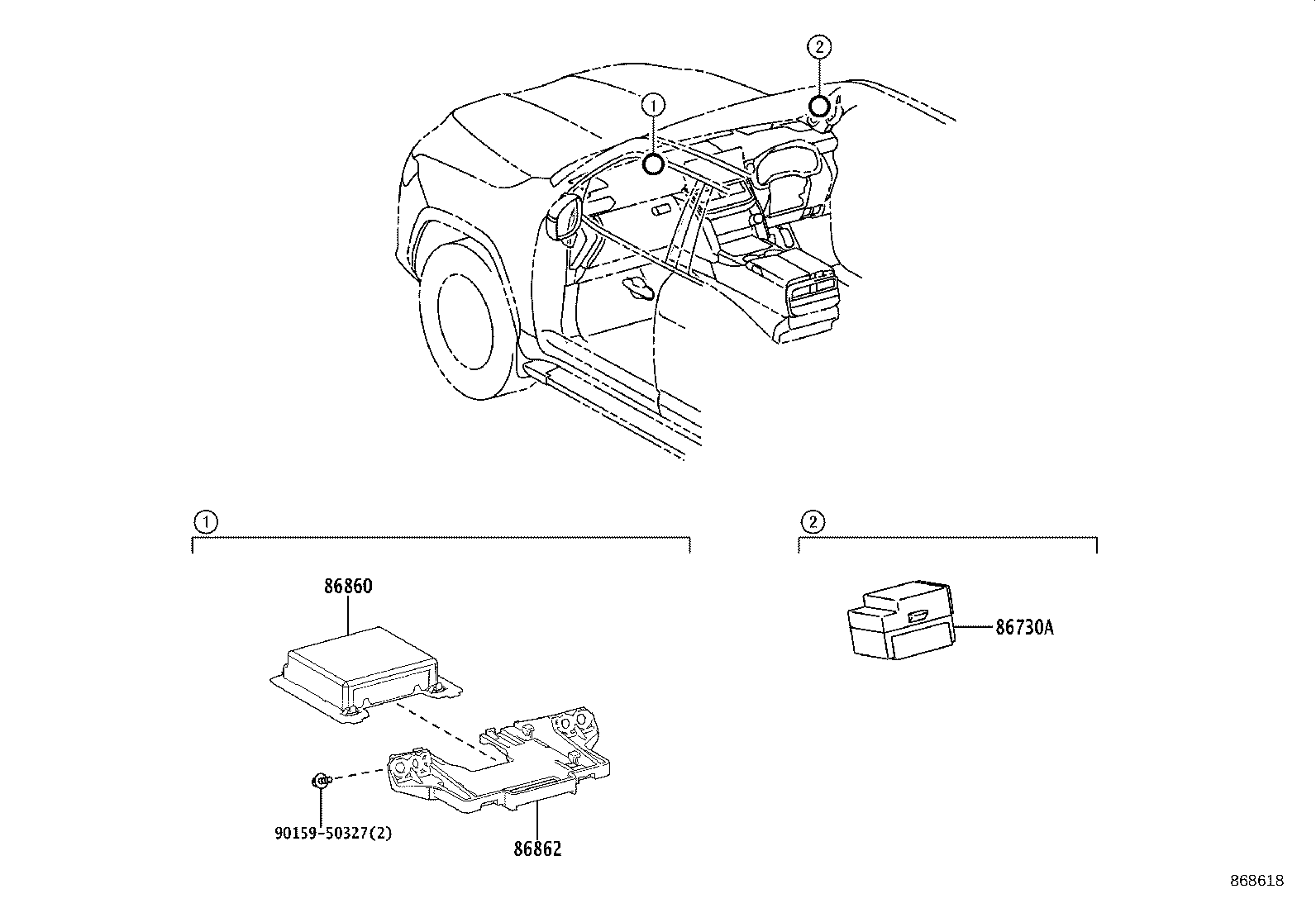

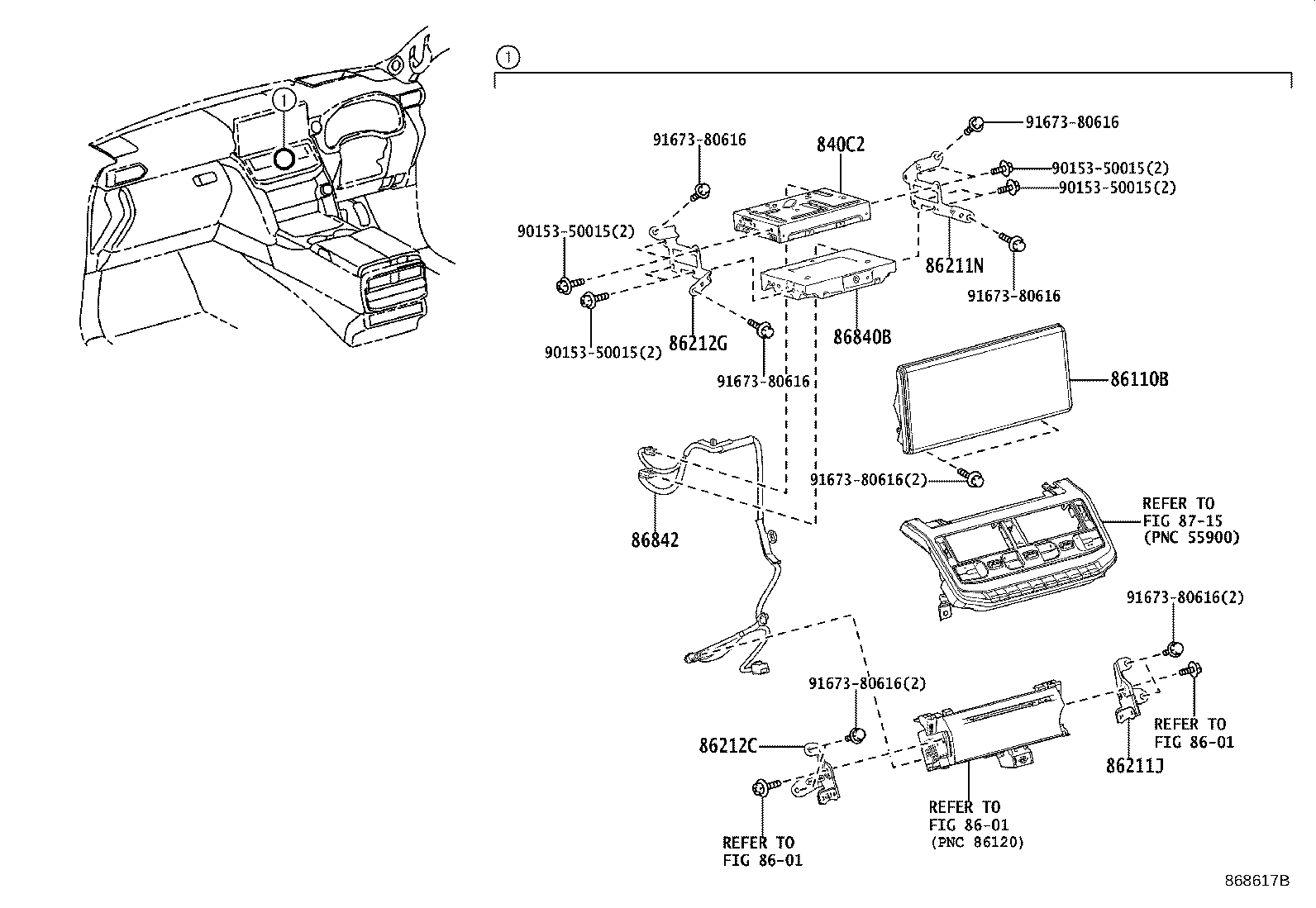

Figure 868616 868616 2021-07 → — Figure 868617B 868617B 2021-07 → — Figure 868618 868618 2021-07 → —

Part groups

PNCDescription
840C2 Control Sub-assy, Integration
86007 Computer Set, Navigation
86110B Multi-display Assy
86140A Receiver Assy, Radio & Display
86211J Bracket, Radio Receiver, NO.1
86211N Bracket, Navigation Computer, NO.1
86212C Bracket, Radio Receiver, NO.2
86212G Bracket, Navigation Computer, NO.2
86730A Microphone Assy, Telephone
86840B Computer Assy, Navigation
86842 Wire, Navigation, NO.1
86860 Antenna Assy, Navigation
86862 Bracket, Navigation Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
