Toyota Land Cruiser

2021-07 → present · chassis FJA300,VJA300 · catalogue 791170 · Japan

Supported model Data version 2021-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Communication & Etc

5 part groups · 3 illustrations

Illustrations

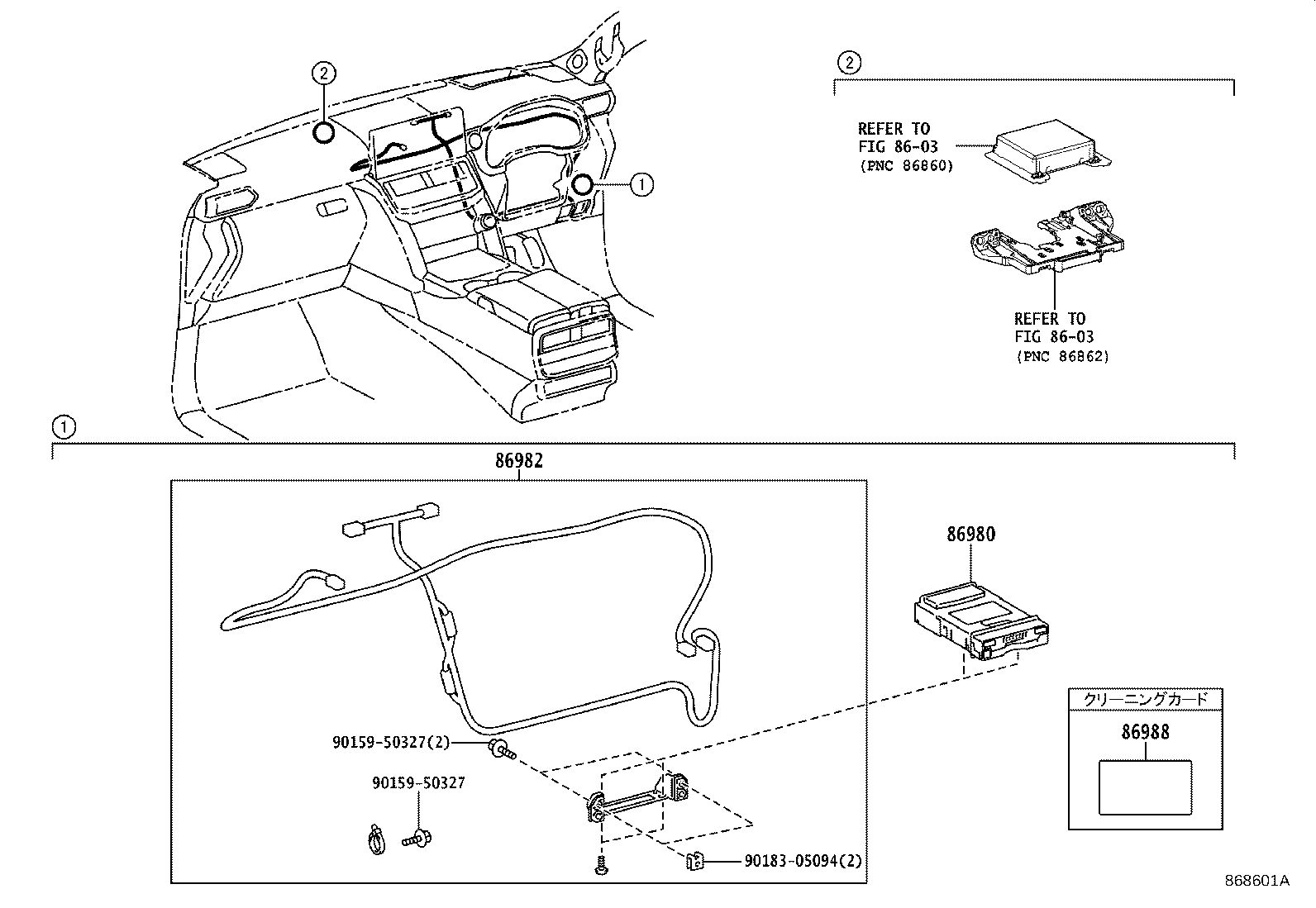

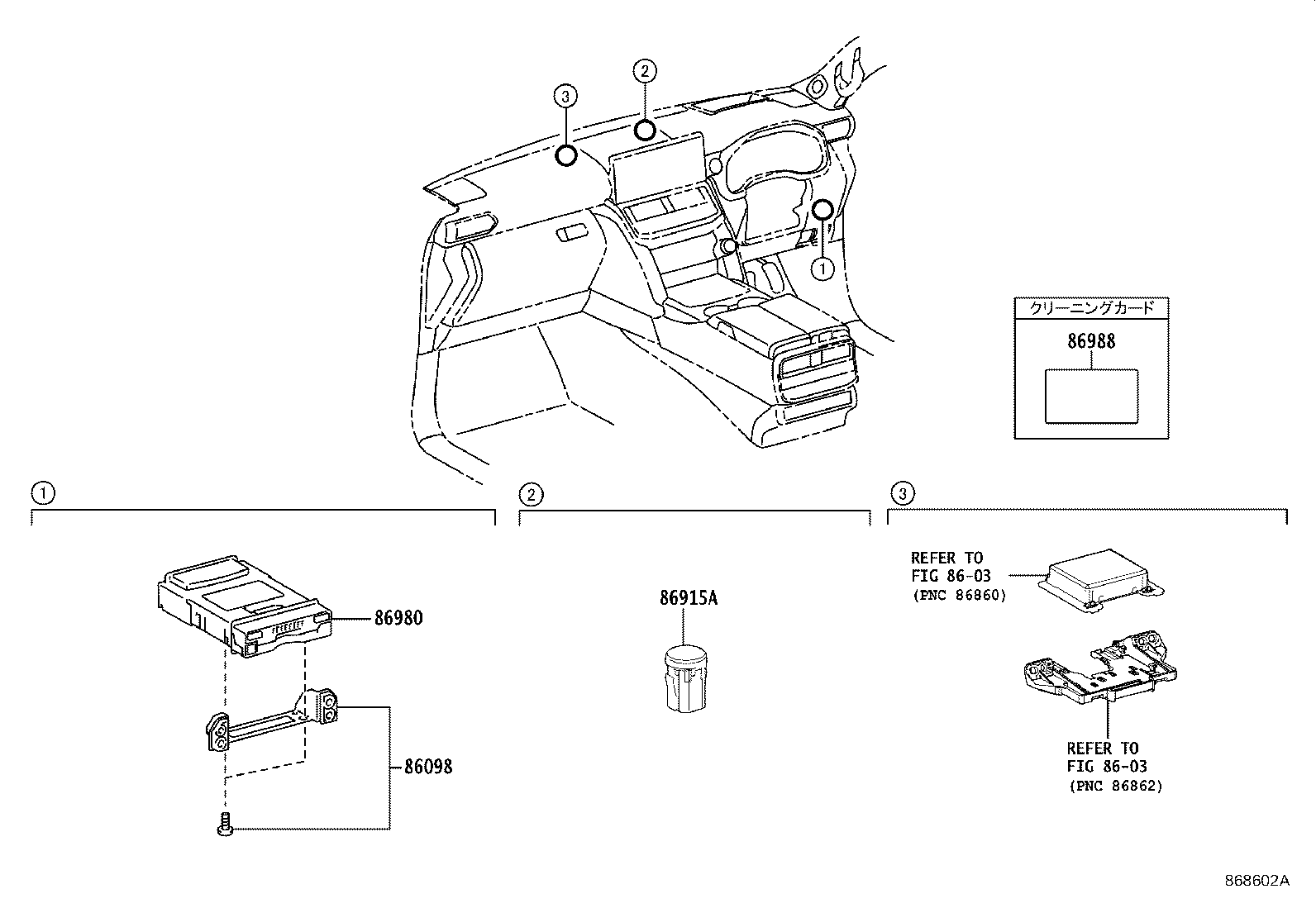

Figure 868600B 868600B 2021-07 → — Figure 868601A 868601A 2021-07 → 2024-11 Figure 868602A 868602A 2021-07 → 2024-11

Part groups

PNCDescription
86098 Accessory Set, Toll Collection
86915A Transceiver, Optical Beacon
86980 Computer Assy, Toll Collection
86982 Wire, Toll Collection
86988 Card, Toll Collection Cleaning
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
