Heating & Air Conditioning - Water Piping

29 part groups · 5 illustrations

Illustrations

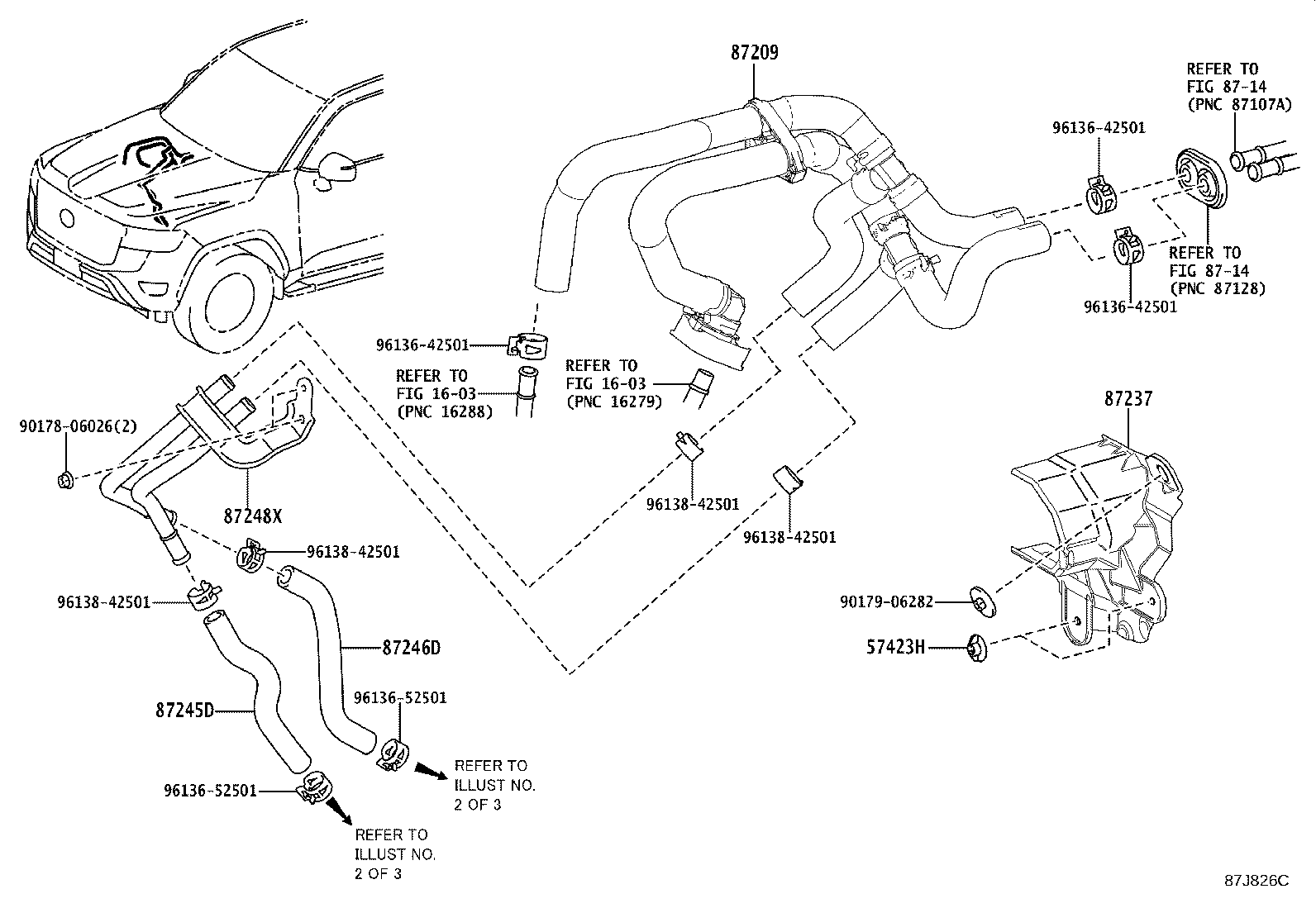

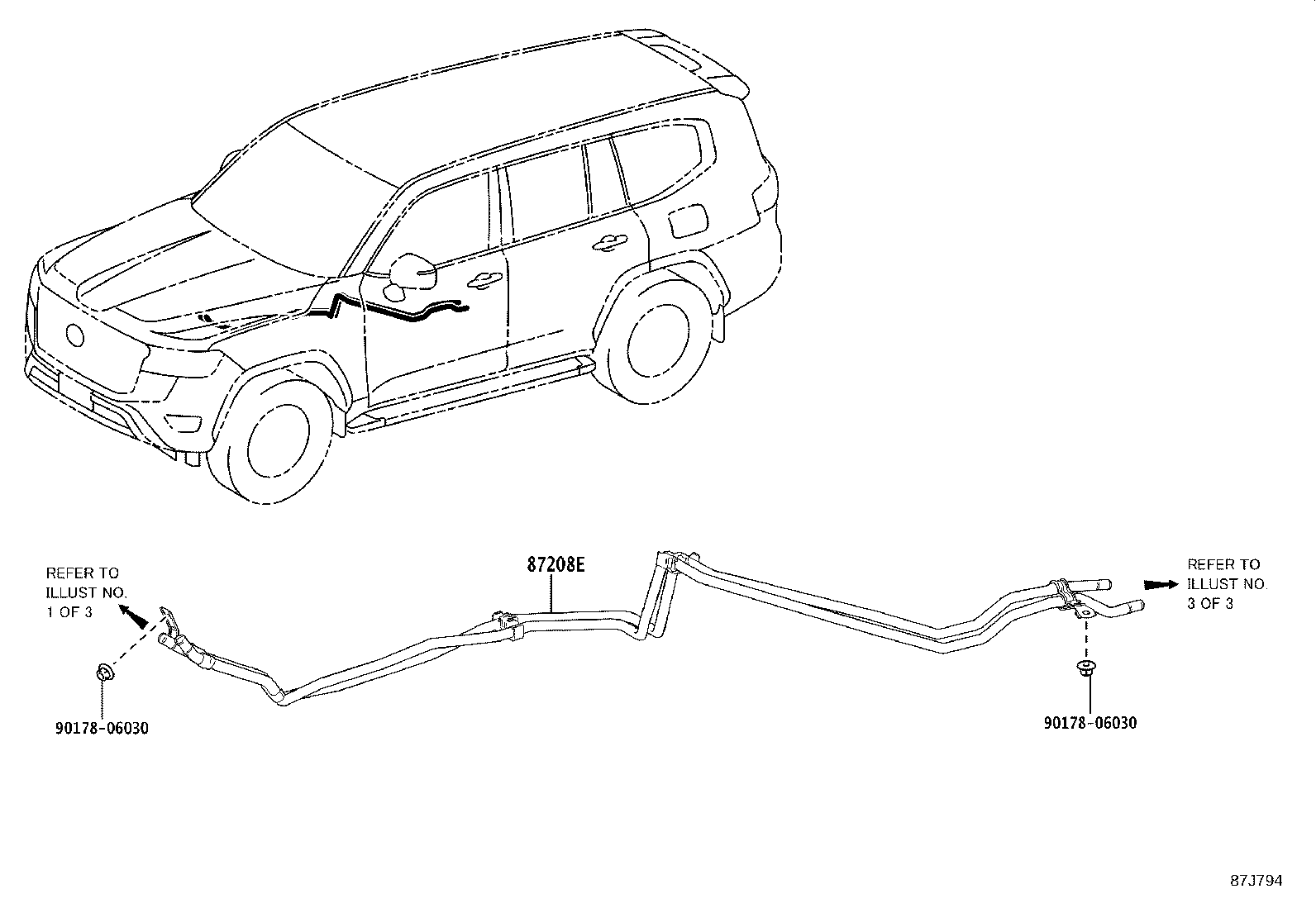

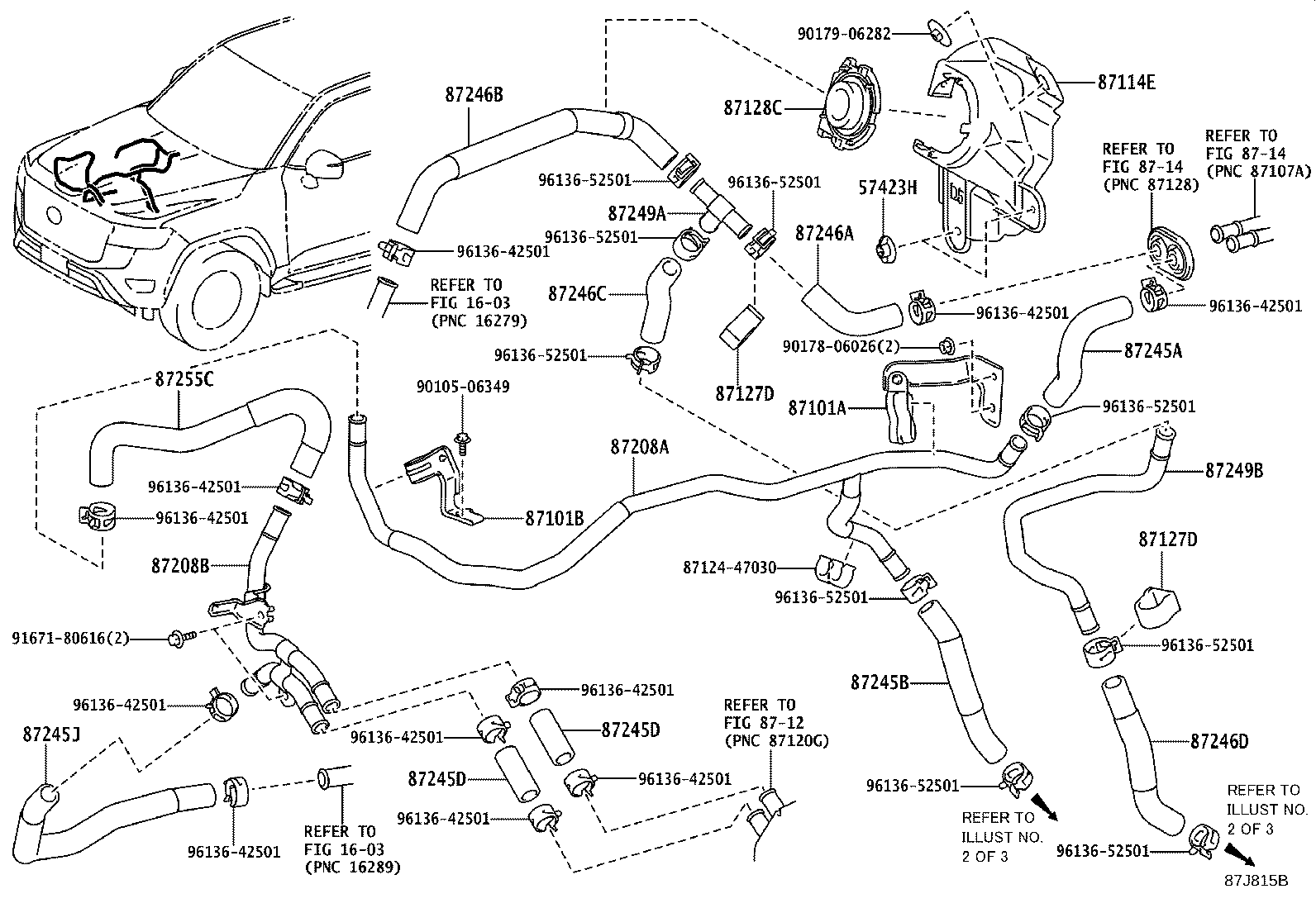

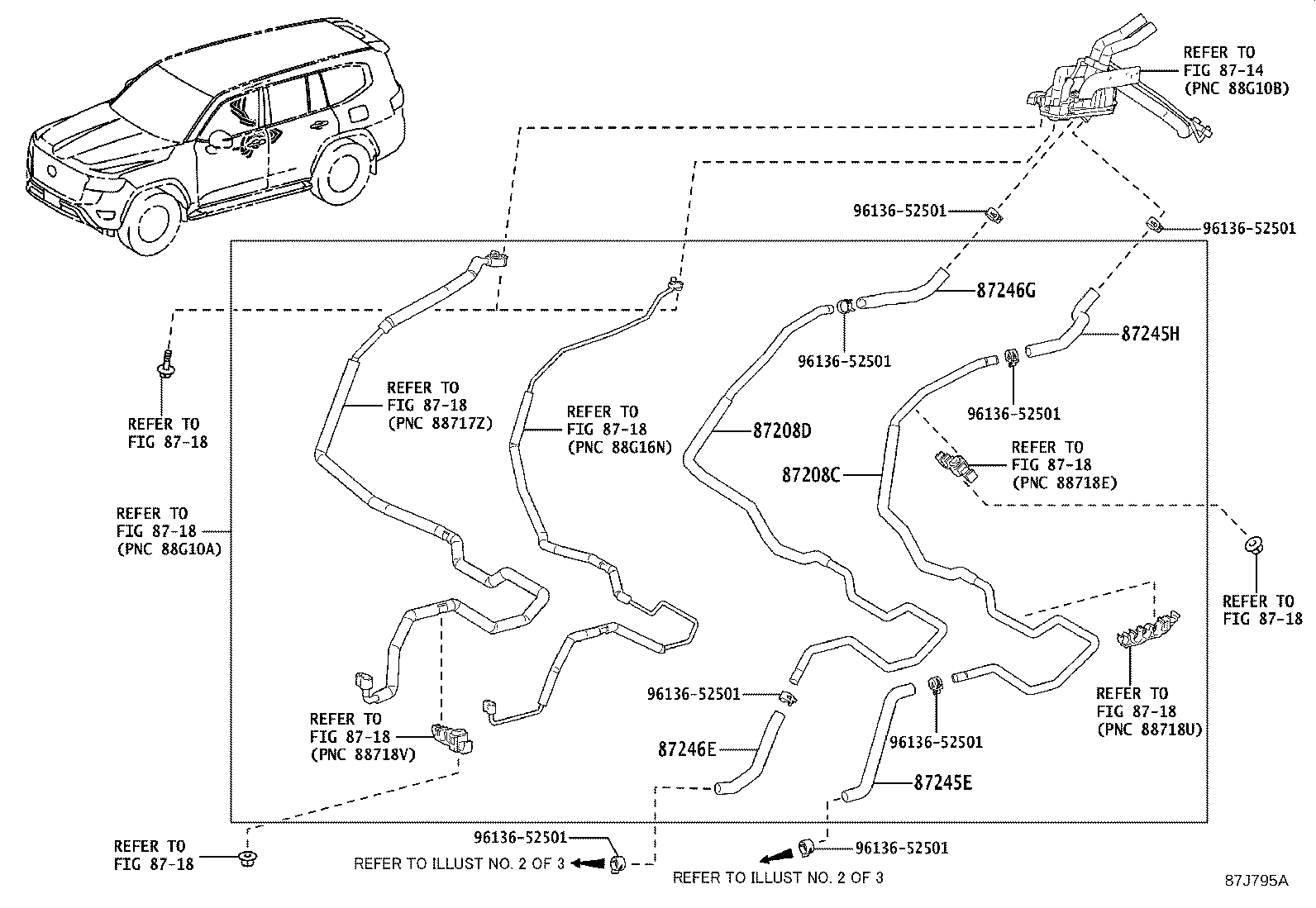

Figure 87J825B 87J825B 2021-07 → — Figure 87J826C 87J826C 2021-07 → — Figure 87J815B 87J815B 2021-07 → — Figure 87J794 87J794 2021-07 → — Figure 87J795A 87J795A 2021-07 → —

Part groups

PNCDescription
57423H Clamp, Heater Cover
87101A Bracket Sub-assy, Heater NO.1
87101B Bracket Sub-assy, Heater NO.2
87114E Cover, Heater, NO.1
87127D Packing, Heater Hose, NO.1
87128C Grommet, Heater, NO.2
87208A Pipe Sub-assy, Heater Water, A
87208B Pipe Sub-assy, Heater Water, B
87208C Pipe Sub-assy, Heater Water, C
87208D Pipe Sub-assy, Heater Water, D
87208E Pipe Sub-assy, Heater Water, E
87209 Hose Sub-assy, Water
87237 Cover, Heater Piping
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245D Hose, Heater Water, Inlet D
87245E Hose, Heater Water, Inlet E
87245H Hose, Heater Water, Inlet H
87245J Hose, Heater Water, Inlet J
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
87246C Hose, Heater Water, Outlet C
87246D Hose, Heater Water, Outlet D
87246E Hose, Heater Water, Outlet E
87246G Hose, Heater Water, Outlet G
87248X Pipe, Heater Water
87249A Pipe, Heater Water Outlet, A
87249B Pipe, Heater Water Outlet, B
87255C Hose, Rear Heater Water Inlet, C
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
