Toyota Lexus LX570

2015-09 → present · chassis URJ201 · catalogue 792160 · Japan

Supported model Data version 2018-08

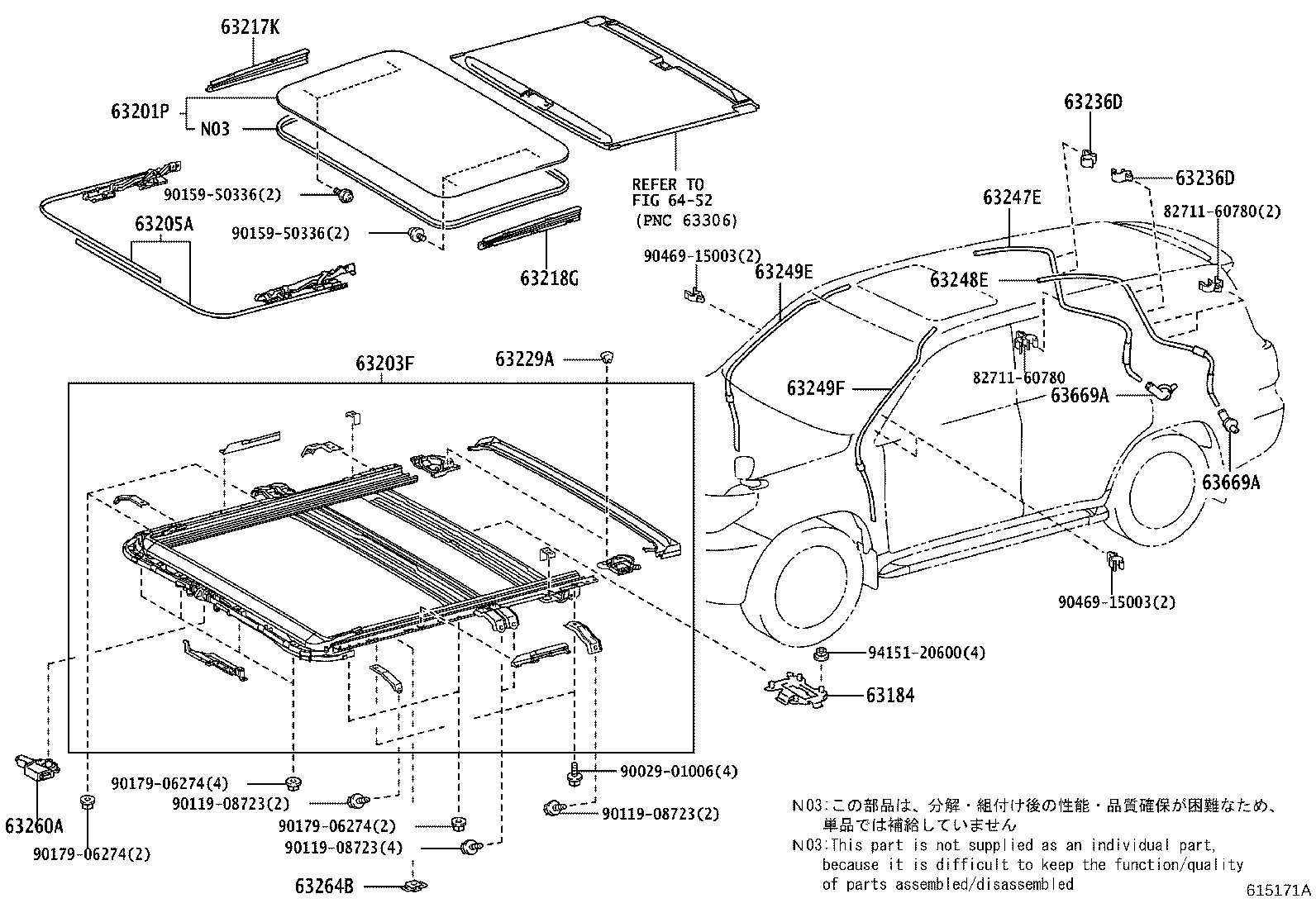

Roof Panel & Back Panel

41 part groups · 3 illustrations

PNC	Description
63102A	Panel Sub-assy, Windshield Header
63104D	Reinforcement Sub-assy, Roof Panel, NO.2
63105A	Frame Sub-assy, Back Door Opening
63111	Panel, Roof
63125	Reinforcement, Roof Panel, NO.2
63129	Protector, Windshield Header
63149B	Reinforcement, Roof Panel, NO.1 Rear
63169B	Plate, Roof Panel Reinforcement, RH
63179	Plate, Roof Panel Reinforcement, LH
63184	Bracket, Roof Console, Rear
63185H	Bracket, Roof Rack
63187A	Bracket, Roof Rack, Rear
63201P	Glass Sub-assy, Sliding Roof
63203F	Housing Sub-assy, Sliding Roof
63205A	Cable Sub-assy, Sliding Roof Drive
63217K	Garnish, Sliding Roof Side, RH
63218G	Garnish, Sliding Roof Side, LH
63229A	Stopper, Sliding Roof Sunshade
63236D	Clamp, Sliding Roof Drain Hose
63247E	Hose, Sliding Roof Drain, Rear RH
63248E	Hose, Sliding Roof Drain, Rear LH
63249E	Hose, Sliding Roof Drain
63249F	Hose, Sliding Roof Drain
63260A	Gear Sub-assy, Sliding Roof Drive
63264B	Plate, Sliding Roof Lock Catch, LH
63407C	Carrier Sub-assy, Roof, RH
63408C	Carrier Sub-assy, Roof, LH
63437A	Seal, Roof Carrier, NO.2
63443B	Protector, Roof Rack, RH
63444A	Protector, Roof Rack, LH
63445	Protector, Roof Carrier, NO.2
63451C	Retainer, Roof Rack, Front RH
63452C	Retainer, Roof Rack, Rear RH
63453F	Retainer, Roof Rack, Front LH
63454F	Retainer, Roof Rack, Rear LH
63479	Retainer, Roof Inner Rack
63486A	Cushion, Roof Rack Leg, Front RH
63487A	Cushion, Roof Rack Leg, Front LH
63488	Cushion, Roof Rack Leg, Rear RH
63489	Cushion, Roof Rack Leg, Rear LH
63669A	Grommet, Sliding Roof Drain

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
