Toyota Lexus LX570

2015-09 → present · chassis URJ201 · catalogue 792160 · Japan

Supported model Data version 2018-08

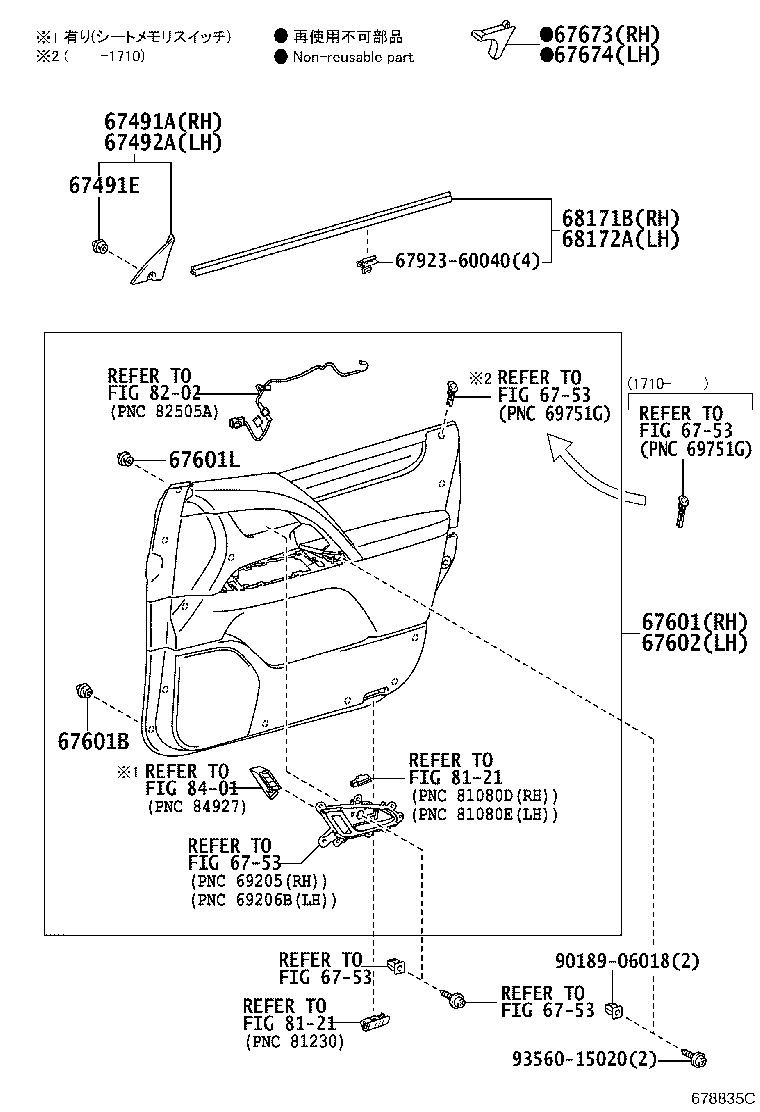

Front Door Panel & Glass

40 part groups · 2 illustrations

PNC	Description
67001	Panel Sub-assy, Front Door, RH
67001A	Cushion, Front Door Panel
67002	Panel Sub-assy, Front Door, LH
67403F	Frame Sub-assy, Front Door, Rear Lower RH
67404F	Frame Sub-assy, Front Door, Rear Lower LH
67491A	Garnish, Front Door Lower Frame Bracket, RH
67491E	Retainer, Door Trim
67492A	Garnish, Front Door Lower Frame Bracket, LH
67601	Board Sub-assy, Front Door Trim, RH
67601B	Clip(FOR FRONT DOOR TRIM BOARD)
67601L	Clip(FOR FRONT DOOR TRIM BOARD)
67602	Board Sub-assy, Front Door Trim, LH
67673	Garnish, Door Frame, Lower RH
67674	Garnish, Door Frame, Lower LH
67831	Cover, Front Door Service Hole, RH
67832	Cover, Front Door Service Hole, LH
67861	Weatherstrip, Front Door, RH
67862	Weatherstrip, Front Door, LH
67867	Clip, Door Weatherstrip
67867C	Retainer, Front Door Weatherstrip, RH
67867G	Retainer, Door Weatherstrip, RH
67868C	Retainer, Front Door Weatherstrip, LH
67868L	Retainer, Door Weatherstrip, LH
67923	Cushion, Front Door Stiffener, NO.1
67923E	Cushion, Front Door Stiffener, NO.1
67924	Cushion, Front Door Stiffener, NO.2
68101	Glass Sub-assy, Front Door, RH
68102	Glass Sub-assy, Front Door, LH
68141E	Run, Front Door Glass, RH
68151E	Run, Front Door Glass, LH
68171B	Weatherstrip, Front Door Glass, Inner RH
68172A	Weatherstrip, Front Door Glass, Inner LH
68610B	Check Assy, Front Door, RH
68620	Check Assy, Front Door, LH
75921C	Tape, Black Out, NO.1 RH
75922M	Tape, Black Out, NO.1 LH
75925B	Tape, Black Out, NO.3 RH
75926A	Tape, Black Out, NO.3 LH
75927B	Tape, Black Out, NO.4 RH
75928B	Tape, Black Out, NO.4 LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
