Toyota Lexus LX570
2015-09 → present · chassis URJ201 · catalogue 792160 · Japan
Supported model
Data version 2018-08

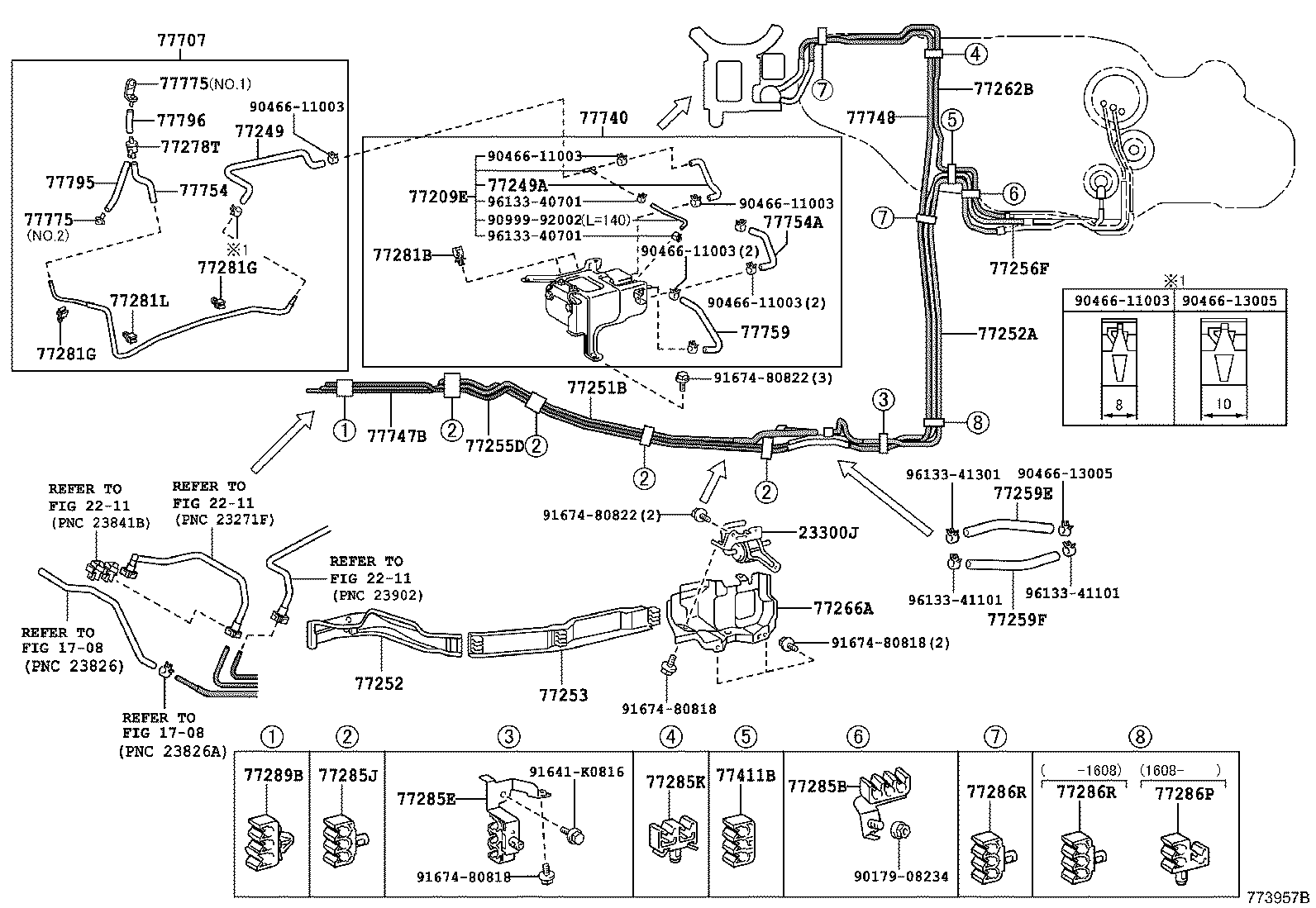

Fuel Tank & Tube
75 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 23070 | Valve Assy, Fuel Main |
| 23221 | Pump, Fuel |
| 23225A | Spacer, Fuel Pump |
| 23280K | Ring, O(FOR FUEL PRESSURE REGULATOR) |
| 23300J | Filter Assy, Fuel |
| 77020A | Tube Assy, Fuel Suction W/Pump & Gage |
| 77024A | Plate Sub-assy, Fuel Suction |
| 77035 | Cable Sub-assy, Fuel Lid Lock Control |
| 77035A | Clamp (FOR FUEL LID LOCK CONTROL CABLE) |
| 77100U | Tank Sub-assy, Fuel |
| 77131C | Sub-tank, Fuel, NO.1 |
| 77144 | Retainer, Fuel Pump Gauge |
| 77169A | Gasket, Fuel Suction Tube Set |
| 77201 | Pipe Sub-assy, Fuel Tank Inlet |
| 77204A | Tube, Fuel Tank Return |
| 77209C | Tube Sub-assy, Fuel Tank Main |
| 77209E | Hose Sub-assy, Fuel Emission |
| 77213B | Hose, Fuel Tank TO Filler Pipe |
| 77241W | Clip, Tube Joint |
| 77249 | Hose, Fuel Emission |
| 77249A | Hose, Fuel Emission |
| 77251B | Tube, Fuel Main |
| 77252 | Protector, Fuel Tube |
| 77252A | Tube, Fuel Main, NO.2 |
| 77253 | Protector, Fuel Tube, NO.2 |
| 77255D | Tube, Fuel Return |
| 77256F | Tube, Fuel Return, NO.2 |
| 77259E | Hose, Fuel |
| 77259F | Hose, Fuel |
| 77262B | Tube, Fuel Tank TO Canister, NO.2 |
| 77266A | Protector, Fuel Tube, NO.1 |
| 77272B | Support, Breather Tube, NO.1 |
| 77277R | Protector, Fuel Tank Filler Pipe |
| 77278C | Protector, Fuel Tank Filler Pipe, NO.2 |
| 77278T | Valve, Check With Hose |
| 77281B | Clamp, Fuel Hose(FOR REAR FUEL MAIN) |
| 77281G | Clamp, Fuel Hose |
| 77281L | Clamp, Fuel Hose |
| 77285B | Clamp, Fuel Tube W/Grommet, NO.1 |
| 77285D | Clamp, Fuel Tube, NO.1 |
| 77285E | Clamp, Fuel Tube W/Grommet, NO.1 |
| 77285F | Clamp, Fuel Tube, NO.1 |
| 77285J | Clamp, Fuel Tube, NO.1 |
| 77285K | Clamp, Fuel Tube, NO.1 |
| 77286P | Clamp, Fuel Tube, NO.8 |
| 77286R | Clamp, Fuel Tube, NO.10 |
| 77289B | Clamp, Fuel Tube, NO.3 |
| 77291A | Shield, Fuel Tank Filler Pipe |
| 77306 | Lever Sub-assy, Fuel Lid Lock Open |
| 77310A | Cap Assy, Fuel Tank |
| 77316 | Gasket, Fuel Tank Cap |
| 77350 | Lid Assy, Fuel Filler Opening |
| 77366 | Spring, Fuel Filler Opening Lid Hinge |
| 77371L | Ring, Fuel Tank Filler Pipe Shield |
| 77377 | Retainer, Fuel Filler Opening Lid Lock |
| 77391A | Ring, Fuel Inlet Box |
| 77411B | Support, Fuel Tube Grommet, NO.1 |
| 77512 | Bracket, Fuel Tank, Rear |
| 77601A | Band Sub-assy, Fuel Tank, NO.1 |
| 77603A | Band Sub-assy, Fuel Tank, NO.2 |
| 77606 | Protector Sub-assy, Fuel Tank, NO.1 |
| 77611E | Pin, Fuel Tank Band |
| 77644 | Bolt, Fuel Tank |
| 77697 | Insulator, Fuel Tank Heat, NO.1 |
| 77707 | Tube Sub-assy, Charcoal Canister Outlet |
| 77740 | Canister Assy, Charcoal |
| 77747B | Tube, Charcoal Canister, NO.1 |
| 77748 | Pipe, Charcoal Canister, NO.2 |
| 77754 | Hose, Charcoal Canister Outlet, NO.1 |
| 77754A | Hose, Charcoal Canister Outlet, NO.2 |
| 77759 | Hose, Charcoal Canister |
| 77775 | Guide, Charcoal Canister Outlet |
| 77785 | Harness, Fuel Pump |
| 77795 | Hose, Charcoal Canister Outlet, NO.2 |
| 77796 | Hose, Charcoal Canister Outlet, NO.3 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
