Toyota Lexus LX570

2015-09 → present · chassis URJ201 · catalogue 792160 · Japan

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Interior Lamp

18 part groups · 2 illustrations

Illustrations

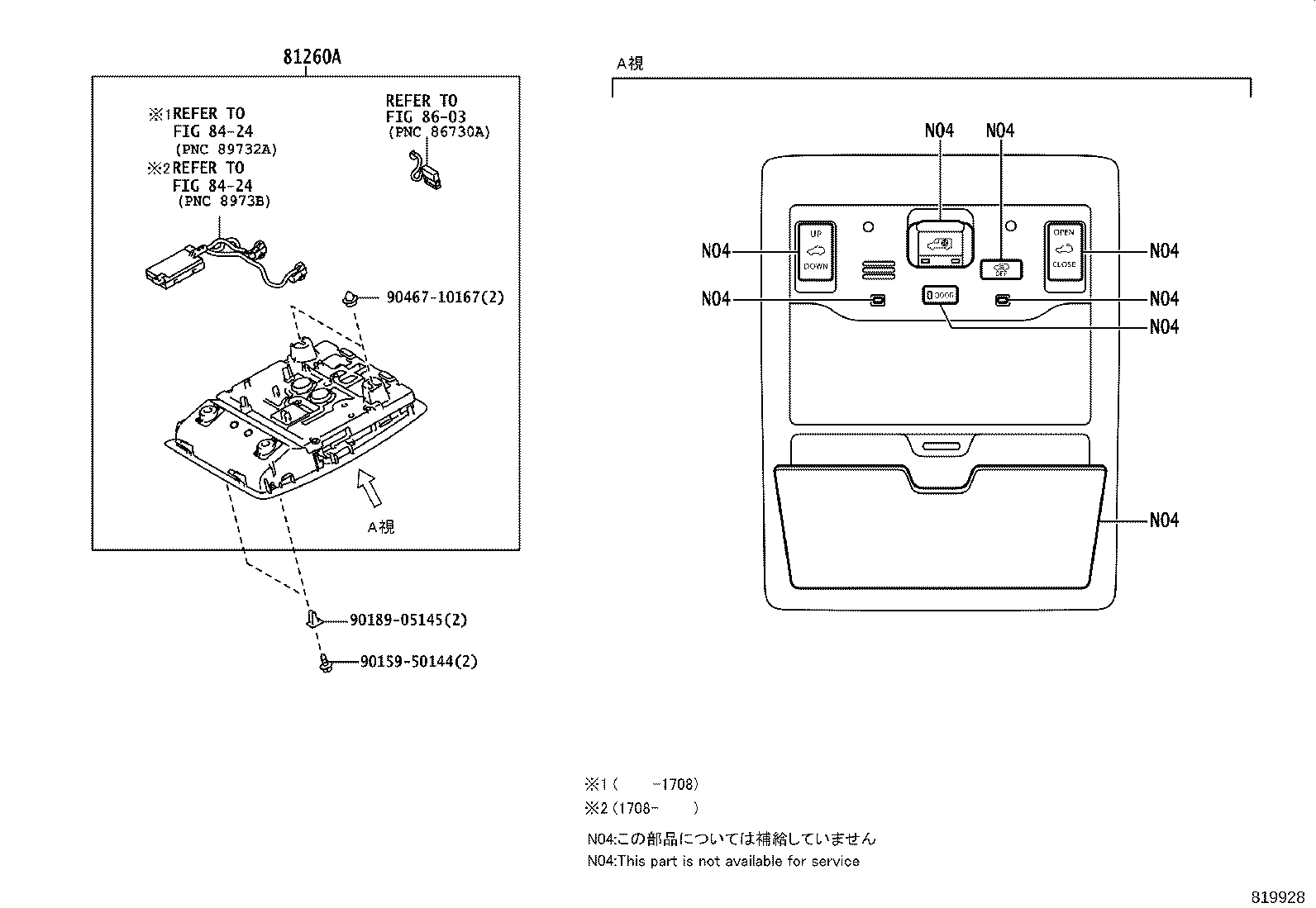

Figure 817592F 817592F 2015-09 → — Figure 819928 819928 2015-09 → —

Part groups

PNCDescription
35959B Led(FOR VANITY LAMP)
81080D Lamp Assy, Front Door Inside Handle Illumination, RH
81080E Lamp Assy, Front Door Inside Handle Illumination, LH
81080F Lamp Assy, Rear Door Inside Handle Illumination, RH
81080G Lamp Assy, Rear Door Inside Handle Illumination, LH
81080J Lamp Assy, Interior Illumination, NO.1
81080P Lamp Assy, Interior Illumination, NO.1 RH
81080R Lamp Assy, Interior Illumination, NO.1 RH
81080S Lamp Assy, Interior Illumination, NO.1 LH
81230 Lamp Assy, Courtesy
81240 Lamp Assy, Room, NO.1
81260 Lamp Assy, Glove Box
81260A Lamp Assy, Map
81290 Lamp Assy, Room, NO.3
81330 Lamp Assy, Luggage Compartment, NO.1
81340B Bulb (FOR VANITY LAMP)
81380D Lamp Assy, Step
81380H Lamp Assy, Step
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
