Toyota Lexus LX570
2015-09 → present · chassis URJ201 · catalogue 792160 · Japan
Supported model
Data version 2018-08
Switch & Relay & Computer
120 part groups · 10 illustrations
Part groups
| PNC | Description |
|---|---|
| 28300 | Relay Assy, Starter |
| 28371 | Relay, Ignition, NO.1 |
| 81980 | Flasher Assy, Turn Signal |
| 81985 | Relay, Towing Converter |
| 82210J | Fusible Link |
| 82210N | Instrument Panel Fusible Link |
| 82600E | Engine Room Fuse |
| 82600F | Fuse, Fuse Block |
| 82610A | Block Assy, Fuse |
| 82616 | Puller, Fuse |
| 82620B | Block Assy, Fusible Link |
| 82620D | Block Assy, Fusible Link |
| 82641C | Relay, Integration NO.2 |
| 82660B | Block Assy, Relay |
| 82660C | Block Assy, Relay |
| 82660H | Block Assy, Relay |
| 82660J | Block Assy, Relay |
| 82661 | Cover, Relay Block, NO.1 |
| 82663 | Cover, Relay Block, Lower |
| 82672A | Cover, Junction Block |
| 82673A | Bracket, Junction Block, NO.1 |
| 82673B | Bracket, Junction Block, NO.2 |
| 82673C | Bracket, Junction Block |
| 82731A | Block, Cowl Side Junction, RH |
| 82733A | Block, Cowl Side Junction, LH |

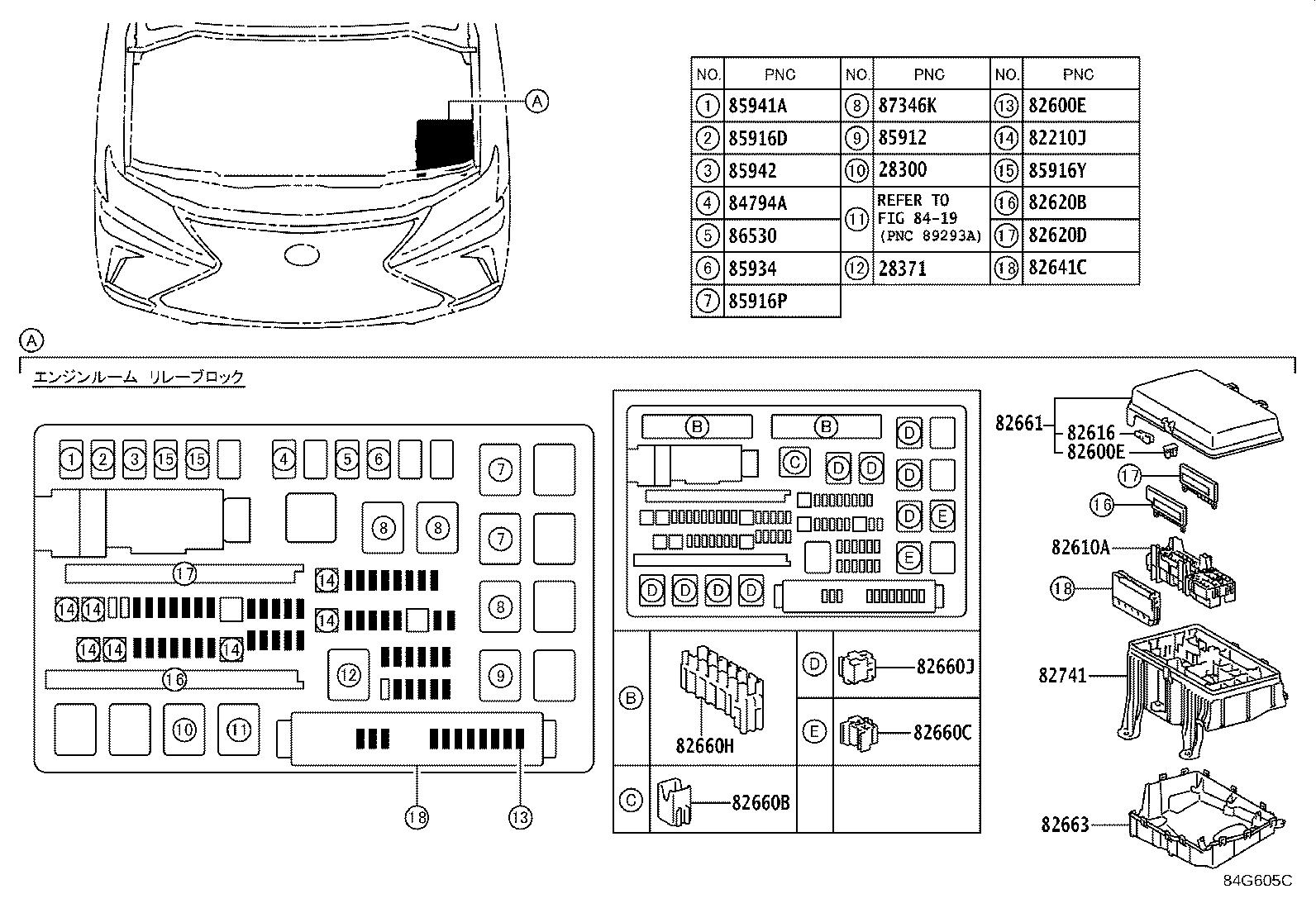

| 82741 | Block, Engine Room Relay |
| 83320 | Gage Assy, Fuel Sender |
| 83520 | Gage Assy,Oil Pressure Sender |
| 83650 | Fusee |
| 83910G | Clock Assy |
| 84010D | Control & Panel Assy, Integration |
| 84040 | Master Switch Assy,Multiplex Network |
| 840A0 | Switch Assy, Power Window Master, W/Bezel |
| 840B0 | Switch Assy, Power Window W/Bezel |
| 840B0A | Switch Assy, Power Window W/Bezel, Rear |
| 84119 | Rheostat, Light Control |
| 84140 | Switch Assy, Headlamp Dimmer |
| 84190 | Switch Assy, Fold Seat |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84234 | Switch Assy, Courtesy Lamp (FOR REAR DOOR) |
| 84250A | Switch Assy, Steering Pad |
| 84306 | Cable Sub-assy, Spiral |
| 84307 | Cable Sub-assy, Spiral W/Sensor |
| 84340 | Switch Assy, Stop Lamp |
| 84345 | Adjuster, Stop Lamp Switch Mounting |
| 84390B | Switch Assy, Electric Parking Brake |
| 84480F | Switch Assy, Main |
| 84523 | Wire, Switch NO.1 |
| 84540 | Switch Assy, Neutral Start |
| 84610F | Switch Assy, Transmission Shift |
| 84650 | Switch Assy, Windshield Wiper |
| 84656A | Bezel, Switch |
| 84746 | Switch, Tire Pressure Warning |
| 84752 | Switch, Refreshing Seat |
| 84770A | Switch Assy, Pre-collision System Cancel |
| 84794A | Relay, FR Wiper Deicer |
| 84810 | Switch Assy, Power Window Regulator |
| 84810D | Switch Assy, Power Window Regulator, Rear |
| 84840G | Switch Assy, Back Door Opener |
| 84920 | Switch Assy, Power Seat |
| 84921A | Knob, Power Seat Switch (FOR RECLINING) |
| 84921B | Knob, Power Seat Switch (FOR SLIDE & VERTICAL) |
| 84922B | Switch, Front Power Seat, RH |
| 84922C | Switch, Front Power Seat, LH |
| 84923 | Switch, Rear Power Seat |
| 84927 | Switch, Seat Memory |
| 84928 | Switch, Seat Variable Cushion |
| 84931B | Switch, Door Control |
| 84931C | Switch, Back Door Control |
| 84965 | Switch, Power Back Door Main |
| 84970 | Switch Assy, Combination |
| 84970E | Switch Assy, Combination NO.2 |
| 85530D | Socket Assy, Power Outlet, NO.2 |
| 85530E | Socket Assy, Power Outlet, NO.3 |
| 85531 | Socket, Power Outlet |
| 85535D | Cover, Power Outlet Socket, Center |
| 85535E | Cover, Power Outlet Socket, NO.2 |
| 85536 | Bezel, Power Outlet Socket |
| 85539 | Label, Power Outlet Notice |
| 85903 | Computer Sub-assy, Shift Lock Control |
| 85912 | Relay, Defogger |
| 85916D | Relay, Fog Lamp |
| 85916P | Relay, Headlamp |
| 85916Y | Relay, Towing Tail |
| 85934 | Relay, Magnet-clutch |
| 85940 | Relay Assy, Windshield Wiper |
| 85941A | Relay, Rear Windshield Washer |
| 85942 | Relay, Headlamp Cleaner Control |
| 8598A | Battery, Door Control |
| 86210A | Inverter Assy, Voltage |
| 86530 | Relay Assy, Horn |
| 87346K | Relay, Ptc Heater |
| 88150A | Computer Assy, Driving Support |
| 88161 | Bracket, Blind Spot Monitor, RH |
| 88162 | Sensor, Blind Spot Monitor, RH |
| 88171 | Bracket, Blind Spot Monitor, LH |
| 88172 | Sensor, Blind Spot Monitor, LH |
| 89050 | Computer Assy, Parking Brake |
| 89111 | Computer, Network Gateway |
| 89181A | Computer, Steering Control |
| 89221 | Computer, Multiplex Network Body |
| 89226B | Computer, Multiplex Network Body, NO.2 |
| 89227 | Computer, Multiplex Tilt & Telescopic |
| 89235A | Switch, Tilt & Telescopic |
| 89245B | Sensor, Steering |
| 89430 | Computer Assy, Outer Mirror Control |
| 89465 | Sensor, Oxygen |
| 89465A | Sensor, Oxygen NO.2 |
| 89467B | Sensor, Air Fuel Ratio |
| 89491 | Sensor, Engine Oil Level |
| 89491A | Gasket, Engine Oil Level Sensor |
| 89530C | Computer Assy, Transmission Control |
| 89533 | Computer, 4 Wheel Drive Control |
| 895A0 | Relay Assy, Stop Lamp Control |
| 89611 | Switch, Push Start |
| 89615 | Sensor, Knock Control |
| 89650 | Computer Assy, Power Steering |
| 89715 | Computer, Fold Seat Control |
| 89747E | Buzzer, Power Back Door Warning |
| 89747F | Buzzer, Blind Spot Monitor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
