Toyota Lexus LX570

2015-09 → present · chassis URJ201 · catalogue 792160 · Japan

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

11 part groups · 2 illustrations

Illustrations

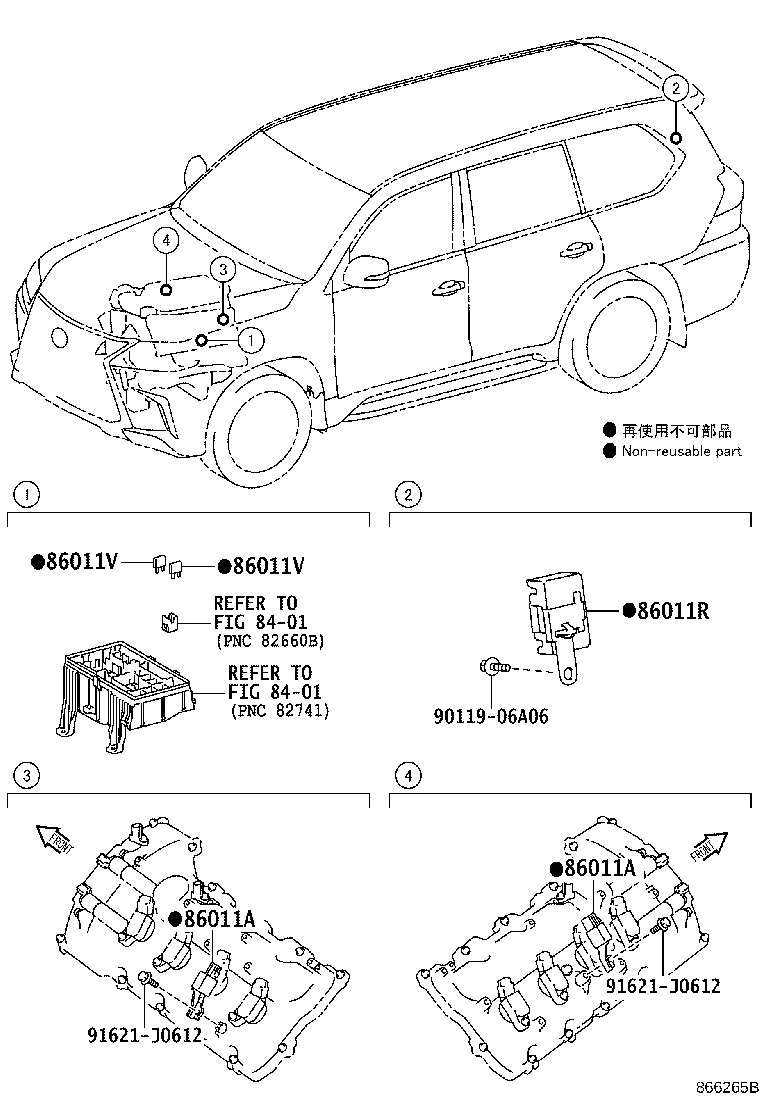

Figure 866264B 866264B 2015-09 → — Figure 866265B 866265B 2015-09 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86011R Condenser, Radio Setting
86011V Condenser, Radio Setting
86130A Receiver Assy, Multi-media Module
86190C Adapter Assy, Stereo Jack, NO.1
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86280 Amplifier Assy, Stereo Component
86285 Bracket, Amplifier, NO.1
86286 Bracket, Amplifier, NO.2
86287B Cover, Amplifier
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
