Heating & Air Conditioning - Cooler Piping

26 part groups · 3 illustrations

Illustrations

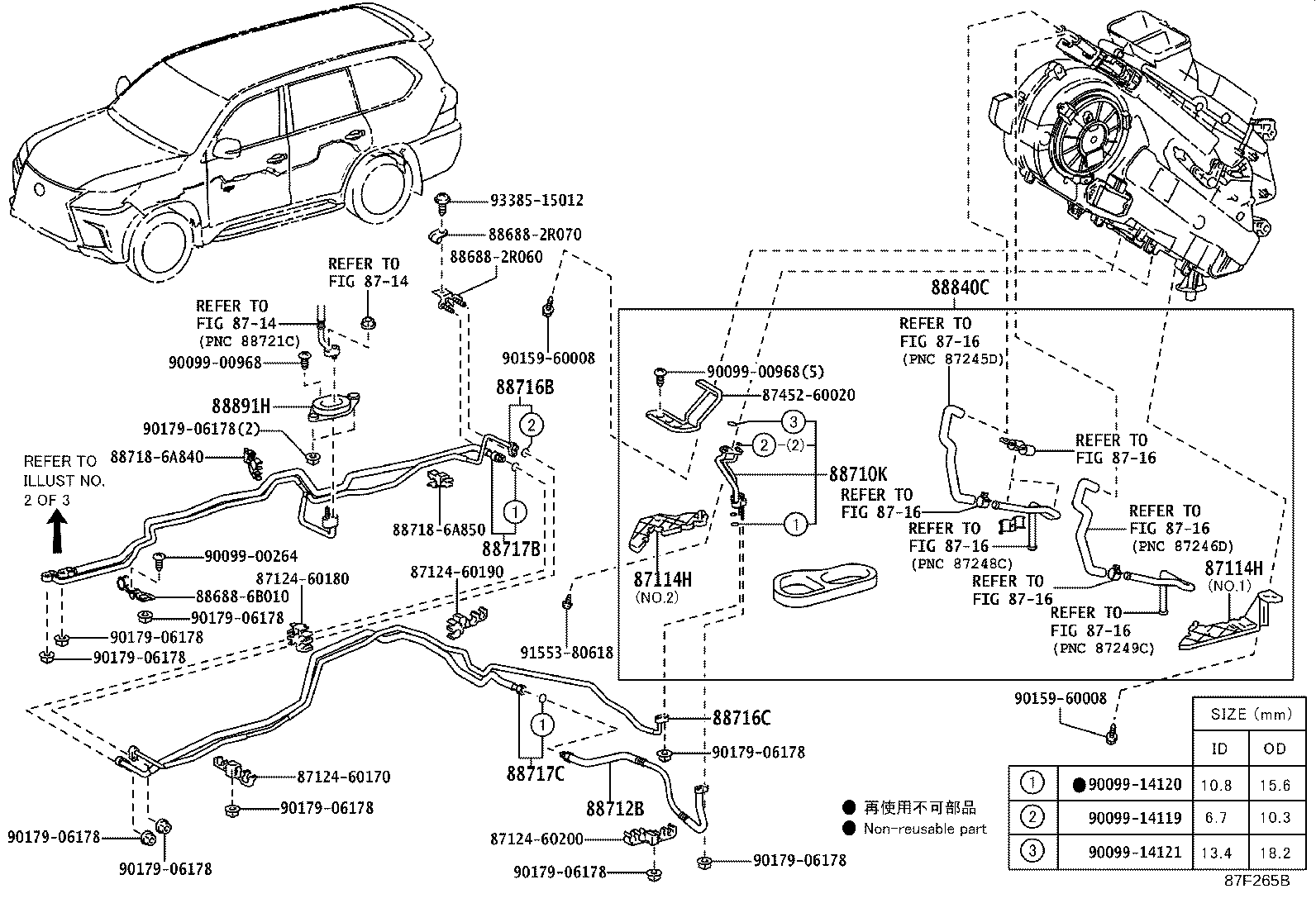

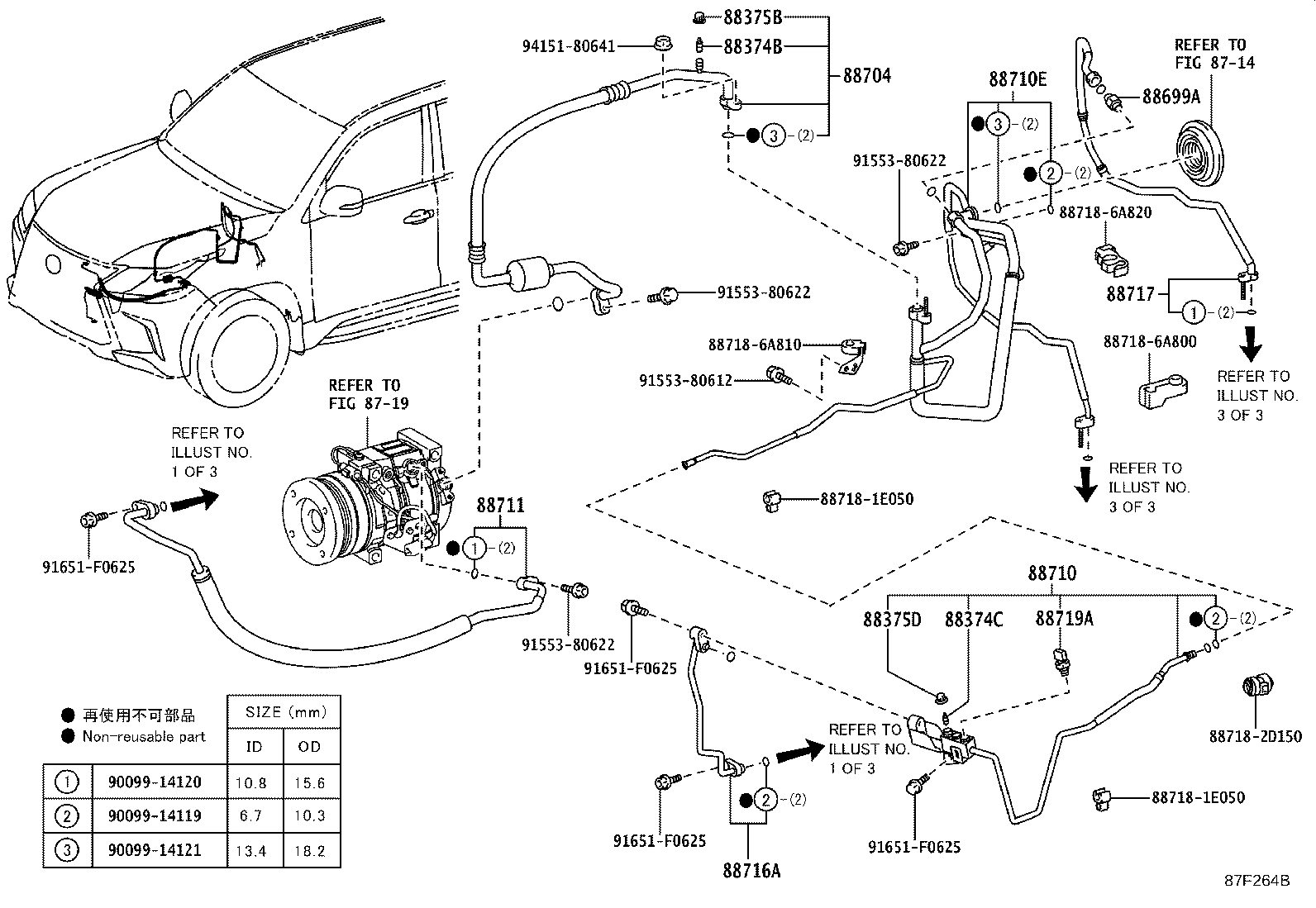

Figure 879734D 879734D 2015-09 → — Figure 87F264B 87F264B 2015-09 → — Figure 87F265B 87F265B 2015-09 → —

Part groups

PNCDescription
87114H Cover, Heater
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88460 Condenser Assy, Cooler
88467 Cushion, Cooler Condenser, NO.1
88467A Cushion, Cooler Condenser, NO.2
88469D Collar, Condenser Bracket, NO.1
88474 Dryer, Cooler
88699A Valve, Air
88704 Hose Sub-assy, Suction
88710 Tube Assy, Air Conditioner
88710E Tube & Accessory Assy, Air Conditioner
88710K Tube & Accessory Assy, Air Conditioner, NO.3
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712B Hose, Cooler Refrigerant Suction
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88717 Pipe, Cooler Refrigerant Suction, NO.1
88717B Pipe, Cooler Refrigerant Suction, B
88717C Pipe, Cooler Refrigerant Suction, C
88719A Sensor, Air Conditioner Pressure
88840C Accessory Assy, Air Conditioner, NO.1
88891H Cover, Cooler, NO.1
