Exploded illustration 11G293A 1701 — not listed in this catalogue 11103C — HOUSING SUB-ASSY, CAMSHAFT, RH (2 parts) 1110A — HEAD SUB-ASSY, CYLINDER, RH (1 parts) 11115A — PIN, RING (1 parts) 11115B — GASKET, CYLINDER HEAD, RH (1 parts) 11117J — GASKET(FOR CYLINDER HEAD SCREW PLUG) (1 parts) 11117J — GASKET(FOR CYLINDER HEAD SCREW PLUG) (1 parts) 11117P — PLUG, W/HEAD STRAIGHT SCREW, RH NO.1 (1 parts) 11117Q — PLUG, W/HEAD STRAIGHT SCREW, RH NO.2 (1 parts) 11117Q — PLUG, W/HEAD STRAIGHT SCREW, RH NO.2 (1 parts) 11122C — BUSH, INTAKE VALVE GUIDE, RH (2 parts) 11126C — BUSH, EXHAUST VALVE GUIDE, RH (2 parts) 11135B — SEAT, EXHAUST VALVE, RH (2 parts) 11135B — SEAT, EXHAUST VALVE, RH (2 parts) 11151 — PIN, RING(FOR CAMSHAFT BEARING CAP SETTING RH) (1 parts) 11151 — PIN, RING(FOR CAMSHAFT BEARING CAP SETTING RH) (1 parts) 12108A — GASKET(FOR OIL FILLER CAP) (1 parts) 12180E — CAP ASSY, OIL FILLER (1 parts) 12281A — HANGER, ENGINE, NO.1 (1 parts) 17941A — GUIDE, INTERCOOLER AIR, NO.1 (1 parts) 9010506359 — not listed in this catalogue 9010506359 — not listed in this catalogue 9011907009 — not listed in this catalogue 23476A — HOUSING, FUEL PUMP LIFTER, RH (1 parts) 9025311005 — not listed in this catalogue 91551G0840 — not listed in this catalogue 91551G0865 — not listed in this catalogue 91552F1040 — not listed in this catalogue 11155B — PIN, RING (1 parts) 11101E — SENSOR, CAM POSITION (1 parts) 11101Z — O RING, CAM POSITION SENSOR (1 parts) 11101E — SENSOR, CAM POSITION (1 parts) 11101Z — O RING, CAM POSITION SENSOR (1 parts) 11101A — BOLT(FOR CYLINDER HEAD SET) (2 parts) 11101A — BOLT(FOR CYLINDER HEAD SET) (2 parts) 11101B — WASHER, PLATE(FOR CYLINDER HEAD SET) (1 parts) 11159F — GASKET, CAMSHAFT BEARING CAP OIL HOLE, RH (1 parts)

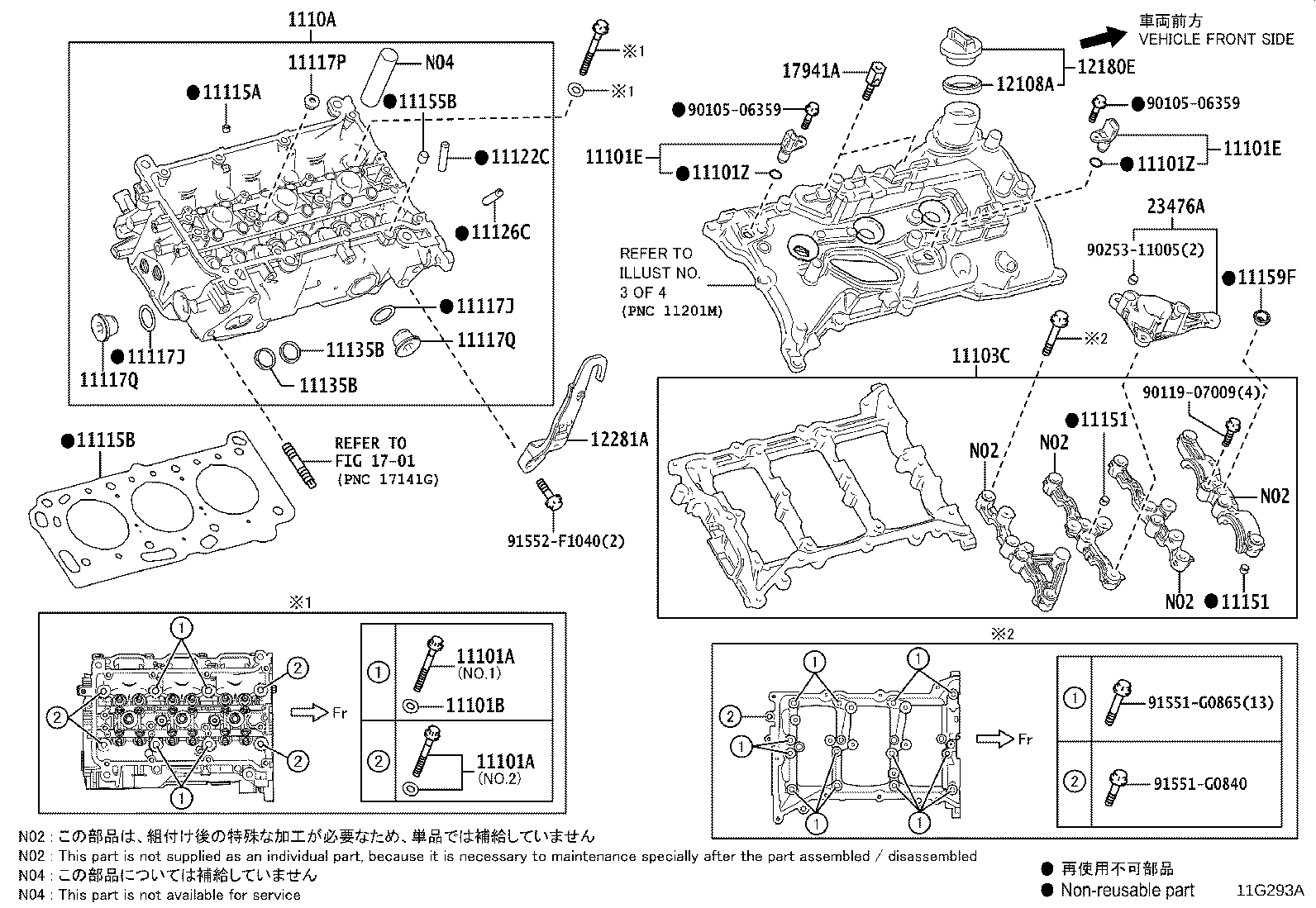

11G293A · 29 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
27 parts on this figure
Part number Description Fitment Price
11101A — Bolt(FOR CYLINDER HEAD SET)
90910-02201 note Bolt(FOR CYLINDER HEAD SET)
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥360
90910-02212 note Bolt(FOR CYLINDER HEAD SET)
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥310
11101B — Washer, Plate(FOR CYLINDER HEAD SET)
90201-12079 Washer, Plate(FOR CYLINDER HEAD SET)
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥100
11101E — Sensor, Cam Position
90919-05096 Sensor, Cam Position
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥4,130
11101Z — O Ring, Cam Position Sensor
90301-11038 O Ring, Cam Position Sensor
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥0
11103C — Housing Sub-assy, Camshaft, RH
11103-70030 Housing Sub-assy, Camshaft, RH
2021-12 → 2023-12 ended
V35AFTS VJA310 ¥19,700
11103-70031 Housing Sub-assy, Camshaft, RH
2024-01 → 2024-11 ended
V35AFTS VJA310 ¥17,900
1110A — Head Sub-assy, Cylinder, RH
11101-79335 Head Sub-assy, Cylinder, RH
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥104,000
11115A — Pin, Ring
90253-11021 Pin, Ring
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥120
11115B — Gasket, Cylinder Head, RH
11115-70070 Gasket, Cylinder Head, RH
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥7,800
11117J — Gasket(FOR CYLINDER HEAD SCREW PLUG)
16258-36110 Gasket(FOR CYLINDER HEAD SCREW PLUG)
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥270
11117P — Plug, W/Head Straight Screw, RH NO.1
90341-14015 Plug, W/Head Straight Screw, RH NO.1
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥120
11117Q — Plug, W/Head Straight Screw, RH NO.2
90341-27010 Plug, W/Head Straight Screw, RH NO.2
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥310
11122C — Bush, Intake Valve Guide, RH
11122-31090 note Bush, Intake Valve Guide, RH
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥550
11123-31090 note Bush, Intake Valve Guide, RH
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥550
11126C — Bush, Exhaust Valve Guide, RH
11126-80010 note Bush, Exhaust Valve Guide, RH
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥550
11127-80010 note Bush, Exhaust Valve Guide, RH
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥550
11135B — Seat, Exhaust Valve, RH
11135-70060 note Seat, Exhaust Valve, RH
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥770
11136-70060 note Seat, Exhaust Valve, RH
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥770
11151 — Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING RH)
90253-11021 Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING RH)
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥120
11155B — Pin, Ring
90253-12002 Pin, Ring
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥50
11159F — Gasket, Camshaft Bearing Cap Oil Hole, RH
11159-31040 Gasket, Camshaft Bearing Cap Oil Hole, RH
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥340
12108A — Gasket(FOR OIL FILLER CAP)
90430-35001 Gasket(FOR OIL FILLER CAP)
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥120
12180E — Cap Assy, Oil Filler
12180-38010 Cap Assy, Oil Filler
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥640
12281A — Hanger, Engine, NO.1
12281-70080 Hanger, Engine, NO.1
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥5,200
17941A — Guide, Intercooler Air, NO.1
17941-70020 Guide, Intercooler Air, NO.1
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥620
23476A — Housing, Fuel Pump Lifter, RH
23476-70011 Housing, Fuel Pump Lifter, RH
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥2,910
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
