Toyota Lexus LX600
2021-12 → present · chassis VJA310 · catalogue 792170 · Japan
Supported model
Data version 2022-01

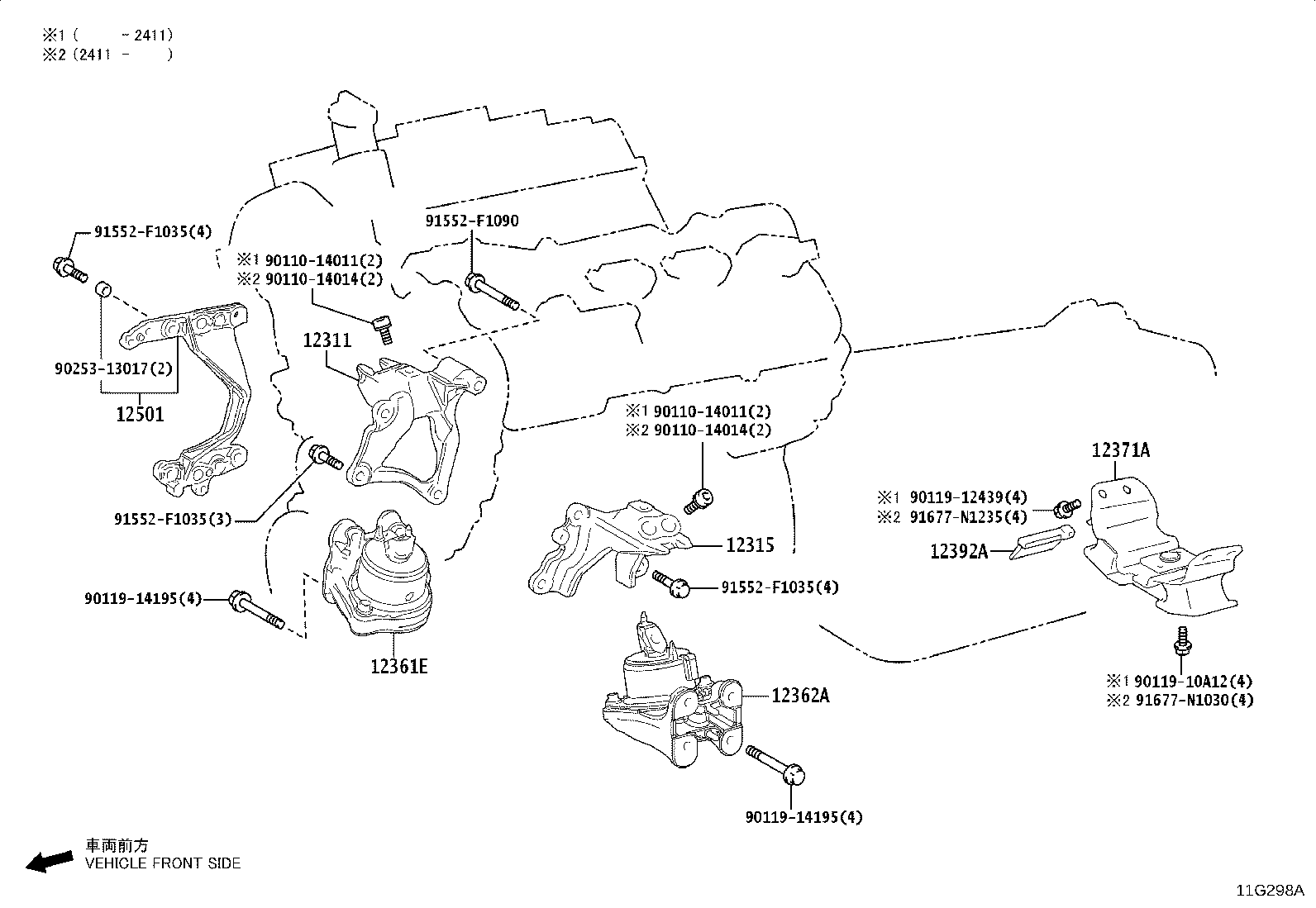

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 12311 — Bracket, Engine Mounting, Front NO.1 RH | ||||
| 12311-70190 |
Bracket, Engine Mounting, Front NO.1 RH
2021-12 → 2024-11
ended
|
V35AFTS VJA310 | ¥4,290 | |
| 12315 — Bracket, Engine Mounting, Front NO.1 LH | ||||
| 12315-70160 |
Bracket, Engine Mounting, Front NO.1 LH
2021-12 → 2024-11
ended
|
V35AFTS VJA310 | ¥4,010 | |
| 12361E — Insulator, Engine Mounting, Front RH | ||||
| 12361-70293 |
Insulator, Engine Mounting, Front RH
2021-12 → 2024-09
ended
|
V35AFTS VJA310 | ¥16,900 | |
| 12361-70340 |
Insulator, Engine Mounting, Front RH
2024-10 → 2024-11
ended
|
V35AFTS VJA310 | ¥15,200 | |
| 12362A — Insulator, Engine Mounting, Front LH | ||||
| 12362-70023 |
Insulator, Engine Mounting, Front LH
2021-12 → 2024-09
ended
|
V35AFTS VJA310 | ¥16,200 | |
| 12362-70040 |
Insulator, Engine Mounting, Front LH
2024-10 → 2024-11
ended
|
V35AFTS VJA310 | ¥14,700 | |
| 12371A — Insulator, Engine Mounting, Rear | ||||
| 12371-70130 |
Insulator, Engine Mounting, Rear
2021-12 → 2024-10
ended
|
V35AFTS VJA310 | ¥7,400 | |
| 12371-70140 |
Insulator, Engine Mounting, Rear
2024-10 → 2024-11
ended
|
V35AFTS VJA310 | ¥7,300 | |
| 12392A — Insulator, Engine Mounting Heat, Rear | ||||
| 12391-70050 |
Insulator, Engine Mounting Heat, Rear
2021-12 → 2024-10
ended
|
V35AFTS VJA310 | ¥930 | |
| 12391-70060 |
Insulator, Engine Mounting Heat, Rear
2024-10 → 2024-11
ended
|
V35AFTS VJA310 | ¥920 | |
| 12501 — Bracket Sub-assy, Alternator | ||||
| 12501-70030 |
Bracket Sub-assy, Alternator
2021-12 → 2024-11
ended
|
V35AFTS VJA310 | ¥4,290 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
