Toyota Lexus LX600

2021-12 → present · chassis VJA310 · catalogue 792170 · Japan

Supported model Data version 2022-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes
Exploded illustration 133311B 11711 — BEARING, CRANKSHAFT (36 parts) 11711 — BEARING, CRANKSHAFT (36 parts) 3502 — not listed in this catalogue 3502 — not listed in this catalogue 3502 — not listed in this catalogue 11011 — WASHER SET, CRANKSHAFT THRUST (1 parts) 13101A — RING, HOLE SNAP(FOR PISTON PIN) (1 parts) 13101A — RING, HOLE SNAP(FOR PISTON PIN) (1 parts) 13411 — CRANKSHAFT (1 parts) 13471 — PULLEY, CRANKSHAFT (1 parts) 13471A — KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) (1 parts) 13471C — BOLT(FOR CRANKSHAFT PULLEY SET) (1 parts) 13521A — KEY(FOR CRANKSHAFT TIMING GEAR) (1 parts) 19315 — PLATE, CRANK ANGLE SENSOR, NO.1 (1 parts) 13519B — SPROCKET, OIL PUMP DRIVE (1 parts) 13521 — GEAR OR SPROCKET, CRANKSHAFT TIMING (1 parts) 13301 — PISTON SUB-ASSY, W/PIN, LH (1 parts) 13101B — PISTON SUB-ASSY, W/PIN, RH (1 parts) 13011 — RING SET, PISTON (1 parts) 13041 — BEARING, CONNECTING ROD (4 parts) 13201 — ROD SUB-ASSY, CONNECTING (1 parts) 13265 — BOLT, CONNECTING ROD (1 parts) 11711 — BEARING, CRANKSHAFT (36 parts) 11711 — BEARING, CRANKSHAFT (36 parts)

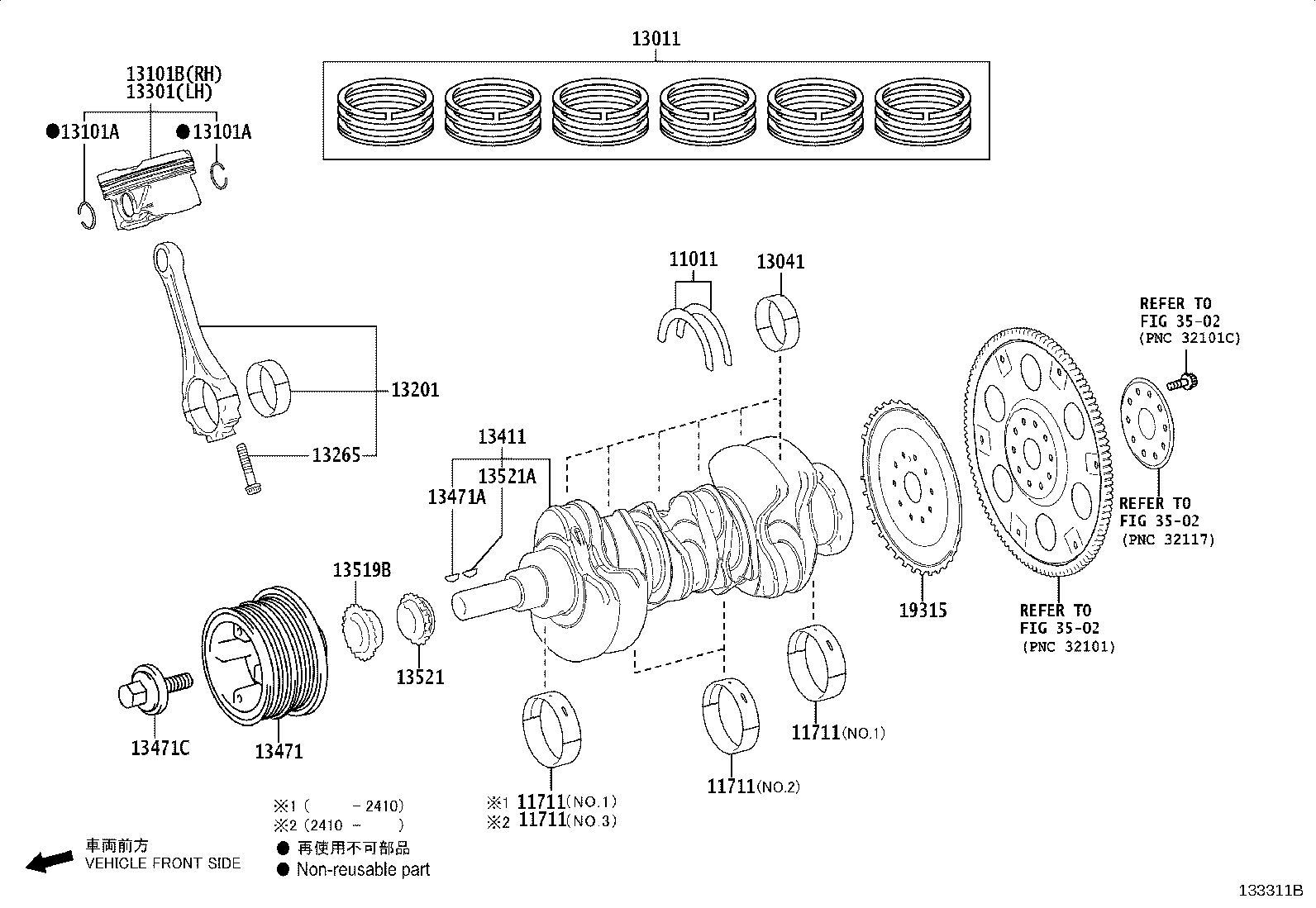

133311B · 21 callouts, 3 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
55 parts on this figure
Part number Description Fitment Price
11011 — Washer Set, Crankshaft Thrust
11011-70023 note Washer Set, Crankshaft Thrust
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥1,040
11711 — Bearing, Crankshaft
11071-70040-01 note Bearing, Crankshaft
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥2,570
11071-70040-02 note Bearing, Crankshaft
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥2,570
11071-70040-03 note Bearing, Crankshaft
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥2,570
11071-70040-04 note Bearing, Crankshaft
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥2,570
11071-70040-05 note Bearing, Crankshaft
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥2,570
11071-70040-A1 note Bearing, Crankshaft
2024-04 → 2024-11 ended
V35AFTS VJA310 ¥2,570
11071-70040-A2 note Bearing, Crankshaft
2024-04 → 2024-11 ended
V35AFTS VJA310 ¥2,570
11071-70040-A3 note Bearing, Crankshaft
2024-04 → 2024-11 ended
V35AFTS VJA310 ¥2,570
11071-70040-A4 note Bearing, Crankshaft
2024-04 → 2024-11 ended
V35AFTS VJA310 ¥2,570
11072-70010-01 note Bearing, Crankshaft
2024-10 → 2024-11 ended
V35AFTS VJA310 —
11072-70010-02 note Bearing, Crankshaft
2024-10 → 2024-11 ended
V35AFTS VJA310 —
11072-70010-03 note Bearing, Crankshaft
2024-10 → 2024-11 ended
V35AFTS VJA310 —
11072-70010-04 note Bearing, Crankshaft
2024-10 → 2024-11 ended
V35AFTS VJA310 —
11072-70010-05 note Bearing, Crankshaft
2024-10 → 2024-11 ended
V35AFTS VJA310 —
11072-70010-A1 note Bearing, Crankshaft
2024-10 → 2024-11 ended
V35AFTS VJA310 ¥2,730
11072-70010-A2 note Bearing, Crankshaft
2024-10 → 2024-11 ended
V35AFTS VJA310 ¥2,730
11072-70010-A3 note Bearing, Crankshaft
2024-10 → 2024-11 ended
V35AFTS VJA310 ¥2,730
11072-70010-A4 note Bearing, Crankshaft
2024-10 → 2024-11 ended
V35AFTS VJA310 ¥2,730
11701-70041-01 note Bearing, Crankshaft
2021-12 → 2024-10 ended
V35AFTS VJA310 ¥2,740
11701-70041-01 note Bearing, Crankshaft
2024-10 → 2024-11 ended
V35AFTS VJA310 ¥2,740
11701-70041-02 note Bearing, Crankshaft
2021-12 → 2024-10 ended
V35AFTS VJA310 ¥2,740
11701-70041-02 note Bearing, Crankshaft
2024-10 → 2024-11 ended
V35AFTS VJA310 ¥2,740
11701-70041-03 note Bearing, Crankshaft
2021-12 → 2024-10 ended
V35AFTS VJA310 ¥2,740
11701-70041-03 note Bearing, Crankshaft
2024-10 → 2024-11 ended
V35AFTS VJA310 ¥2,740
11701-70041-04 note Bearing, Crankshaft
2021-12 → 2024-10 ended
V35AFTS VJA310 ¥2,740
11701-70041-04 note Bearing, Crankshaft
2024-10 → 2024-11 ended
V35AFTS VJA310 ¥2,740
11701-70041-05 note Bearing, Crankshaft
2021-12 → 2024-10 ended
V35AFTS VJA310 ¥2,740
11701-70041-05 note Bearing, Crankshaft
2024-10 → 2024-11 ended
V35AFTS VJA310 ¥2,740
11701-70041-A1 note Bearing, Crankshaft
2024-05 → 2024-10 ended
V35AFTS VJA310 ¥2,740
11701-70041-A1 note Bearing, Crankshaft
2024-10 → 2024-11 ended
V35AFTS VJA310 ¥2,740
11701-70041-A2 note Bearing, Crankshaft
2024-05 → 2024-10 ended
V35AFTS VJA310 ¥2,740
11701-70041-A2 note Bearing, Crankshaft
2024-10 → 2024-11 ended
V35AFTS VJA310 ¥2,740
11701-70041-A3 note Bearing, Crankshaft
2024-05 → 2024-10 ended
V35AFTS VJA310 ¥2,740
11701-70041-A3 note Bearing, Crankshaft
2024-10 → 2024-11 ended
V35AFTS VJA310 ¥2,740
11701-70041-A4 note Bearing, Crankshaft
2024-10 → 2024-11 ended
V35AFTS VJA310 ¥2,740
11701-70041-A4 note Bearing, Crankshaft
2024-05 → 2024-10 ended
V35AFTS VJA310 ¥2,740
13011 — Ring Set, Piston
13011-70142 note Ring Set, Piston
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥16,100
13041 — Bearing, Connecting Rod
13041-70031-01 note Bearing, Connecting Rod
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥1,490
13041-70031-02 note Bearing, Connecting Rod
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥1,490
13041-70031-03 note Bearing, Connecting Rod
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥1,490
13041-70031-04 note Bearing, Connecting Rod
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥1,490
13101A — Ring, Hole Snap(FOR PISTON PIN)
90520-25090 Ring, Hole Snap(FOR PISTON PIN)
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥90
13101B — Piston Sub-assy, W/Pin, RH
13101-70160 note Piston Sub-assy, W/Pin, RH
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥4,530
13201 — Rod Sub-assy, Connecting
13201-79655 Rod Sub-assy, Connecting
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥10,800
13265 — Bolt, Connecting Rod
13265-70040 Bolt, Connecting Rod
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥310
13301 — Piston Sub-assy, W/Pin, LH
13301-70030 note Piston Sub-assy, W/Pin, LH
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥4,530
13411 — Crankshaft
13401-70021 Crankshaft
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥96,100
13471 — Pulley, Crankshaft
13408-70020 Pulley, Crankshaft
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥15,700
13471A — Key, Crankshaft(FOR CRANKSHAFT PULLEY SET)
95161-30516 Key, Crankshaft(FOR CRANKSHAFT PULLEY SET)
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥130
13471C — Bolt(FOR CRANKSHAFT PULLEY SET)
90119-18008 Bolt(FOR CRANKSHAFT PULLEY SET)
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥800
13519B — Sprocket, Oil Pump Drive
13519-70020 Sprocket, Oil Pump Drive
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥1,360
13521 — Gear OR Sprocket, Crankshaft Timing
13521-70080 Gear OR Sprocket, Crankshaft Timing
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥1,890
13521A — Key(FOR CRANKSHAFT TIMING GEAR)
95161-30516 Key(FOR CRANKSHAFT TIMING GEAR)
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥130
19315 — Plate, Crank Angle Sensor, NO.1
19315-70011 Plate, Crank Angle Sensor, NO.1
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥4,460
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
