Toyota Lexus LX600
2021-12 → present · chassis VJA310 · catalogue 792170 · Japan
Supported model
Data version 2022-01

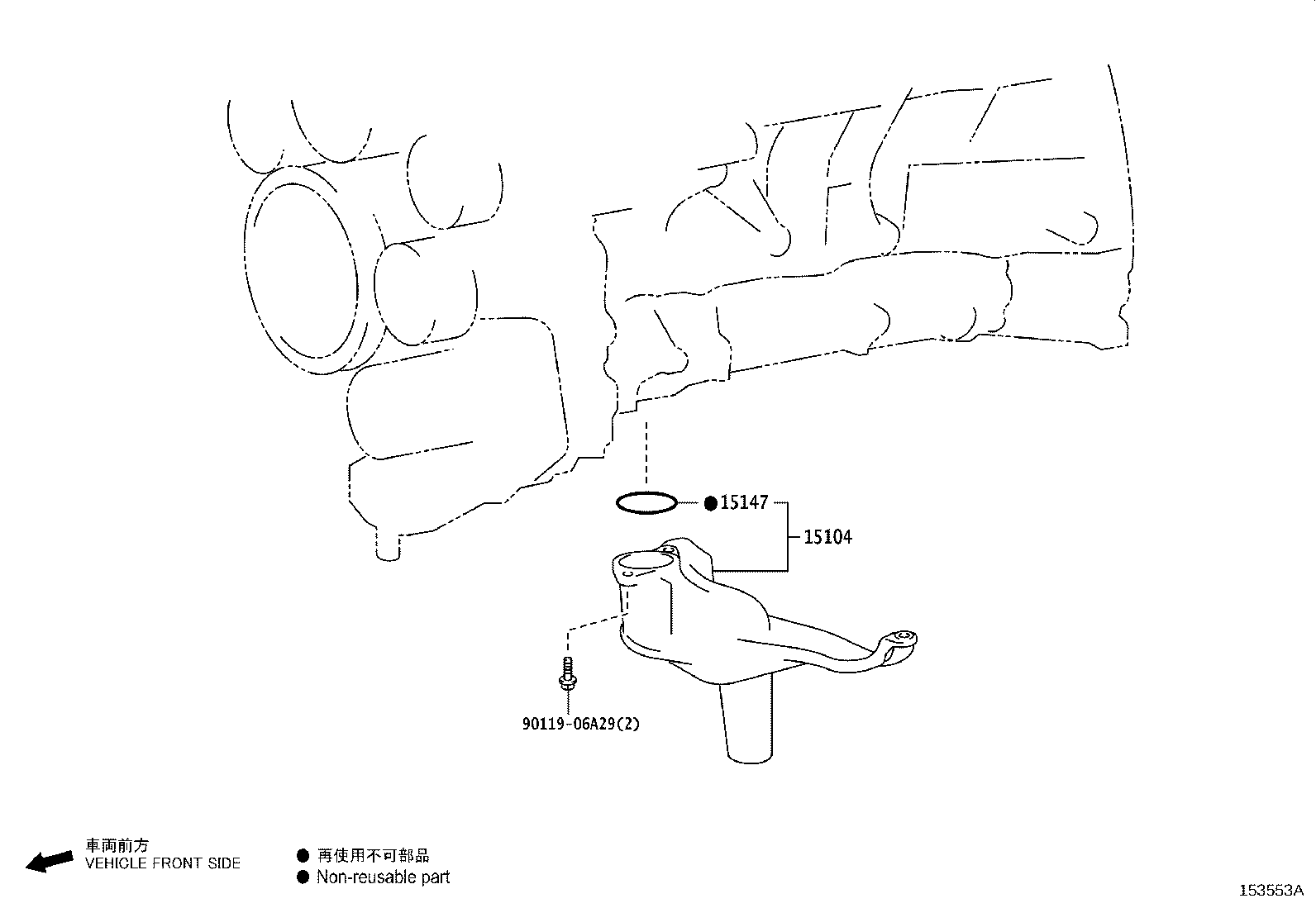

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 15104 — Strainer Sub-assy, Oil | ||||
| 15104-70110 |
Strainer Sub-assy, Oil
2021-12 → 2024-11
ended
|
V35AFTS VJA310 | ¥3,080 | |
| 15147 — Gasket, Oil Strainer | ||||
| 15147-70040 |
Gasket, Oil Strainer
2021-12 → 2024-11
ended
|
V35AFTS VJA310 | ¥340 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
