Toyota Lexus LX600
2021-12 → present · chassis VJA310 · catalogue 792170 · Japan
Supported model
Data version 2022-01

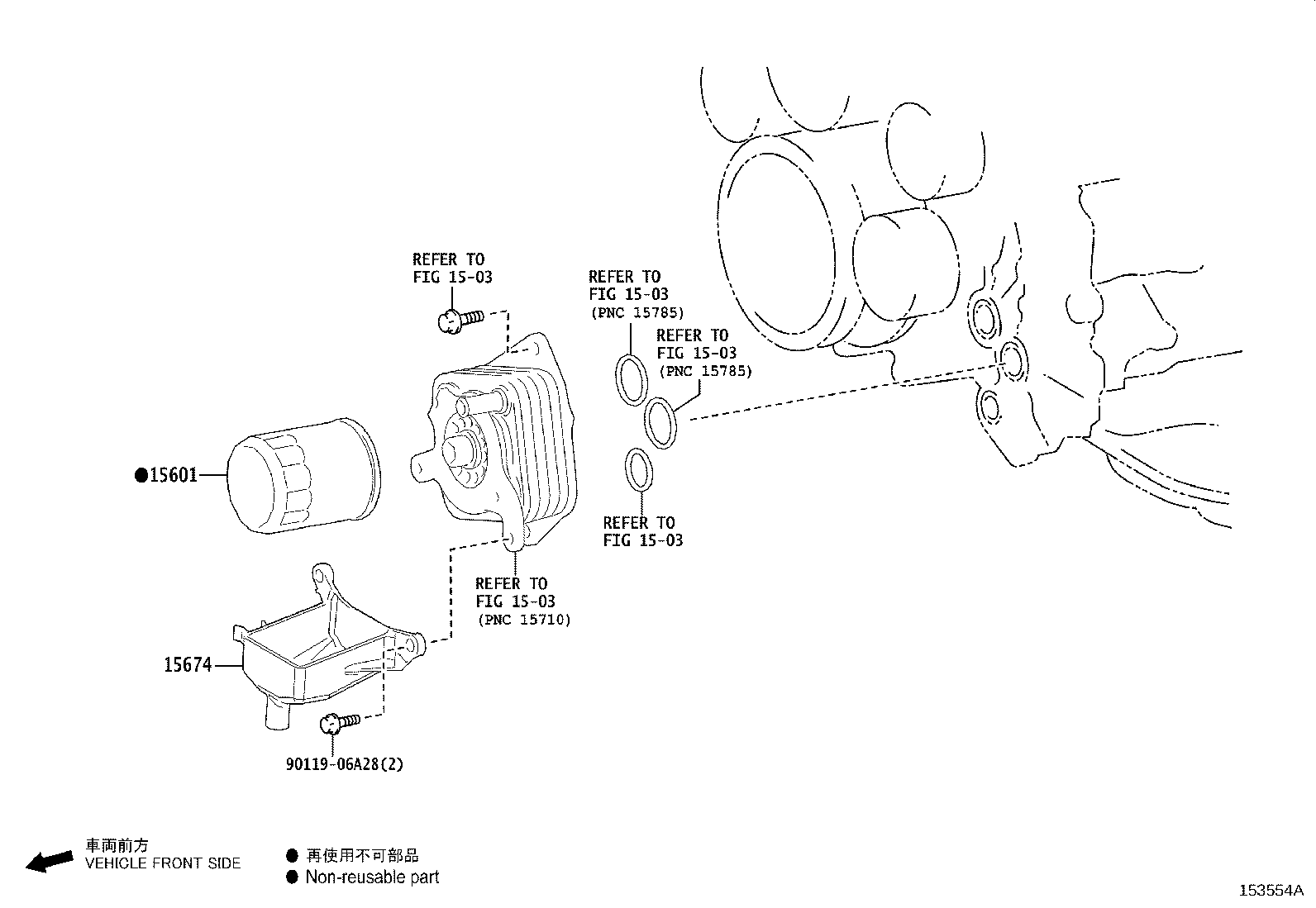

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 15601 — Filter Sub-assy, Oil | ||||
| 90915-10010 |
Filter Sub-assy, Oil
2021-12 → 2024-11
ended
|
V35AFTS VJA310 | ¥1,050 | |
| 15674 — Receiver, Oil Filter | ||||
| 15674-70020 |
Receiver, Oil Filter
2021-12 → 2024-11
ended
|
V35AFTS VJA310 | ¥1,590 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
