Toyota Lexus LX600
2021-12 → present · chassis VJA310 · catalogue 792170 · Japan
Supported model
Data version 2022-01

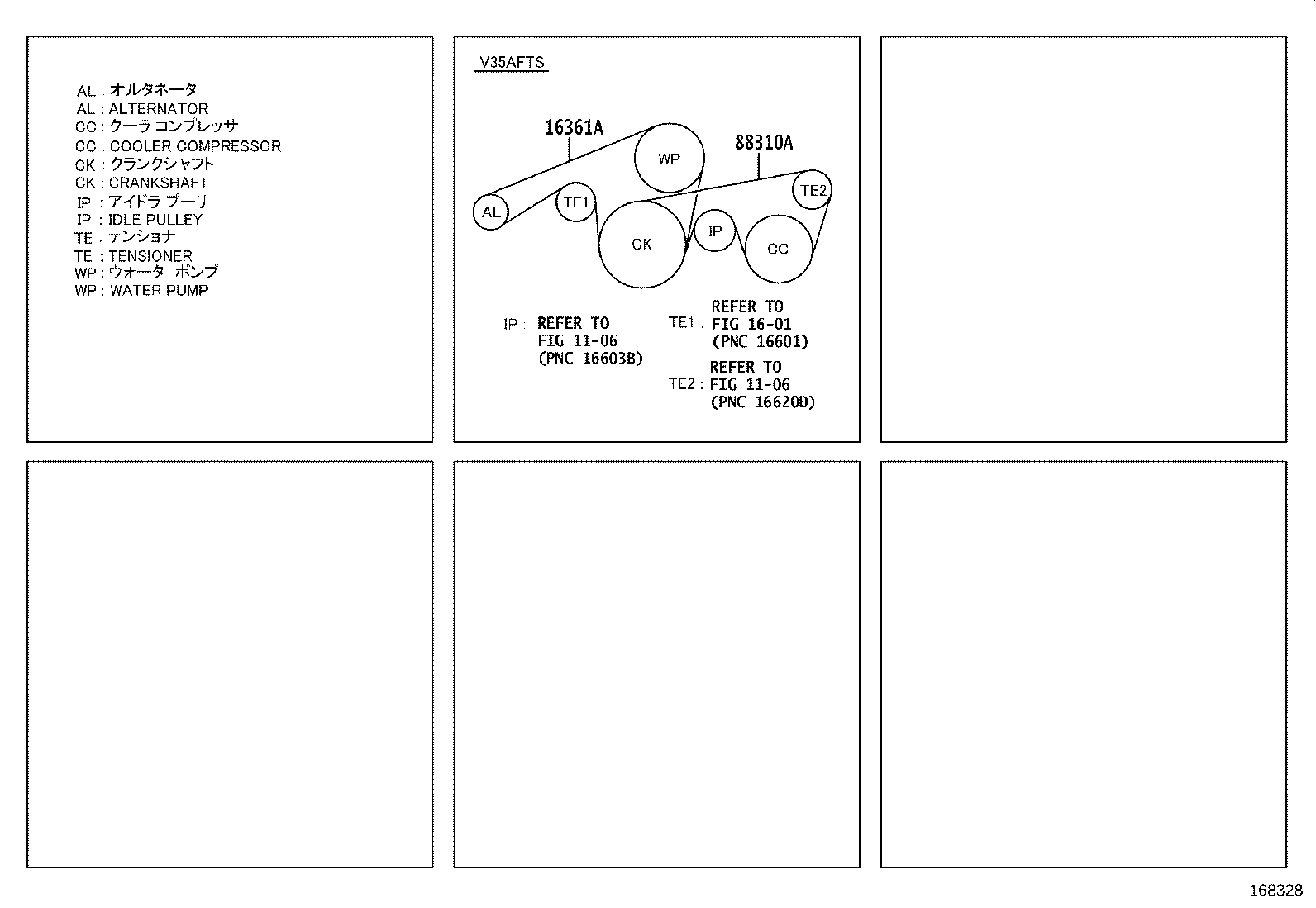

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 16361A — Belt, V(FOR FAN & ALTERNATOR) | ||||
| 90916-02776 |
Belt, V(FOR FAN & ALTERNATOR)
2021-12 → 2024-11
ended
|
V35AFTS VJA310 | ¥4,360 | |
| 88310A — Belt, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 | ||||
| 90916-02750 note |
Belt, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
2021-12 → 2024-11
ended
|
VJA310 | ¥5,100 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
