Toyota Lexus LX600

2021-12 → present · chassis VJA310 · catalogue 792170 · Japan

Supported model Data version 2022-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

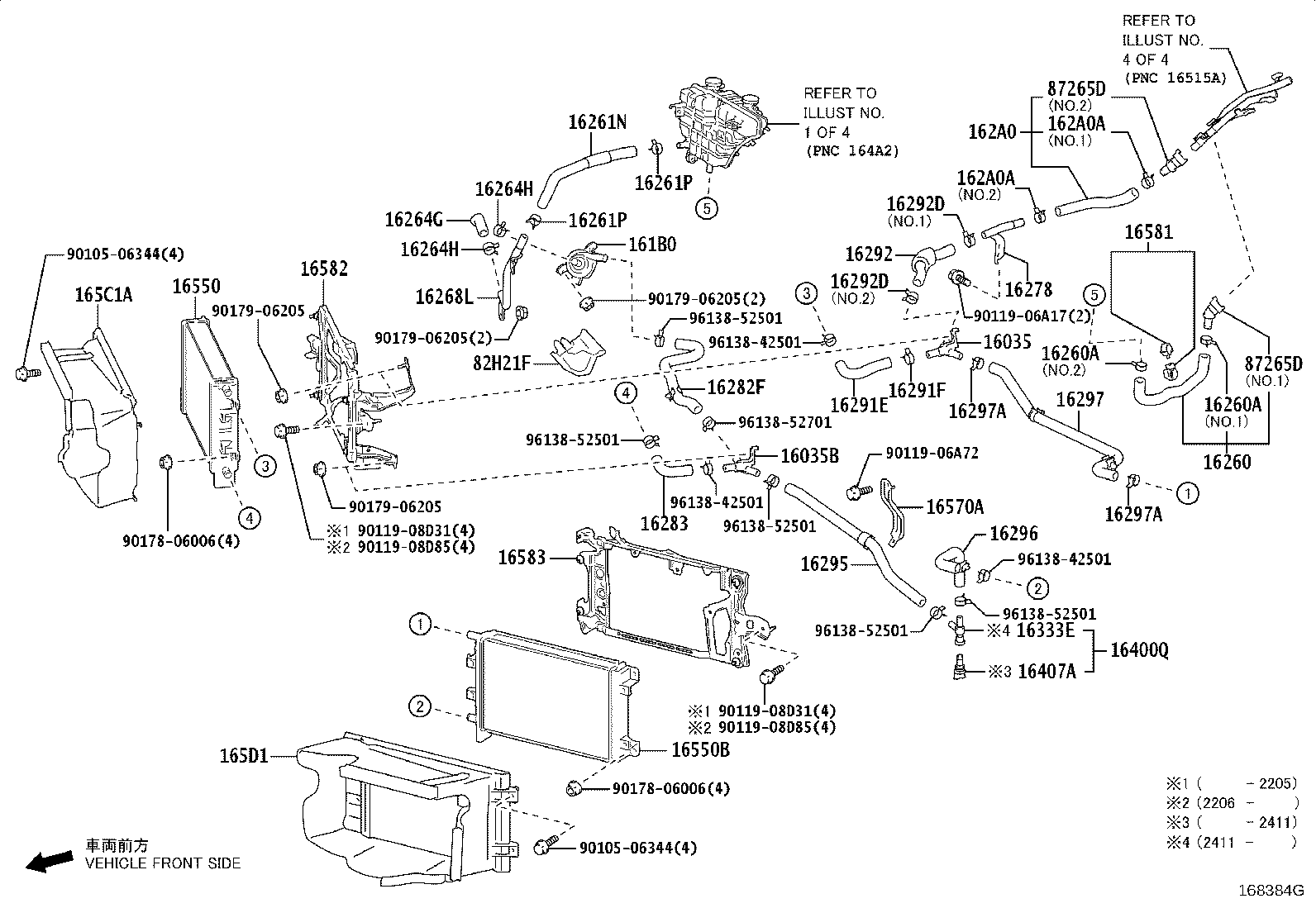

Exploded illustration 168384G 161B0 — PUMP ASSY, ELECTRIC WATER (1 parts) 16260 — HOSE ASSY, WATER BY-PASS (1 parts) 16261N — HOSE, WATER BY-PASS, NO.2 (1 parts) 16261P — CLIP(FOR WATER BY-PASS HOSE NO.2) (1 parts) 16261P — CLIP(FOR WATER BY-PASS HOSE NO.2) (1 parts) 16264G — HOSE, WATER BY-PASS, NO.3 (1 parts) 16264H — CLIP(FOR WATER BY-PASS HOSE NO.3) (2 parts) 16264H — CLIP(FOR WATER BY-PASS HOSE NO.3) (2 parts) 16268L — PIPE, WATER BY-PASS (1 parts) 16278 — PIPE, WATER BY-PASS, NO.2 (1 parts) 16282F — HOSE, WATER BY-PASS, NO.5 (1 parts) 16291E — JOINT,WATER HOSE, NO.1 (1 parts) 16291F — CLIP(FOR WATER HOSE JOINT NO.1) (1 parts) 16292 — JOINT, WATER HOSE, NO.2 (1 parts) 16297 — HOSE, WATER BY-PASS, NO.9 (1 parts) 16297A — CLIP(FOR WATER BY-PASS HOSE NO.9) (1 parts) 162A0 — HOSE ASSY, WATER BY-PASS, NO.4 (1 parts) 16550 — RADIATOR ASSY, INTERCOOLER COOLING (1 parts) 165C1A — DUCT, SUB-RADIATOR, RH NO.1 (1 parts) 82H21F — COVER, CONNECTOR (1 parts) 9011906A17 — not listed in this catalogue 9017906205 — not listed in this catalogue 9017906205 — not listed in this catalogue 9017906205 — not listed in this catalogue 9613852501 — not listed in this catalogue 9613852701 — not listed in this catalogue 16292D — CLIP(FOR WATER HOSE JOINT NO.2) (2 parts) 162A0A — CLIP(FOR WATER BY-PASS HOSE ASSY NO.4) (2 parts) 16035 — JOINT, WATER HOSE (1 parts) 16292D — CLIP(FOR WATER HOSE JOINT NO.2) (2 parts) 162A0A — CLIP(FOR WATER BY-PASS HOSE ASSY NO.4) (2 parts) 87265D — CONNECTOR, HEATER WATER HOSE (1 parts) 87265D — CONNECTOR, HEATER WATER HOSE (1 parts) 16260A — CLIP(FOR WATER BY-PASS HOSE ASSY) (2 parts) 16260A — CLIP(FOR WATER BY-PASS HOSE ASSY) (2 parts) 16283 — HOSE, WATER BY-PASS, NO.6 (1 parts) 16295 — HOSE, WATER BY-PASS, NO.7 (1 parts) 16296 — HOSE, WATER BY-PASS, NO.8 (1 parts) 16297A — CLIP(FOR WATER BY-PASS HOSE NO.9) (1 parts) 16400Q — COCK ASSY, DRAIN (1 parts) 16407A — COCK SUB-ASSY, RADIATOR DRAIN (1 parts) 16550B — RADIATOR ASSY, INTERCOOLER COOLING, NO.2 (1 parts) 16570A — BRACKET ASSY, WATER HOSE CLAMP (1 parts) 165D1 — DUCT, SUB-RADIATOR, LH NO.1 (1 parts) 9613852501 — not listed in this catalogue 9613852501 — not listed in this catalogue 9613852501 — not listed in this catalogue 9613842501 — not listed in this catalogue 9613852501 — not listed in this catalogue 9613842501 — not listed in this catalogue 9613842501 — not listed in this catalogue 9010506344 — not listed in this catalogue 9010506344 — not listed in this catalogue 9017806006 — not listed in this catalogue 9017806006 — not listed in this catalogue 9017906205 — not listed in this catalogue 16035B — JOINT SUB-ASSY, WATER BY-PASS, FRONT (1 parts) 16582 — BRACKET, RADIATOR, NO.1 (1 parts) 16583 — BRACKET, RADIATOR, NO.2 (1 parts) 9011906A72 — not listed in this catalogue 9011908D31 — not listed in this catalogue 9011908D85 — not listed in this catalogue 9011908D31 — not listed in this catalogue 9011908D85 — not listed in this catalogue 16581 — CLAMP, HOSE(FOR WATER HOSE) (1 parts) 16333E — not listed in this catalogue
168384G · 42 callouts, 24 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
39 parts on this figure
Part number Description Fitment Price
16035 — Joint, Water Hose
16035-70010 Joint, Water Hose
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥1,630
16035B — Joint Sub-assy, Water By-pass, Front
16035-70020 Joint Sub-assy, Water By-pass, Front
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥1,630
161B0 — Pump Assy, Electric Water
161B0-70020 Pump Assy, Electric Water
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥14,100
16260 — Hose Assy, Water By-pass
16260-70050 Hose Assy, Water By-pass
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥1,600
16260A — Clip(FOR WATER BY-PASS HOSE ASSY)
96138-42701 note Clip(FOR WATER BY-PASS HOSE ASSY)
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥200
96138-52501 note Clip(FOR WATER BY-PASS HOSE ASSY)
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥180
16261N — Hose, Water By-pass, NO.2
16261-70170 Hose, Water By-pass, NO.2
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥1,010
16261P — Clip(FOR WATER BY-PASS HOSE NO.2)
96138-52501 Clip(FOR WATER BY-PASS HOSE NO.2)
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥180
16264G — Hose, Water By-pass, NO.3
16264-70180 Hose, Water By-pass, NO.3
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥540
16264H — Clip(FOR WATER BY-PASS HOSE NO.3)
96138-41901 Clip(FOR WATER BY-PASS HOSE NO.3)
2021-12 → 2024-05 ended
V35AFTS VJA310 ¥120
96138-41901 Clip(FOR WATER BY-PASS HOSE NO.3)
2024-05 → 2024-11 ended
V35AFTS VJA310 ¥120
16268L — Pipe, Water By-pass
16268-70090 Pipe, Water By-pass
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥1,860
16278 — Pipe, Water By-pass, NO.2
16278-70130 Pipe, Water By-pass, NO.2
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥1,630
16282F — Hose, Water By-pass, NO.5
16282-70041 Hose, Water By-pass, NO.5
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥1,080
16283 — Hose, Water By-pass, NO.6
16283-70081 Hose, Water By-pass, NO.6
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥350
16291E — Joint,Water Hose, NO.1
16291-70010 Joint,Water Hose, NO.1
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥810
16291F — Clip(FOR WATER HOSE JOINT NO.1)
96138-42501 Clip(FOR WATER HOSE JOINT NO.1)
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥180
16292 — Joint, Water Hose, NO.2
16292-70020 Joint, Water Hose, NO.2
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥1,090
16292D — Clip(FOR WATER HOSE JOINT NO.2)
96138-42501 note Clip(FOR WATER HOSE JOINT NO.2)
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥180
96138-52701 note Clip(FOR WATER HOSE JOINT NO.2)
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥180
16295 — Hose, Water By-pass, NO.7
16295-70051 Hose, Water By-pass, NO.7
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥1,080
16296 — Hose, Water By-pass, NO.8
16296-70060 Hose, Water By-pass, NO.8
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥790
16297 — Hose, Water By-pass, NO.9
16297-70030 Hose, Water By-pass, NO.9
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥1,270
16297A — Clip(FOR WATER BY-PASS HOSE NO.9)
96138-41901 Clip(FOR WATER BY-PASS HOSE NO.9)
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥120
162A0 — Hose Assy, Water By-pass, NO.4
162A0-70010 Hose Assy, Water By-pass, NO.4
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥1,350
162A0A — Clip(FOR WATER BY-PASS HOSE ASSY NO.4)
96138-42701 note Clip(FOR WATER BY-PASS HOSE ASSY NO.4)
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥200
96138-52501 note Clip(FOR WATER BY-PASS HOSE ASSY NO.4)
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥180
16400Q — Cock Assy, Drain
90910-09134 Cock Assy, Drain
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥760
16407A — Cock Sub-assy, Radiator Drain
16407-64010 Cock Sub-assy, Radiator Drain
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥380
16550 — Radiator Assy, Intercooler Cooling
16550-70060 Radiator Assy, Intercooler Cooling
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥19,800
16550B — Radiator Assy, Intercooler Cooling, NO.2
16550-70070 Radiator Assy, Intercooler Cooling, NO.2
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥19,800
16570A — Bracket Assy, Water Hose Clamp
16570-70010 Bracket Assy, Water Hose Clamp
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥700
16581 — Clamp, Hose(FOR WATER HOSE)
16581-70020 Clamp, Hose(FOR WATER HOSE)
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥510
16582 — Bracket, Radiator, NO.1
16582-70021 Bracket, Radiator, NO.1
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥6,600
16583 — Bracket, Radiator, NO.2
16583-70020 Bracket, Radiator, NO.2
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥5,500
165C1A — Duct, Sub-radiator, RH NO.1
165C1-70040 Duct, Sub-radiator, RH NO.1
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥8,100
165D1 — Duct, Sub-radiator, LH NO.1
165D1-70020 Duct, Sub-radiator, LH NO.1
2021-12 → 2024-11 ended
V35AFTS VJA310 ¥8,100
82H21F — Cover, Connector
82821-60A40 Cover, Connector
2021-12 → 2024-11 ended
VJA310 ¥710
87265D — Connector, Heater Water Hose
87265-60220 note Connector, Heater Water Hose
2021-12 → 2024-11 ended
VJA310 ¥1,010
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
