Toyota Lexus LX600
2021-12 → present · chassis VJA310 · catalogue 792170 · Japan
Supported model
Data version 2022-01

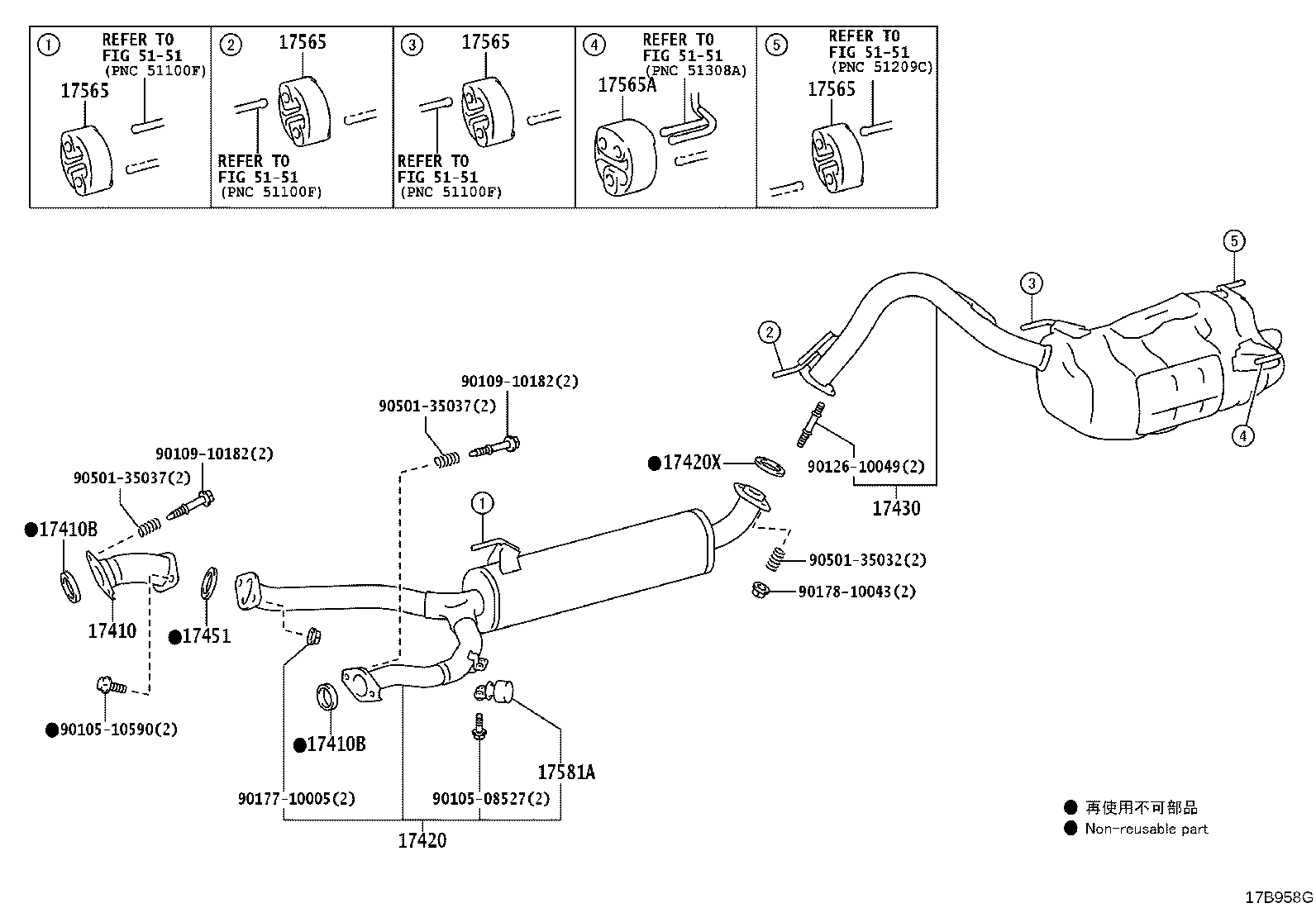

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17410 — Pipe Assy, Exhaust, Front | ||||
| 17410-70380 |
Pipe Assy, Exhaust, Front
2021-12 → 2024-11
ended
|
V35AFTS VJA310 | ¥6,400 | |
| 17410B — Gasket, Exhaust Pipe | ||||
| 17451-28040 |
Gasket, Exhaust Pipe
2021-12 → 2023-10
ended
|
V35AFTS VJA310 | ¥1,510 | |
| 17451-28041 |
Gasket, Exhaust Pipe
2023-11 → 2024-11
ended
|
V35AFTS VJA310 | ¥1,510 | |
| 17420 — Pipe Assy, Exhaust, Center | ||||
| 17420-70470 |
Pipe Assy, Exhaust, Center
2021-12 → 2024-11
ended
|
V35AFTS VJA310 | ¥42,700 | |
| 17420X — Gasket, Exhaust Pipe, Center | ||||
| 17451-52050 |
Gasket, Exhaust Pipe, Center
2021-12 → 2024-11
ended
|
V35AFTS VJA310 | ¥1,450 | |
| 17430 — Pipe Assy, Exhaust, Tail | ||||
| 17430-70831 |
Pipe Assy, Exhaust, Tail
2021-12 → 2024-11
ended
|
V35AFTS VJA310 | ¥75,400 | |
| 17451 — Gasket, Exhaust Pipe | ||||
| 90917-06070 |
Gasket, Exhaust Pipe
2021-12 → 2024-11
ended
|
V35AFTS VJA310 | ¥340 | |
| 17565 — Support, Exhaust Pipe, NO.5 | ||||
| 17565-28010 |
Support, Exhaust Pipe, NO.5
2021-12 → 2024-11
ended
|
V35AFTS VJA310 | ¥670 | |
| 17565A — Support, Exhaust Pipe, NO.4 | ||||
| 17565-31050 |
Support, Exhaust Pipe, NO.4
2021-12 → 2024-11
ended
|
V35AFTS VJA310 | ¥900 | |
| 17581A — Damper, Exhaust Pipe | ||||
| 17581-31050 |
Damper, Exhaust Pipe
2021-12 → 2024-11
ended
|
V35AFTS VJA310 | ¥1,450 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
