Toyota Lexus LX600
2021-12 → present · chassis VJA310 · catalogue 792170 · Japan
Supported model
Data version 2022-01

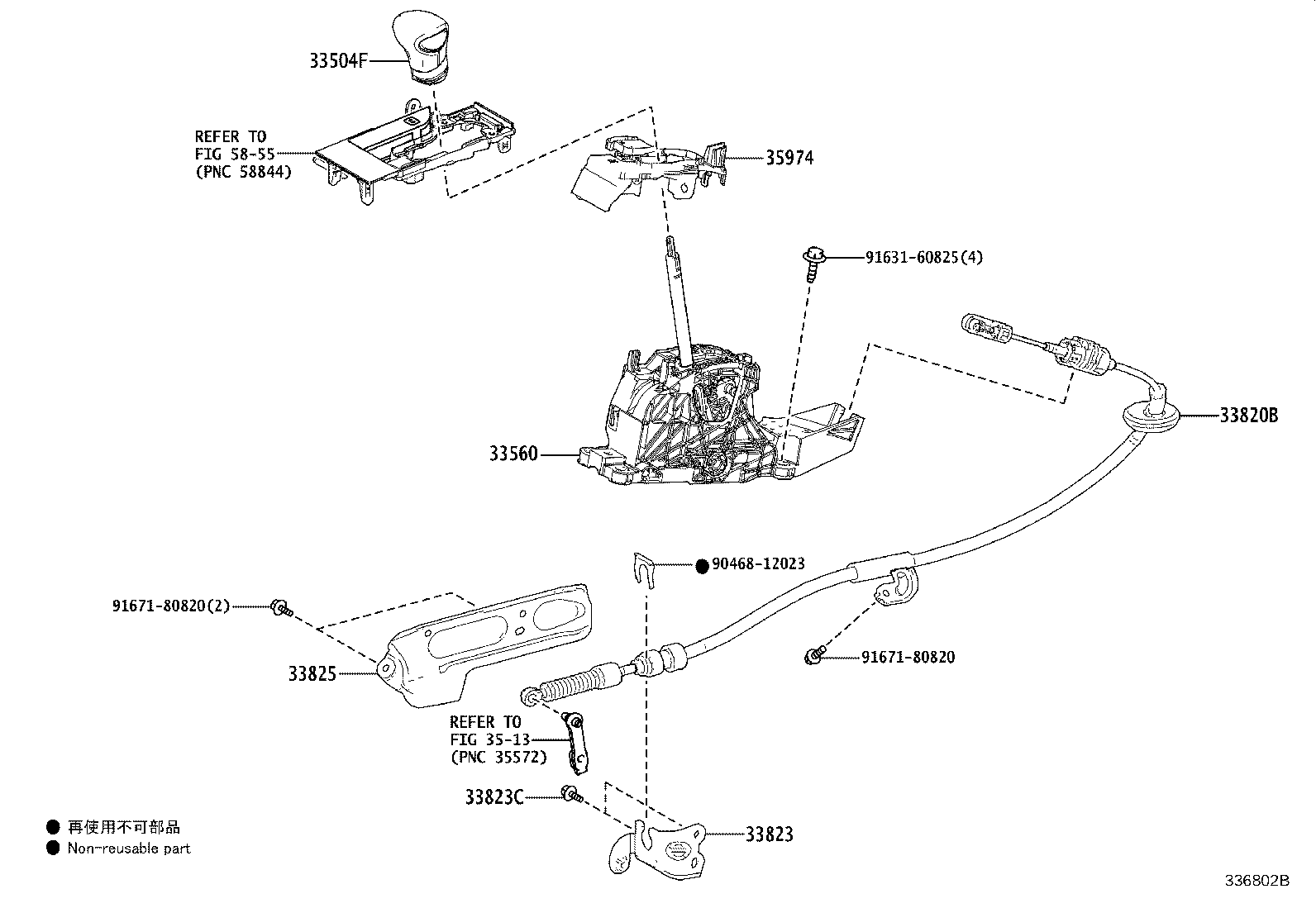

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 33504F — Knob Sub-assy, Shift Lever | ||||
| 33504-33220-C0 note |
Knob Sub-assy, Shift Lever
2021-12 → 2024-11
ended
|
VJA310 | ¥4,430 | |
| 33504-33230-C0 note |
Knob Sub-assy, Shift Lever
2021-12 → 2024-11
ended
|
VJA310 | ¥5,900 | |
| 33560 — Unit Assy, Shift Lock Control | ||||
| 33560-60260 |
Unit Assy, Shift Lock Control
2021-12 → 2024-11
ended
|
VJA310 | ¥18,400 | |
| 33820B — Cable Assy, Transmission Control | ||||
| 33820-60230 |
Cable Assy, Transmission Control
2021-12 → 2024-11
ended
|
VJA310 | ¥9,400 | |
| 33823 — Bracket, Transmission Control Cable, NO.1 | ||||
| 33823-60040 |
Bracket, Transmission Control Cable, NO.1
2021-12 → 2024-11
ended
|
VJA310 | ¥620 | |
| 33823C — Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET) | ||||
| 91671-80820 |
Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
2021-12 → 2024-11
ended
|
VJA310 | ¥80 | |
| 33825 — Insulator, Transmission Control Cable | ||||
| 33825-60020 |
Insulator, Transmission Control Cable
2021-12 → 2024-11
ended
|
VJA310 | ¥1,410 | |
| 35974 — Housing, Position Indicator, Lower | ||||
| 35974-60210 |
Housing, Position Indicator, Lower
2021-12 → 2024-11
ended
|
VJA310 | ¥2,260 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
