Toyota Lexus LX600

2021-12 → present · chassis VJA310 · catalogue 792170 · Japan

Supported model Data version 2022-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

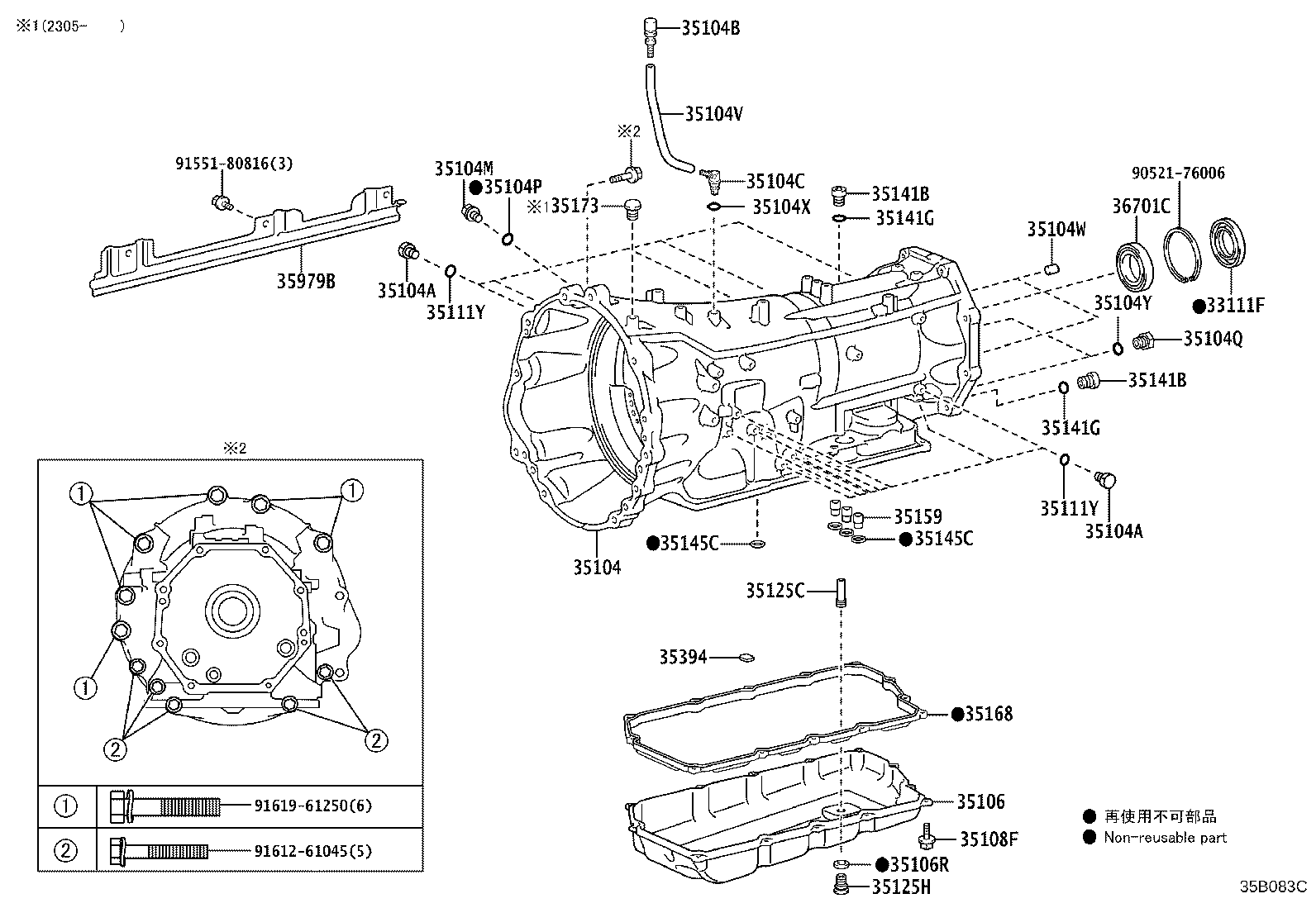

Exploded illustration 35B083C 35979B — INSULATOR, TRANSMISSION, RH (1 parts) 9052176006 — not listed in this catalogue 9155180816 — not listed in this catalogue 9161961250 — not listed in this catalogue 9161261045 — not listed in this catalogue 35106R — GASKET (FOR AUTOMATIC TRANSMISSION OIL PAN) (1 parts) 35106 — PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL (1 parts) 35108F — BOLT, W/WASHER (1 parts) 35168 — GASKET, AUTOMATIC TRANSMISSION OIL PAN (1 parts) 35125H — PLUG, OVERFLOW(ATM) (1 parts) 35394 — MAGNET, OIL CLEANER (FOR TRANSMISSION) (1 parts) 35125C — TUBE, TRANSMISSION OIL FILLER, NO.1 (1 parts) 35159 — GASKET, BRAKE DRUM (1 parts) 35145C — GASKET, TRANSAXLE CASE (1 parts) 35111Y — RING, O (FOR AUTOMATIC TRANSMISSION CASE) (1 parts) 35104A — PLUG, AUTOMATIC TRANSMISSION CASE (1 parts) 35104Y — RING, O (FOR AUTOMATIC TRANSMISSION CASE) (1 parts) 35104W — PIN, STRAIGHT (FOR TRANSAXLE CASE) (1 parts) 35141G — RING, O (FOR AUTOMATIC TRANSMISSION CASE) (1 parts) 35141B — PLUG (FOR AUTOMATIC TRANSMISSION CASE) (1 parts) 35104Q — PLUG, NO.1 (FOR TRANSAXLE CASE) (1 parts) 35111Y — RING, O (FOR AUTOMATIC TRANSMISSION CASE) (1 parts) 35104P — GASKET, REFILL PLUG(ATM) (1 parts) 35104A — PLUG, AUTOMATIC TRANSMISSION CASE (1 parts) 35104M — PLUG, REFILL(ATM) (1 parts) 35104C — PLUG, BREATHER, NO.2 (ATM) (1 parts) 35104X — RING, O (FOR BREATHER PLUG) (1 parts) 35104V — HOSE (FOR BREATHER PLUG) (1 parts) 35104B — PLUG, BREATHER, NO.1 (ATM) (1 parts) 35141G — RING, O (FOR AUTOMATIC TRANSMISSION CASE) (1 parts) 35141B — PLUG (FOR AUTOMATIC TRANSMISSION CASE) (1 parts) 36701C — BEARING, BALL (1 parts) 33111F — SEAL, OIL(FOR TRANSMISSION CASE) (1 parts) 35104 — CASE SUB-ASSY, AUTOMATIC TRANSMISSION (2 parts) 35145C — GASKET, TRANSAXLE CASE (1 parts) 35173 — CAP, TRANSAXLE CASE NO.1 (1 parts)
35B083C · 32 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
28 parts on this figure
Part number Description Fitment Price
33111F — Seal, Oil(FOR TRANSMISSION CASE)
90311-51015 Seal, Oil(FOR TRANSMISSION CASE)
2021-12 → 2024-11 ended
VJA310 ¥610
35104 — Case Sub-assy, Automatic Transmission
35104-60280 Case Sub-assy, Automatic Transmission
2021-12 → 2023-05 ended
VJA310 ¥71,500
35104-60360 Case Sub-assy, Automatic Transmission
2023-05 → 2024-11 ended
VJA310 ¥64,900
35104A — Plug, Automatic Transmission Case
90341-08001 Plug, Automatic Transmission Case
2021-12 → 2024-11 ended
VJA310 ¥120
35104B — Plug, Breather, NO.1 (ATM)
90930-03211 Plug, Breather, NO.1 (ATM)
2021-12 → 2024-11 ended
VJA310 ¥230
35104C — Plug, Breather, NO.2 (ATM)
90930-03220 Plug, Breather, NO.2 (ATM)
2021-12 → 2024-11 ended
VJA310 ¥200
35104M — Plug, Refill(ATM)
90341-18060 Plug, Refill(ATM)
2021-12 → 2024-11 ended
VJA310 ¥240
35104P — Gasket, Refill Plug(ATM)
90430-18008 Gasket, Refill Plug(ATM)
2021-12 → 2024-11 ended
VJA310 ¥110
35104Q — Plug, NO.1 (FOR TRANSAXLE CASE)
90341-18059 Plug, NO.1 (FOR TRANSAXLE CASE)
2021-12 → 2024-11 ended
VJA310 ¥190
35104V — Hose (FOR BREATHER PLUG)
90447-11083 Hose (FOR BREATHER PLUG)
2021-12 → 2024-11 ended
VJA310 ¥320
35104W — Pin, Straight (FOR TRANSAXLE CASE)
90250-11003 Pin, Straight (FOR TRANSAXLE CASE)
2021-12 → 2024-11 ended
VJA310 ¥90
35104X — Ring, O (FOR BREATHER PLUG)
90301-08015 Ring, O (FOR BREATHER PLUG)
2021-12 → 2024-11 ended
VJA310 ¥140
35104Y — Ring, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-15004 Ring, O (FOR AUTOMATIC TRANSMISSION CASE)
2021-12 → 2024-11 ended
VJA310 ¥160
35106 — Pan Sub-assy, Automatic Transmission Oil
35106-60240 Pan Sub-assy, Automatic Transmission Oil
2021-12 → 2024-11 ended
VJA310 ¥5,800
35106R — Gasket (FOR AUTOMATIC TRANSMISSION OIL PAN)
90430-12008 Gasket (FOR AUTOMATIC TRANSMISSION OIL PAN)
2021-12 → 2024-11 ended
VJA310 ¥90
35108F — Bolt, W/Washer
90119-06A34 Bolt, W/Washer
2021-12 → 2024-11 ended
VJA310 ¥60
35111Y — Ring, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-06196 Ring, O (FOR AUTOMATIC TRANSMISSION CASE)
2021-12 → 2024-11 ended
VJA310 ¥170
35125C — Tube, Transmission Oil Filler, NO.1
35125-60240 Tube, Transmission Oil Filler, NO.1
2021-12 → 2024-11 ended
VJA310 ¥120
35125H — Plug, Overflow(ATM)
90341-12034 Plug, Overflow(ATM)
2021-12 → 2024-11 ended
VJA310 ¥190
35141B — Plug (FOR AUTOMATIC TRANSMISSION CASE)
90341-14011 Plug (FOR AUTOMATIC TRANSMISSION CASE)
2021-12 → 2024-11 ended
VJA310 ¥190
35141G — Ring, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-11030 Ring, O (FOR AUTOMATIC TRANSMISSION CASE)
2021-12 → 2024-11 ended
VJA310 ¥140
35145C — Gasket, Transaxle Case
35145-11020 Gasket, Transaxle Case
2021-12 → 2024-11 ended
VJA310 ¥340
35159 — Gasket, Brake Drum
35159-60040 Gasket, Brake Drum
2021-12 → 2024-11 ended
VJA310 ¥200
35168 — Gasket, Automatic Transmission Oil Pan
35168-60040 Gasket, Automatic Transmission Oil Pan
2021-12 → 2024-11 ended
VJA310 ¥1,750
35173 — Cap, Transaxle Case NO.1
17703-47010 Cap, Transaxle Case NO.1
2023-05 → 2024-11 ended
VJA310 ¥70
35394 — Magnet, Oil Cleaner (FOR TRANSMISSION)
35394-30011 Magnet, Oil Cleaner (FOR TRANSMISSION)
2021-12 → 2024-11 ended
VJA310 ¥360
35979B — Insulator, Transmission, RH
35979-60030 Insulator, Transmission, RH
2021-12 → 2024-11 ended
VJA310 ¥1,410
36701C — Bearing, Ball
90363-38014 Bearing, Ball
2021-12 → 2024-11 ended
VJA310 ¥1,270
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
