Toyota Lexus LX600
2021-12 → present · chassis VJA310 · catalogue 792170 · Japan
Supported model
Data version 2022-01

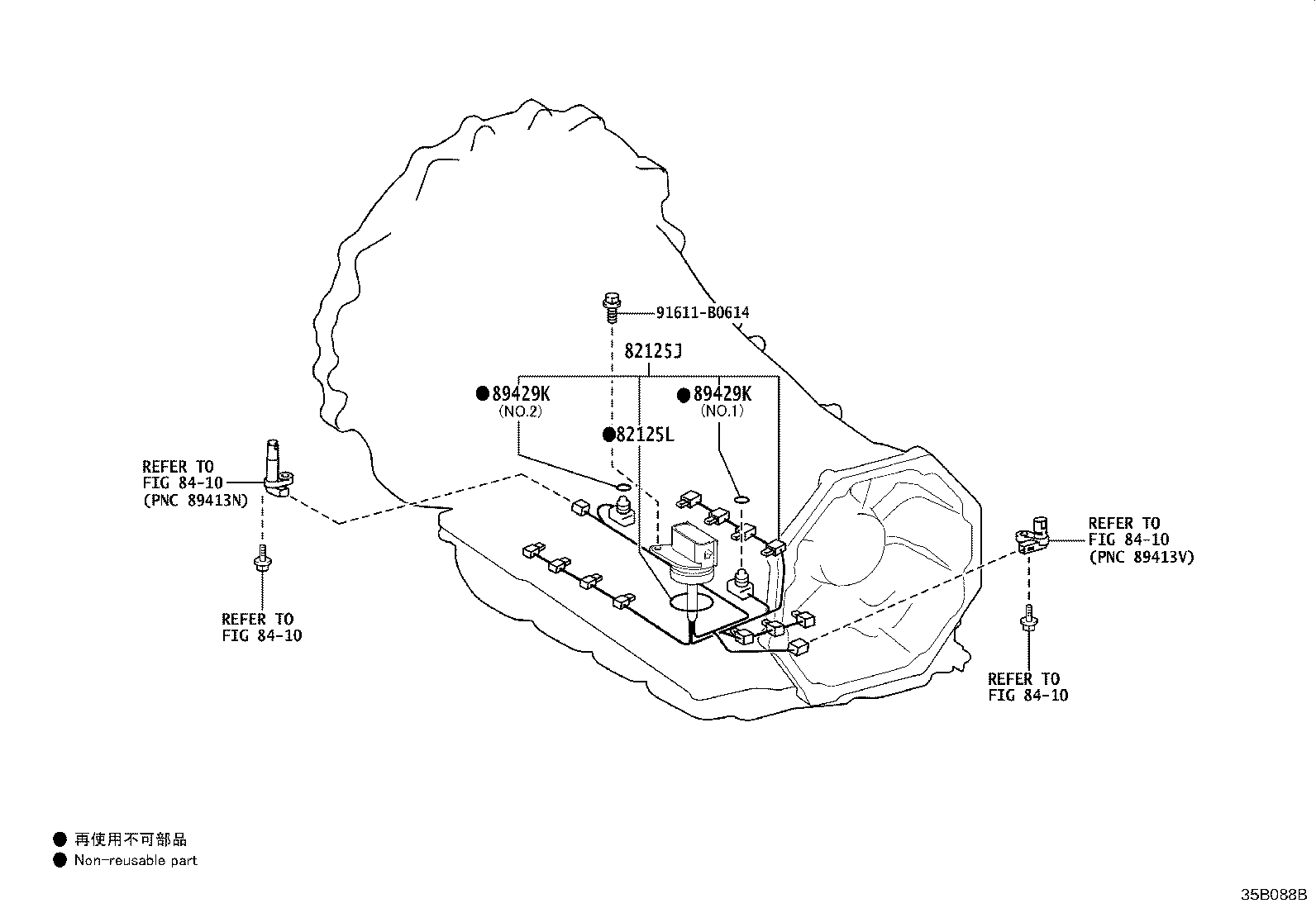

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82125J — Wire, Transmission | ||||
| 82125-60700 |
Wire, Transmission
2021-12 → 2024-11
ended
|
VJA310 | ¥2,680 | |
| 82125L — Ring, O(FOR TRANSMISSION WIRE) | ||||
| 90301-36014 |
Ring, O(FOR TRANSMISSION WIRE)
2021-12 → 2024-11
ended
|
VJA310 | ¥190 | |
| 89429K — Ring, O(FOR OIL TEMPERATURE SENSOR) | ||||
| 90301-06004 note |
Ring, O(FOR OIL TEMPERATURE SENSOR)
2021-12 → 2024-11
ended
|
VJA310 | ¥120 | |
| 90301-06025 note |
Ring, O(FOR OIL TEMPERATURE SENSOR)
2021-12 → 2024-11
ended
|
VJA310 | ¥130 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
