Toyota Lexus LX600

2021-12 → present · chassis VJA310 · catalogue 792170 · Japan

Supported model Data version 2022-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

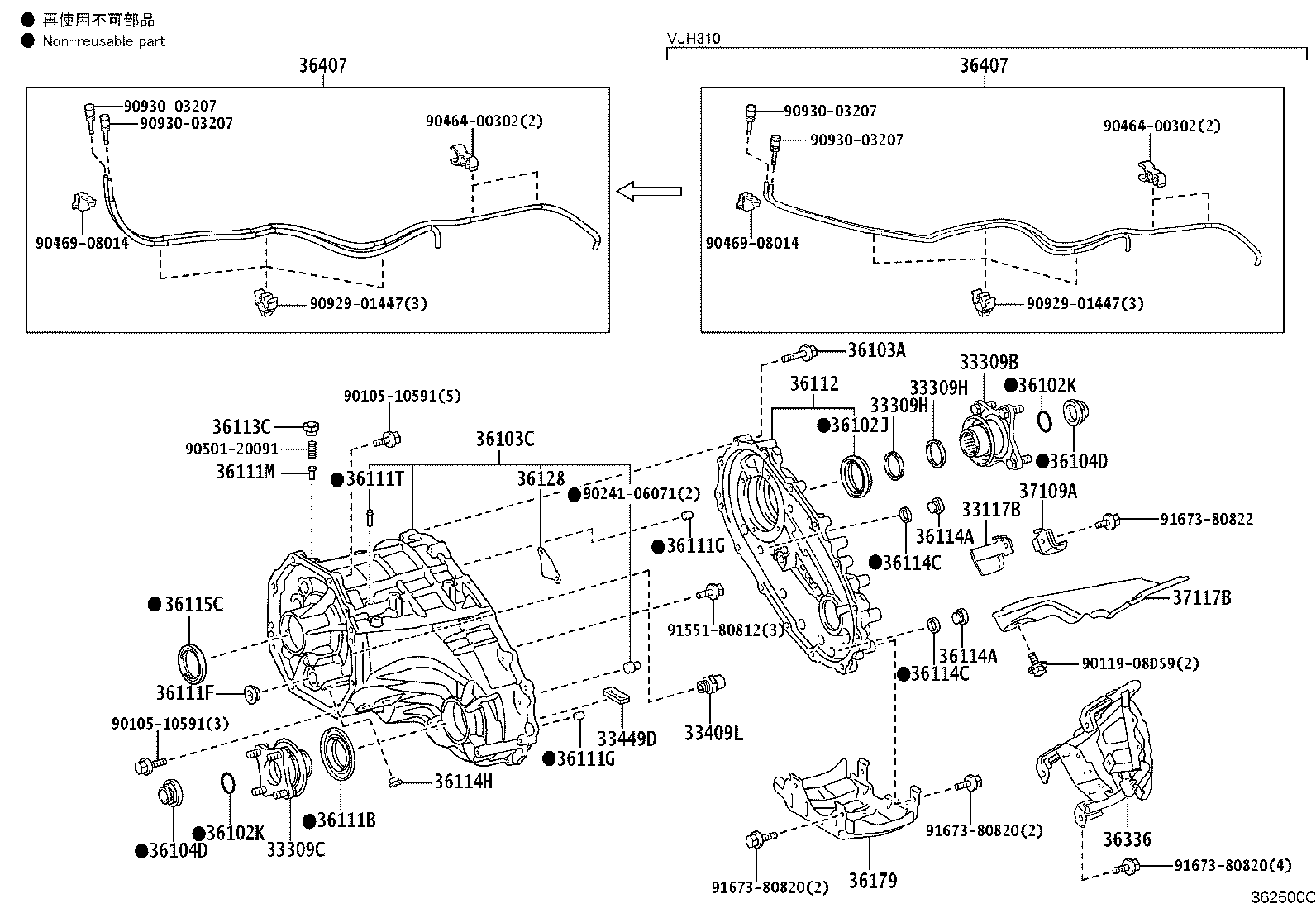

Exploded illustration 362500C 36407 — HOSE SUB-ASSY, TRANSFER BREATHER (1 parts) 36407 — HOSE SUB-ASSY, TRANSFER BREATHER (1 parts) 36114C — GASKET, NO.1 (FOR TRANSFER CASE) (1 parts) 36114C — GASKET, NO.1 (FOR TRANSFER CASE) (1 parts) 36336 — INSULATOR, TRANSFER HEAT (1 parts) 36179 — PROTECTOR, TRANSFER CASE LOWER (1 parts) 9010510591 — not listed in this catalogue 9010510591 — not listed in this catalogue 9167380820 — not listed in this catalogue 9167380820 — not listed in this catalogue 9167380820 — not listed in this catalogue 9093003207 — not listed in this catalogue 9092901447 — not listed in this catalogue 9092901447 — not listed in this catalogue 9046400302 — not listed in this catalogue 9046400302 — not listed in this catalogue 9093003207 — not listed in this catalogue 9093003207 — not listed in this catalogue 9093003207 — not listed in this catalogue 9046908014 — not listed in this catalogue 37109A — BRACKET SUB-ASSY, PROPELLER SHAFT HEAT INSULATOR (1 parts) 36104D — NUT (FOR TRANSFER OUTPUT SHAFT) (1 parts) 36102K — RING, O (1 parts) 33309C — FLANGE SUB-ASSY, OUTPUT SHAFT COMPANION (1 parts) 36111B — SEAL, OIL (FOR TRANSFER CASE) (1 parts) 36114H — PLUG, NO.2 (FOR TRANSFER CASE) (1 parts) 36111F — PLUG (FOR TRANSFER CASE) (1 parts) 36113C — PLUG (FOR TRANSFER CASE) (1 parts) 36111M — PIN, SLOTTED SPRING (FOR TRANSFER CASE) (1 parts) 36111G — PIN, STRAIGHT (FOR TRANSFER CASE) (1 parts) 36111T — TUBE (FOR TRANSFER CASE) (1 parts) 36128 — DEFLECTOR, BREATHER OIL (1 parts) 36103C — CASE, TRANSFER, FRONT (1 parts) 36103A — BOLT (FOR TRANSFER CASE) (1 parts) 33309H — WASHER, TRANSFER OUTPUT SHAFT (1 parts) 36102J — SEAL, TYPE T OIL (FOR TRANSFER COVER) (1 parts) 36114A — PLUG, TIGHT(FOR TRANSFER CASE) (1 parts) 36114A — PLUG, TIGHT(FOR TRANSFER CASE) (1 parts) 33309B — FLANGE SUB-ASSY, OUTPUT SHAFT COMPANION (1 parts) 36102K — RING, O (1 parts) 36104D — NUT (FOR TRANSFER OUTPUT SHAFT) (1 parts) 33309H — WASHER, TRANSFER OUTPUT SHAFT (1 parts) 36112 — CASE, TRANSFER, REAR (1 parts) 36111G — PIN, STRAIGHT (FOR TRANSFER CASE) (1 parts) 33449D — MAGNET (FOR TRANSFER CASE) (1 parts) 9050120091 — not listed in this catalogue 9024106071 — not listed in this catalogue 9155180812 — not listed in this catalogue 33117B — PROTECTOR, TRANSFER CASE (1 parts) 36115C — SEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING) (1 parts) 9167380822 — not listed in this catalogue 33409L — VALVE SUB-ASSY, TRANSFER OIL PUMP RELIEF (1 parts) 9011908D59 — not listed in this catalogue 37117B — INSULATOR, PROPELLER SHAFT HEAT (1 parts) 9046908014 — not listed in this catalogue
362500C · 35 callouts, 20 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
28 parts on this figure
Part number Description Fitment Price
33117B — Protector, Transfer Case
36179-60060 Protector, Transfer Case
2021-12 → 2024-11 ended
VJA310 ¥360
33309B — Flange Sub-assy, Output Shaft Companion
33309-60160 Flange Sub-assy, Output Shaft Companion
2021-12 → 2024-11 ended
VJA310 ¥7,400
33309C — Flange Sub-assy, Output Shaft Companion
33309-60170 Flange Sub-assy, Output Shaft Companion
2021-12 → 2024-11 ended
VJA310 ¥7,400
33309H — Washer, Transfer Output Shaft
36275-34010 note Washer, Transfer Output Shaft
2021-12 → 2024-11 ended
VJA310 ¥100
33409L — Valve Sub-assy, Transfer Oil Pump Relief
33409-60010 Valve Sub-assy, Transfer Oil Pump Relief
2021-12 → 2024-11 ended
VJA310 —
33449D — Magnet (FOR TRANSFER CASE)
33449-60010 Magnet (FOR TRANSFER CASE)
2021-12 → 2024-11 ended
VJA310 ¥310
36102J — Seal, Type T Oil (FOR TRANSFER COVER)
90311-50065 Seal, Type T Oil (FOR TRANSFER COVER)
2021-12 → 2024-11 ended
VJA310 ¥610
36102K — Ring, O
90301-31003 Ring, O
2021-12 → 2024-11 ended
VJA310 ¥210
36103A — Bolt (FOR TRANSFER CASE)
91551-00845 note Bolt (FOR TRANSFER CASE)
2021-12 → 2024-11 ended
VJA310 ¥100
36103C — Case, Transfer, Front
36103-60440 Case, Transfer, Front
2021-12 → 2024-11 ended
VJA310 ¥52,200
36104D — Nut (FOR TRANSFER OUTPUT SHAFT)
90179-24011 Nut (FOR TRANSFER OUTPUT SHAFT)
2021-12 → 2024-11 ended
VJA310 ¥220
36111B — Seal, Oil (FOR TRANSFER CASE)
90311-50066 Seal, Oil (FOR TRANSFER CASE)
2021-12 → 2024-11 ended
VJA310 ¥610
36111F — Plug (FOR TRANSFER CASE)
90341-24006 Plug (FOR TRANSFER CASE)
2021-12 → 2024-11 ended
VJA310 ¥230
36111G — Pin, Straight (FOR TRANSFER CASE)
90250-10214 note Pin, Straight (FOR TRANSFER CASE)
2021-12 → 2024-11 ended
VJA310 ¥120
36111M — Pin, Slotted Spring (FOR TRANSFER CASE)
90241-07003 Pin, Slotted Spring (FOR TRANSFER CASE)
2021-12 → 2024-11 ended
VJA310 ¥100
36111T — Tube (FOR TRANSFER CASE)
90441-05001 Tube (FOR TRANSFER CASE)
2021-12 → 2024-11 ended
VJA310 ¥180
36112 — Case, Transfer, Rear
36104-60070 Case, Transfer, Rear
2021-12 → 2024-11 ended
VJA310 ¥14,500
36113C — Plug (FOR TRANSFER CASE)
90341-14012 Plug (FOR TRANSFER CASE)
2021-12 → 2024-11 ended
VJA310 ¥190
36114A — Plug, Tight(FOR TRANSFER CASE)
90341-18060 Plug, Tight(FOR TRANSFER CASE)
2021-12 → 2024-11 ended
VJA310 ¥240
36114C — Gasket, NO.1 (FOR TRANSFER CASE)
90430-18008 Gasket, NO.1 (FOR TRANSFER CASE)
2021-12 → 2024-11 ended
VJA310 ¥110
36114H — Plug, NO.2 (FOR TRANSFER CASE)
90341-12004 Plug, NO.2 (FOR TRANSFER CASE)
2021-12 → 2024-11 ended
VJA310 ¥140
36115C — Seal, Type T Oil (FOR TRANSFER EXTENSION HOUSING)
90311-51009 Seal, Type T Oil (FOR TRANSFER EXTENSION HOUSING)
2021-12 → 2024-11 ended
VJA310 ¥540
36128 — Deflector, Breather Oil
36128-60080 Deflector, Breather Oil
2021-12 → 2024-11 ended
VJA310 ¥200
36179 — Protector, Transfer Case Lower
36179-60040 Protector, Transfer Case Lower
2021-12 → 2024-11 ended
VJA310 ¥2,630
36336 — Insulator, Transfer Heat
36336-60050 Insulator, Transfer Heat
2021-12 → 2024-11 ended
VJA310 ¥4,900
36407 — Hose Sub-assy, Transfer Breather
36407-60390 Hose Sub-assy, Transfer Breather
2021-12 → 2024-11 ended
VJA310 ¥3,040
37109A — Bracket Sub-assy, Propeller Shaft Heat Insulator
37109-60050 Bracket Sub-assy, Propeller Shaft Heat Insulator
2021-12 → 2024-11 ended
VJA310 ¥380
37117B — Insulator, Propeller Shaft Heat
37117-60090 Insulator, Propeller Shaft Heat
2021-12 → 2024-11 ended
VJA310 ¥2,300
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
