Toyota Lexus LX600
2021-12 → present · chassis VJA310 · catalogue 792170 · Japan
Supported model
Data version 2022-01

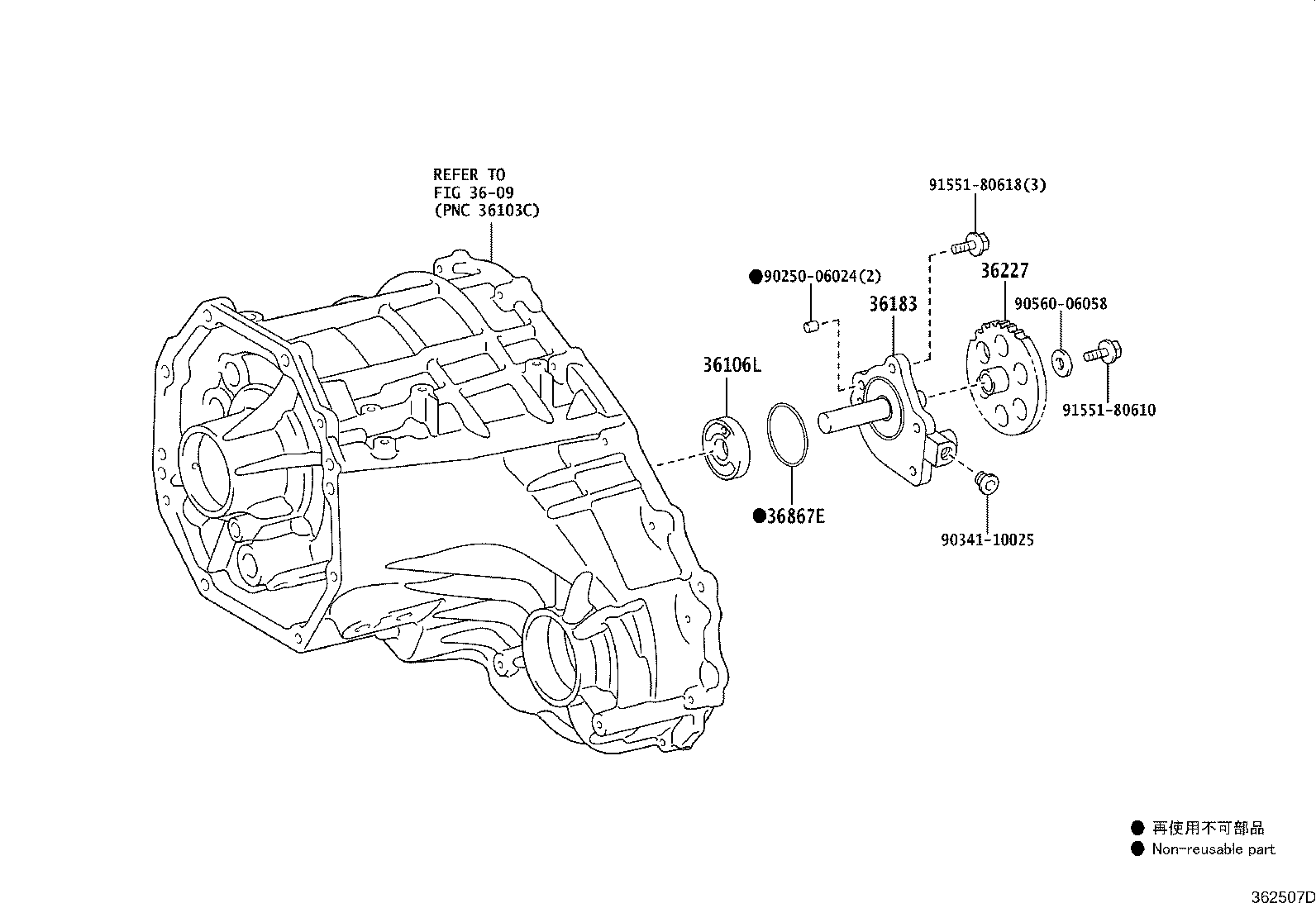

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 36106L — Rotor Set, Transfer Oil Pump | ||||
| 36106-60010 |
Rotor Set, Transfer Oil Pump
2021-12 → 2024-11
ended
|
VJA310 | ¥3,570 | |
| 36183 — Plate, Transfer Oil Pump | ||||
| 36183-60020 |
Plate, Transfer Oil Pump
2021-12 → 2024-11
ended
|
VJA310 | ¥1,800 | |
| 36227 — Gear, Transfer Oil Pump | ||||
| 36227-60010 |
Gear, Transfer Oil Pump
2021-12 → 2024-11
ended
|
VJA310 | ¥740 | |
| 36867E — Seal, Packing | ||||
| 36867-60100 |
Seal, Packing
2021-12 → 2024-11
ended
|
VJA310 | ¥270 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
