Toyota Lexus LX600

2021-12 → present · chassis VJA310 · catalogue 792170 · Japan

Supported model Data version 2022-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

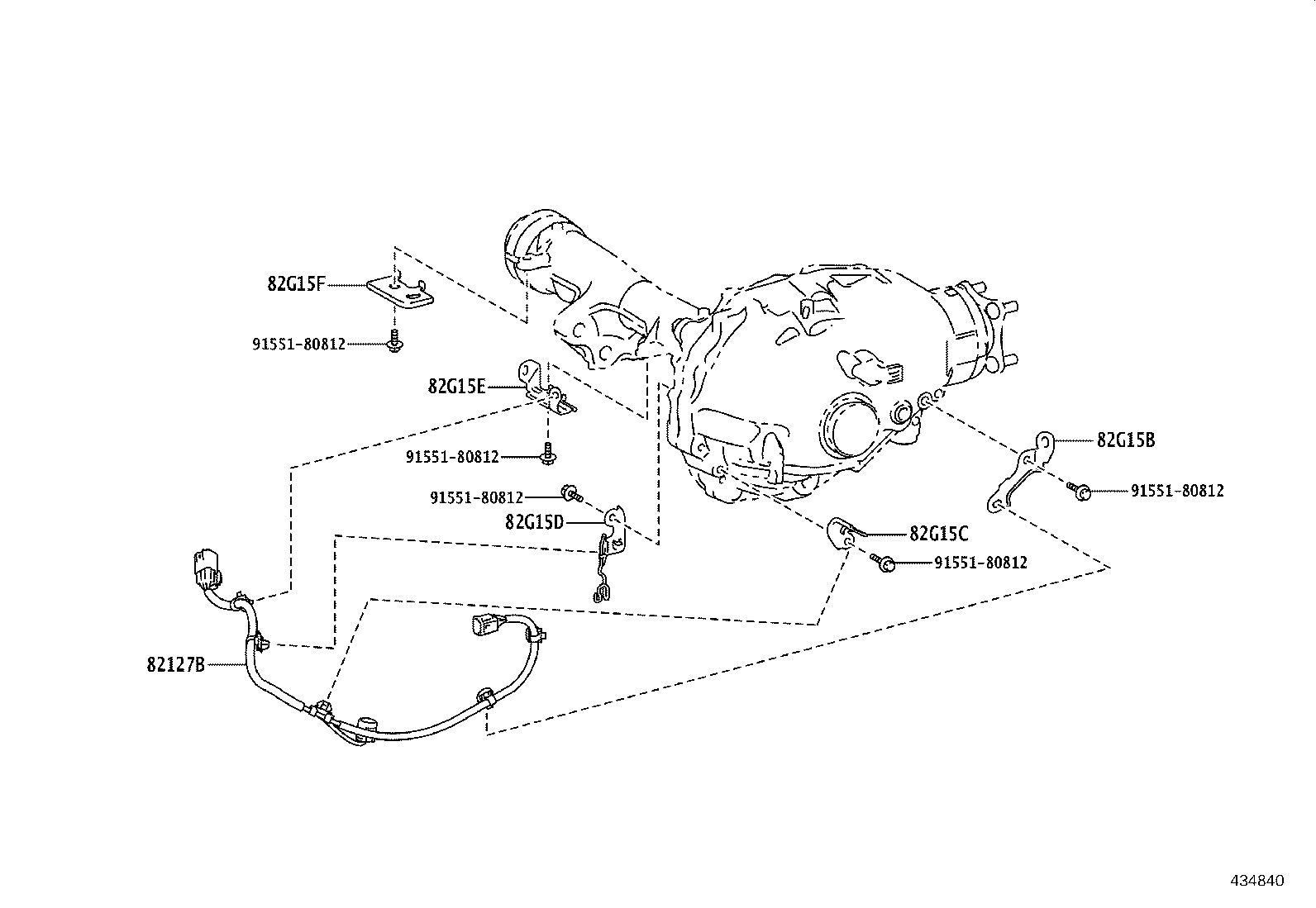

Exploded illustration 434840 9155180812 — not listed in this catalogue 9155180812 — not listed in this catalogue 9155180812 — not listed in this catalogue 9155180812 — not listed in this catalogue 9155180812 — not listed in this catalogue 82G15F — BRACKET, DIFFERENTIAL WIRE, NO.5 (1 parts) 82G15E — BRACKET, DIFFERENTIAL WIRE, NO.4 (1 parts) 82G15D — BRACKET, DIFFERENTIAL WIRE, NO.3 (1 parts) 82G15B — BRACKET, DIFFERENTIAL WIRE, NO.1 (1 parts) 82G15C — BRACKET, DIFFERENTIAL WIRE, NO.2 (1 parts) 82127B — WIRE, DIFFERENTIAL (1 parts)
434840 · 6 callouts, 5 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
6 parts on this figure
Part number Description Fitment Price
82127B — Wire, Differential
82127-60150 note Wire, Differential
2021-12 → 2024-11 ended
VJA310 ¥1,790
82G15B — Bracket, Differential Wire, NO.1
82715-60Q40 note Bracket, Differential Wire, NO.1
2021-12 → 2024-11 ended
VJA310 ¥300
82G15C — Bracket, Differential Wire, NO.2
82715-6A720 note Bracket, Differential Wire, NO.2
2021-12 → 2024-11 ended
VJA310 ¥220
82G15D — Bracket, Differential Wire, NO.3
82715-6A730 note Bracket, Differential Wire, NO.3
2021-12 → 2024-11 ended
VJA310 ¥310
82G15E — Bracket, Differential Wire, NO.4
82715-6A740 note Bracket, Differential Wire, NO.4
2021-12 → 2024-11 ended
VJA310 ¥330
82G15F — Bracket, Differential Wire, NO.5
82715-6AR20 note Bracket, Differential Wire, NO.5
2021-12 → 2024-11 ended
VJA310 ¥250
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
