Toyota Lexus LX600

2021-12 → present · chassis VJA310 · catalogue 792170 · Japan

Supported model Data version 2022-01

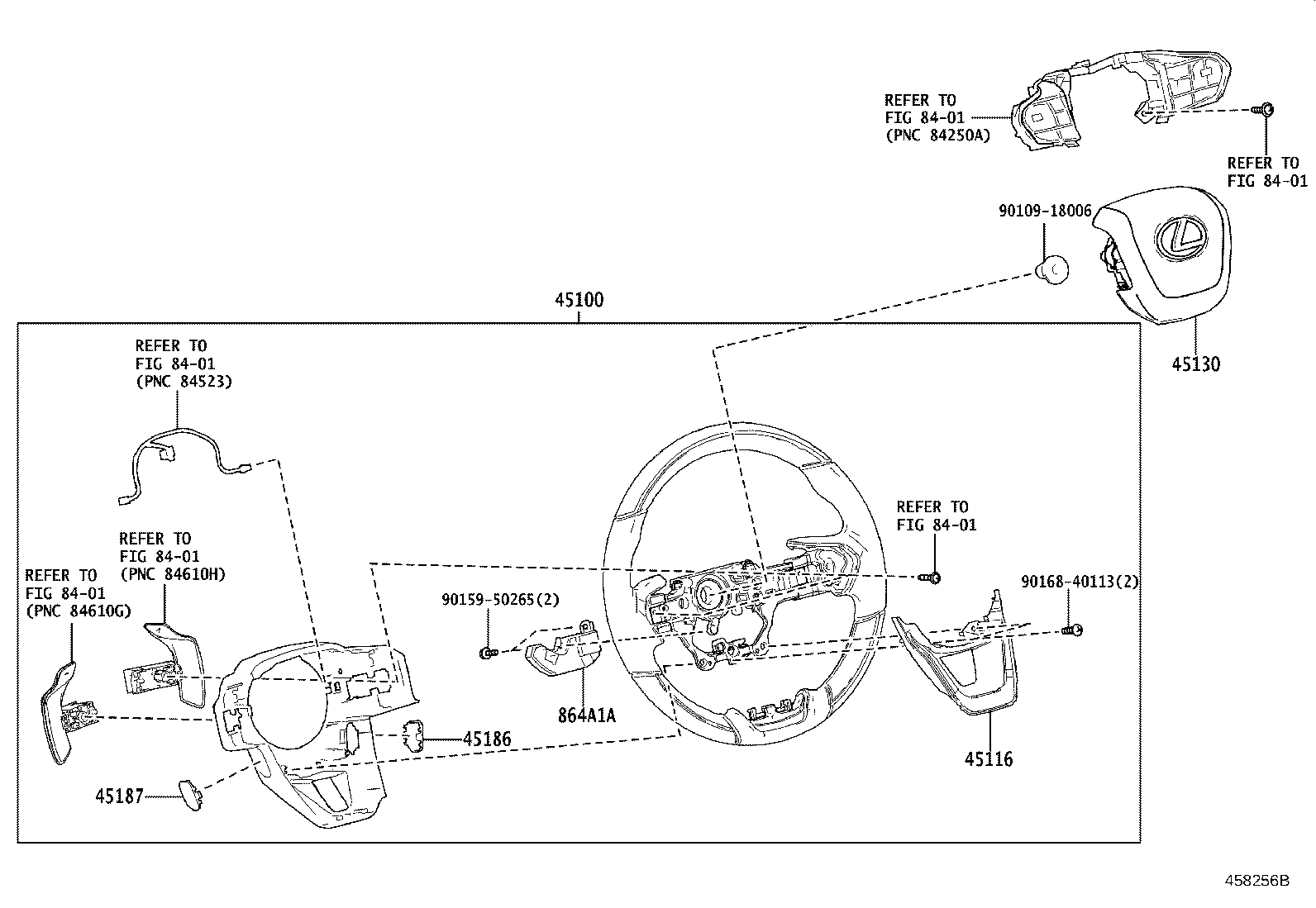

Exploded illustration 458256B 45130 — BUTTON ASSY, HORN (1 parts) 864A1A — COMPUTER, MULTIPLEX NETWORK STEERING (1 parts) 45186 — COVER, STEERING WHEEL, LOWER NO.2 (1 parts) 45187 — COVER, STEERING WHEEL, LOWER NO.3 (1 parts) 9010918006 — not listed in this catalogue 9015950265 — not listed in this catalogue 9016840113 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 45100 — WHEEL ASSY, STEERING (5 parts) 45116 — ORNAMENT, STEERING WHEEL, NO.1 (2 parts)
458256B · 6 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
11 parts on this figure
Part number Description Fitment Price
45100 — Wheel Assy, Steering
45100-60C50-C4 note Wheel Assy, Steering
2021-12 → 2024-11 ended
VJA310 ¥133,000
45100-60C50-C7 note Wheel Assy, Steering
2021-12 → 2024-11 ended
VJA310 ¥133,000
45100-60C50-C8 note Wheel Assy, Steering
2021-12 → 2024-11 ended
VJA310 ¥133,000
45100-60C50-C9 note Wheel Assy, Steering
2021-12 → 2024-11 ended
VJA310 ¥133,000
45100-60C80-C2 note Wheel Assy, Steering
2021-12 → 2024-11 ended
VJA310 ¥65,900
45116 — Ornament, Steering Wheel, NO.1
45116-60050 Ornament, Steering Wheel, NO.1
2021-12 → 2024-11 ended
VJA310 ¥1,780
45116-60060 note Ornament, Steering Wheel, NO.1
2021-12 → 2024-11 ended
VJA310 ¥1,780
45130 — Button Assy, Horn
45130-60700-C0 note Button Assy, Horn
2021-12 → 2024-11 ended
VJA310 ¥48,600
45186 — Cover, Steering Wheel, Lower NO.2
45186-78010-C0 note Cover, Steering Wheel, Lower NO.2
2021-12 → 2024-11 ended
VJA310 ¥80
45187 — Cover, Steering Wheel, Lower NO.3
45187-78010-C0 note Cover, Steering Wheel, Lower NO.3
2021-12 → 2024-11 ended
VJA310 ¥80
864A1A — Computer, Multiplex Network Steering
864A1-78020 Computer, Multiplex Network Steering
2021-12 → 2024-11 ended
VJA310 ¥7,000
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
