Toyota Lexus LX600
2021-12 → present · chassis VJA310 · catalogue 792170 · Japan
Supported model
Data version 2022-01

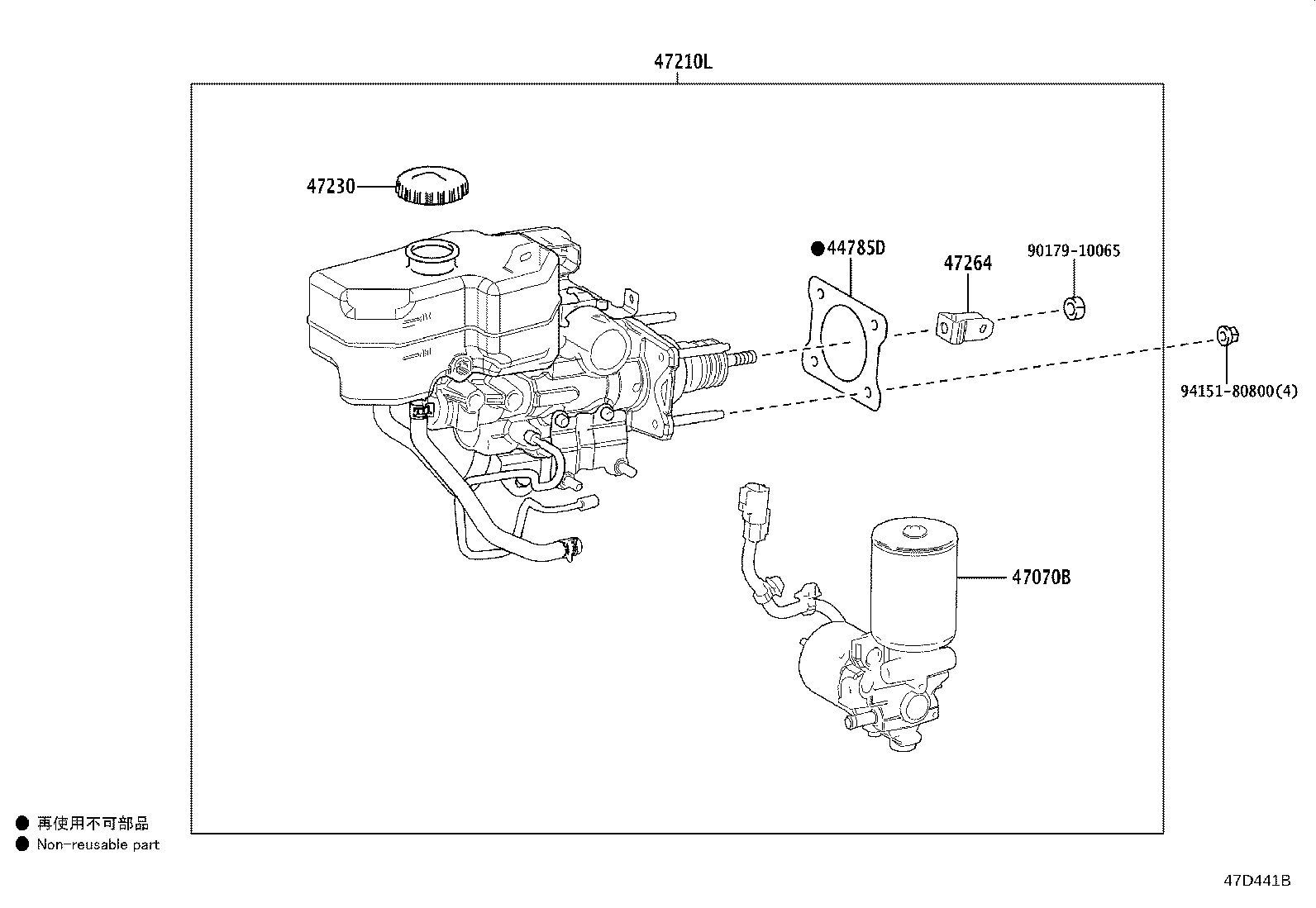

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 44785D — Gasket, Brake Master Cylinder | ||||
| 44785-12040 |
Gasket, Brake Master Cylinder
2021-12 → 2024-11
ended
|
VJA310 | ¥200 | |
| 47070B — Pump Assy, Brake Booster W/Accumulator | ||||
| 47070-48100 |
Pump Assy, Brake Booster W/Accumulator
2021-12 → 2023-10
ended
|
VJA310 | ¥68,000 | |
| 47210L — Brake Booster Assy, W/Master Cylinder | ||||
| 47050-60B40 note |
Brake Booster Assy, W/Master Cylinder
2021-12 → 2023-10
ended
|
VJA310 | ¥147,000 | |
| 47050-60C30 note |
Brake Booster Assy, W/Master Cylinder
2023-10 → 2024-11
ended
|
VJA310 | ¥147,000 | |
| 47230 — Cap Assy, Brake Master Cylinder Reservoir Filler | ||||
| 47230-47090 |
Cap Assy, Brake Master Cylinder Reservoir Filler
2021-12 → 2024-11
ended
|
VJA310 | ¥770 | |
| 47264 — Clevis, Master Cylinder Push Rod | ||||
| 47264-63020 |
Clevis, Master Cylinder Push Rod
2021-12 → 2024-11
ended
|
VJA310 | ¥260 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
