Toyota Lexus LX600
2021-12 → present · chassis VJA310 · catalogue 792170 · Japan
Supported model
Data version 2022-01

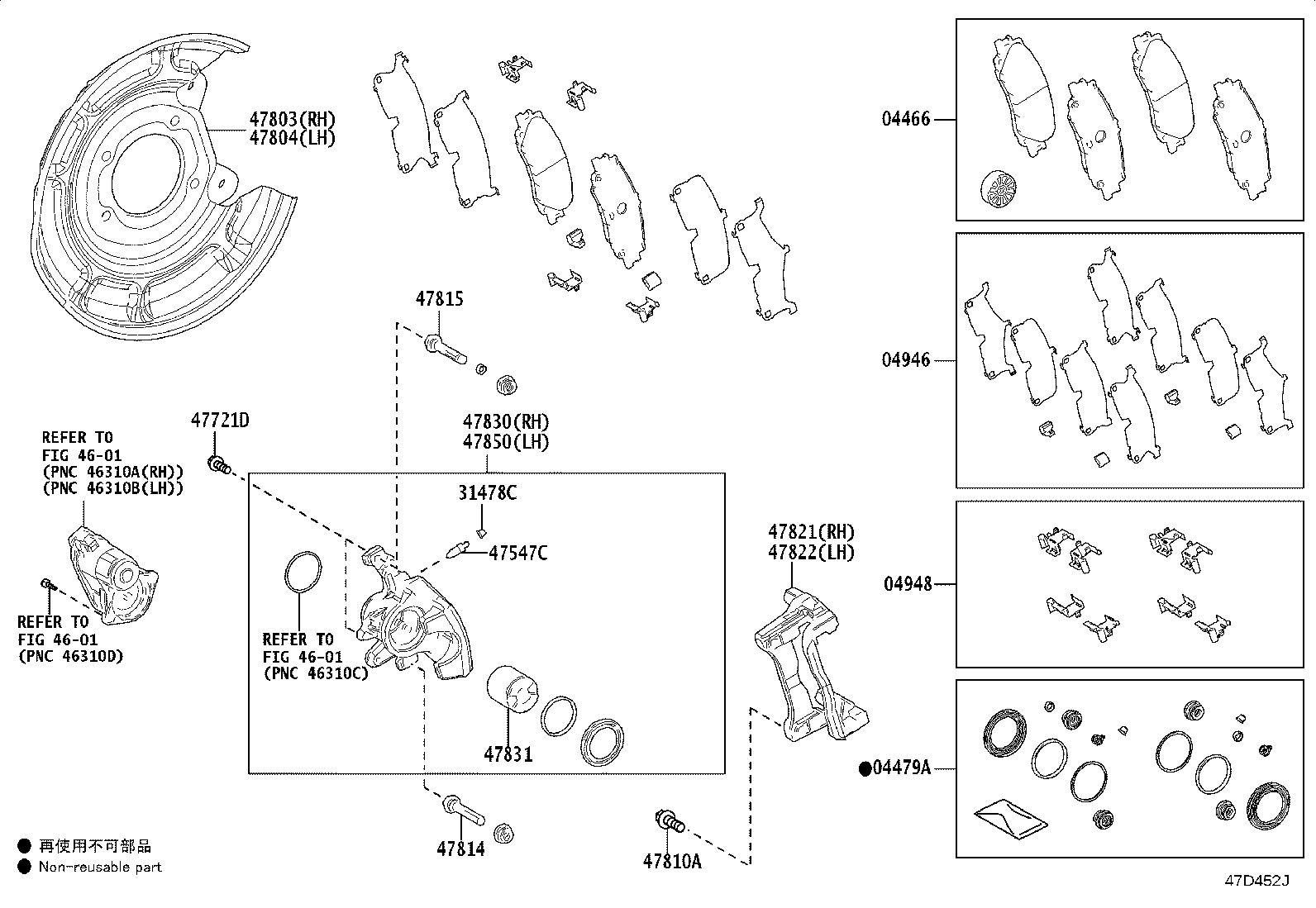

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 04466 — Pad Kit, Disc Brake, Rear | ||||
| 04466-60190 note |
Pad Kit, Disc Brake, Rear
2021-12 → 2022-10
ended
|
VJA310 | ¥8,000 | |
| 04466-60191 note |
Pad Kit, Disc Brake, Rear
2022-10 → 2024-11
ended
|
VJA310 | ¥8,000 | |
| 04479A — Cylinder Kit, Disc Brake, Rear | ||||
| 04479-60280 |
Cylinder Kit, Disc Brake, Rear
2021-12 → 2024-11
ended
|
VJA310 | ¥2,130 | |
| 04946 — Shim Kit, Anti Squeal(FOR REAR DISC BRAKE) | ||||
| 04946-60150 |
Shim Kit, Anti Squeal(FOR REAR DISC BRAKE)
2021-12 → 2024-11
ended
|
VJA310 | ¥1,780 | |
| 04948 — Fitting Kit, Disc Brake, Rear | ||||
| 04948-60050 |
Fitting Kit, Disc Brake, Rear
2021-12 → 2024-11
ended
|
VJA310 | ¥1,390 | |
| 31478C — Cap, Bleeder Plug(FOR REAR DISC BRAKE) | ||||
| 31478-30010 |
Cap, Bleeder Plug(FOR REAR DISC BRAKE)
2021-12 → 2024-11
ended
|
VJA310 | ¥160 | |
| 47547C — Plug, Bleeder(FOR REAR DISC BRAKE) | ||||
| 47547-12010 |
Plug, Bleeder(FOR REAR DISC BRAKE)
2021-12 → 2024-11
ended
|
VJA310 | ¥180 | |
| 47721D — Bolt(FOR REAR DISC BRAKE CYLINDER MOUTING) | ||||
| 90015-AA606 note |
Bolt(FOR REAR DISC BRAKE CYLINDER MOUTING)
2021-12 → 2024-11
ended
|
VJA310 | ¥270 | |
| 47803 — Cover Sub-assy, Disc Brake Dust, Rear RH | ||||
| 47803-60011 |
Cover Sub-assy, Disc Brake Dust, Rear RH
2021-12 → 2022-08
ended
|
VJA310 | ¥17,500 | |
| 47803-60012 |
Cover Sub-assy, Disc Brake Dust, Rear RH
2022-09 → 2024-11
ended
|
VJA310 | ¥15,900 | |
| 47804 — Cover Sub-assy, Disc Brake Dust, Rear LH | ||||
| 47804-60011 |
Cover Sub-assy, Disc Brake Dust, Rear LH
2021-12 → 2022-08
ended
|
VJA310 | ¥17,500 | |
| 47804-60012 |
Cover Sub-assy, Disc Brake Dust, Rear LH
2022-09 → 2024-11
ended
|
VJA310 | ¥15,900 | |
| 47810A — Bolt, Hexagon(FOR REAR CALIPER) | ||||
| 90119-14169 |
Bolt, Hexagon(FOR REAR CALIPER)
2021-12 → 2024-11
ended
|
VJA310 | ¥240 | |
| 47814 — Pin, Cylinder Slide, NO.1(FOR REAR DISC BRAKE) | ||||
| 47814-60130 |
Pin, Cylinder Slide, NO.1(FOR REAR DISC BRAKE)
2021-12 → 2024-11
ended
|
VJA310 | ¥510 | |
| 47815 — Pin, Rear Cylinder Slide, NO.2(FOR REAR DISC BRAKE) | ||||
| 47815-60130 |
Pin, Rear Cylinder Slide, NO.2(FOR REAR DISC BRAKE)
2021-12 → 2024-11
ended
|
VJA310 | ¥510 | |
| 47821 — Mounting, Rear Disc Brake Cylinder, RH | ||||
| 47821-60110 |
Mounting, Rear Disc Brake Cylinder, RH
2021-12 → 2024-11
ended
|
VJA310 | ¥5,200 | |
| 47821-60140 note |
Mounting, Rear Disc Brake Cylinder, RH
2021-12 → 2024-11
ended
|
VJA310 | ¥5,800 | |
| 47822 — Mounting, Rear Disc Brake Cylinder, LH | ||||
| 47822-60100 |
Mounting, Rear Disc Brake Cylinder, LH
2021-12 → 2024-11
ended
|
VJA310 | ¥5,200 | |
| 47822-60130 note |
Mounting, Rear Disc Brake Cylinder, LH
2021-12 → 2024-11
ended
|
VJA310 | ¥5,800 | |
| 47830 — Cylinder Assy, Disc Brake, Rear RH | ||||
| 47830-60110 |
Cylinder Assy, Disc Brake, Rear RH
2021-12 → 2024-11
ended
|
VJA310 | ¥26,100 | |
| 47830-60140 note |
Cylinder Assy, Disc Brake, Rear RH
2021-12 → 2024-11
ended
|
VJA310 | ¥28,700 | |
| 47831 — Piston, Rear Disc Brake | ||||
| 47831-60130 |
Piston, Rear Disc Brake
2021-12 → 2024-11
ended
|
VJA310 | ¥1,180 | |
| 47850 — Cylinder Assy, Disc Brake, Rear LH | ||||
| 47850-60100 |
Cylinder Assy, Disc Brake, Rear LH
2021-12 → 2024-11
ended
|
VJA310 | ¥26,100 | |
| 47850-60130 note |
Cylinder Assy, Disc Brake, Rear LH
2021-12 → 2024-11
ended
|
VJA310 | ¥28,700 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
