Toyota Lexus LX600
2021-12 → present · chassis VJA310 · catalogue 792170 · Japan
Supported model
Data version 2022-01

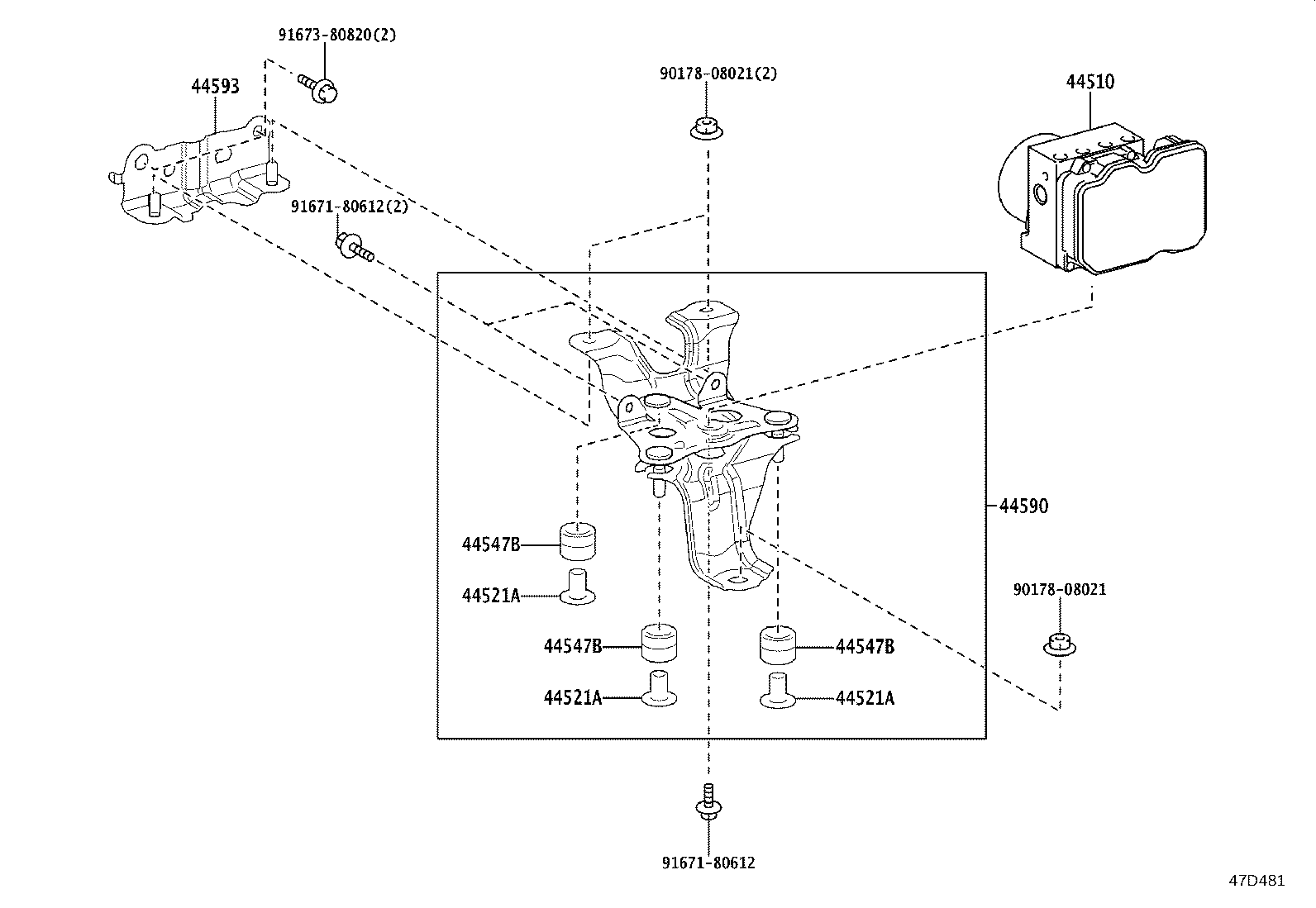

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 44510 — Actuator Assy, Brake | ||||
| 44050-60570 note |
Actuator Assy, Brake
2021-12 → 2022-10
ended
|
VJA310 | ¥166,000 | |
| 44050-60571 note |
Actuator Assy, Brake
2022-11 → 2023-10
ended
|
VJA310 | ¥166,000 | |
| 44050-60G80 note |
Actuator Assy, Brake
2023-10 → 2024-11
ended
|
VJA310 | ¥167,000 | |
| 44521A — Collar, Brake Actuator Case, NO.1 | ||||
| 44521-33020 |
Collar, Brake Actuator Case, NO.1
2021-12 → 2024-11
ended
|
VJA310 | ¥190 | |
| 44547B — Cushion, Brake Actuator Bracket | ||||
| 44547-33100 |
Cushion, Brake Actuator Bracket
2021-12 → 2024-11
ended
|
VJA310 | ¥190 | |
| 44590 — Bracket Assy, Brake Actuator | ||||
| 44590-60070 |
Bracket Assy, Brake Actuator
2021-12 → 2024-11
ended
|
VJA310 | ¥2,280 | |
| 44593 — Bracket, Brake Actuator, NO.3 | ||||
| 44593-60040 |
Bracket, Brake Actuator, NO.3
2021-12 → 2024-11
ended
|
VJA310 | ¥840 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
