Toyota Lexus LX600

2021-12 → present · chassis VJA310 · catalogue 792170 · Japan

Supported model Data version 2022-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

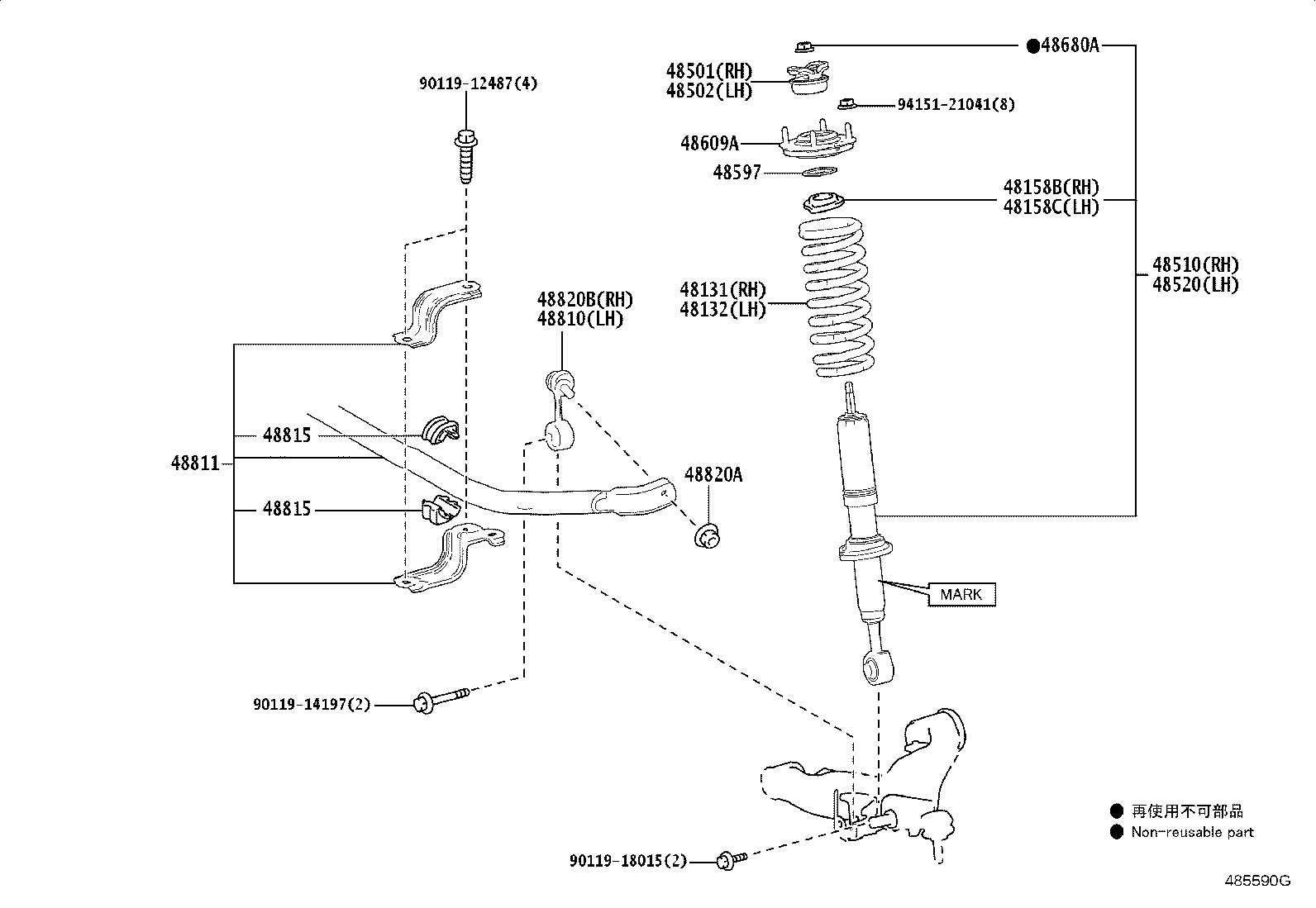

Exploded illustration 485590G 48811 — BAR, STABILIZER, FRONT (1 parts) 48131 — SPRING, FRONT COIL, RH (2 parts) 48132 — SPRING, FRONT COIL, LH (2 parts) 48820B — LINK ASSY, FRONT STABILIZER, RH (1 parts) 48810 — LINK ASSY, FRONT STABILIZER, LH (1 parts) 48158B — INSULATOR, FRONT COIL SPRING, LOWER RH (1 parts) 48158C — INSULATOR, FRONT COIL SPRING, LOWER LH (1 parts) 48510 — ABSORBER ASSY, SHOCK, FRONT RH (1 parts) 48520 — ABSORBER ASSY, SHOCK, FRONT LH (1 parts) 48501 — BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, UPPER RH (1 parts) 48502 — BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, UPPER LH (1 parts) 9011918015 — not listed in this catalogue 9011914197 — not listed in this catalogue 48820A — NUT(FOR FRONT STABILIZER LINK) (1 parts) 48609A — SUPPORT SUB-ASSY, FRONT SUSPENSION (1 parts) 48680A — NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER) (1 parts) 48597 — RETAINER, SHOCK ABSORBER CUSHION (1 parts) 9011912487 — not listed in this catalogue 9415121041 — not listed in this catalogue 48815 — BUSH, FRONT STABILIZER BAR, NO.1 (1 parts) 48815 — BUSH, FRONT STABILIZER BAR, NO.1 (1 parts)
485590G · 17 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
18 parts on this figure
Part number Description Fitment Price
48131 — Spring, Front Coil, RH
48131-60P70 Spring, Front Coil, RH
2021-12 → 2024-04 ended
VJA310 ¥9,300
48131-60P71 Spring, Front Coil, RH
2024-05 → 2024-11 ended
VJA310 ¥8,400
48132 — Spring, Front Coil, LH
48131-60P70 Spring, Front Coil, LH
2021-12 → 2024-04 ended
VJA310 ¥9,300
48131-60P71 Spring, Front Coil, LH
2024-05 → 2024-11 ended
VJA310 ¥8,400
48158B — Insulator, Front Coil Spring, Lower RH
48158-60020 Insulator, Front Coil Spring, Lower RH
2021-12 → 2024-11 ended
VJA310 ¥580
48158C — Insulator, Front Coil Spring, Lower LH
48158-60020 Insulator, Front Coil Spring, Lower LH
2021-12 → 2024-11 ended
VJA310 ¥580
48501 — Bracket Sub-assy, Front Shock Absorber, Upper RH
48501-60040 Bracket Sub-assy, Front Shock Absorber, Upper RH
2021-12 → 2024-11 ended
VJA310 ¥1,080
48502 — Bracket Sub-assy, Front Shock Absorber, Upper LH
48501-60040 Bracket Sub-assy, Front Shock Absorber, Upper LH
2021-12 → 2024-11 ended
VJA310 ¥1,080
48510 — Absorber Assy, Shock, Front RH
48510-80B88 note Absorber Assy, Shock, Front RH
2021-12 → 2024-11 ended
VJA310 ¥18,500
48520 — Absorber Assy, Shock, Front LH
48510-80B88 note Absorber Assy, Shock, Front LH
2021-12 → 2024-11 ended
VJA310 ¥18,500
48597 — Retainer, Shock Absorber Cushion
48597-60110 Retainer, Shock Absorber Cushion
2021-12 → 2024-11 ended
VJA310 ¥490
48609A — Support Sub-assy, Front Suspension
48609-60080 Support Sub-assy, Front Suspension
2021-12 → 2024-11 ended
VJA310 ¥4,220
48680A — Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
94188-01601 Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
2021-12 → 2024-11 ended
VJA310 ¥160
48810 — Link Assy, Front Stabilizer, LH
48820-60120 Link Assy, Front Stabilizer, LH
2021-12 → 2024-11 ended
VJA310 ¥5,100
48811 — Bar, Stabilizer, Front
48804-60190 Bar, Stabilizer, Front
2021-12 → 2024-11 ended
VJA310 ¥29,800
48815 — Bush, Front Stabilizer Bar, NO.1
48815-60440 Bush, Front Stabilizer Bar, NO.1
2021-12 → 2024-11 ended
VJA310 ¥1,600
48820A — Nut(FOR FRONT STABILIZER LINK)
94151-21441 Nut(FOR FRONT STABILIZER LINK)
2021-12 → 2024-11 ended
VJA310 ¥120
48820B — Link Assy, Front Stabilizer, RH
48820-60120 Link Assy, Front Stabilizer, RH
2021-12 → 2024-11 ended
VJA310 ¥5,100
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
