Toyota Lexus LX600

2021-12 → present · chassis VJA310 · catalogue 792170 · Japan

Supported model Data version 2022-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

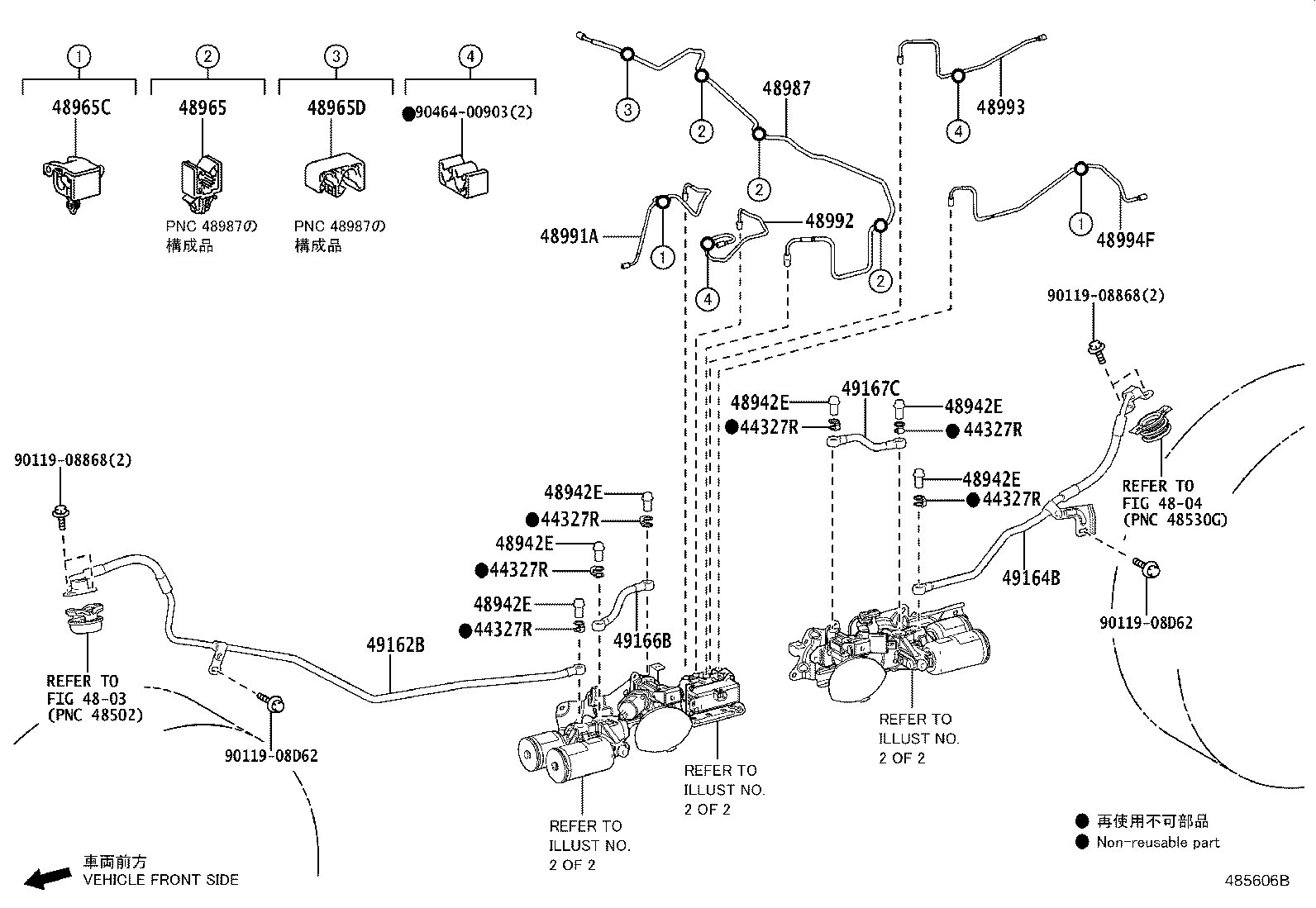

Exploded illustration 485606B 49166B — TUBE ASSY, SUSPENSION CONTROL PRESSURE, NO.6 (1 parts) 49167C — TUBE ASSY, SUSPENSION CONTROL PRESSURE, NO.7 (1 parts) 48987 — TUBE, HEIGHT CONTROL, NO.7 (1 parts) 48991A — TUBE, HEIGHT CONTROL, LH NO.1 (1 parts) 44327R — GASKET, PRESSURE PORT, NO.2 (1 parts) 48942E — BOLT, UNION, NO.2 (1 parts) 48942E — BOLT, UNION, NO.2 (1 parts) 48942E — BOLT, UNION, NO.2 (1 parts) 48942E — BOLT, UNION, NO.2 (1 parts) 48942E — BOLT, UNION, NO.2 (1 parts) 48942E — BOLT, UNION, NO.2 (1 parts) 44327R — GASKET, PRESSURE PORT, NO.2 (1 parts) 44327R — GASKET, PRESSURE PORT, NO.2 (1 parts) 44327R — GASKET, PRESSURE PORT, NO.2 (1 parts) 44327R — GASKET, PRESSURE PORT, NO.2 (1 parts) 44327R — GASKET, PRESSURE PORT, NO.2 (1 parts) 48992 — TUBE, HEIGHT CONTROL, LH NO.2 (1 parts) 48993 — TUBE, HEIGHT CONTROL, LH NO.3 (1 parts) 48994F — TUBE, HEIGHT CONTROL, LH NO.4 (1 parts) 49162B — HOSE, SUSPENSION CONTROL PRESSURE, NO.2 (1 parts) 49164B — HOSE, SUSPENSION CONTROL PRESSURE, NO.4 (1 parts) 48965C — CLAMP, HEIGHT CONTROL TUBE, NO.1 (1 parts) 48965 — CLAMP, HEIGHT CONTROL TUBE (1 parts) 48965D — CLAMP, HEIGHT CONTROL TUBE, NO.2 (1 parts) 9011908D62 — not listed in this catalogue 9011908D62 — not listed in this catalogue 9011908868 — not listed in this catalogue 9011908868 — not listed in this catalogue 4803 — not listed in this catalogue 4804 — not listed in this catalogue 9046400903 — not listed in this catalogue
485606B · 24 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
14 parts on this figure
Part number Description Fitment Price
44327R — Gasket, Pressure Port, NO.2
90430-16016 Gasket, Pressure Port, NO.2
2021-12 → 2024-11 ended
VJA310 ¥80
48942E — Bolt, Union, NO.2
96341-41603 Bolt, Union, NO.2
2021-12 → 2024-11 ended
VJA310 ¥310
48965 — Clamp, Height Control Tube
48965-60250 Clamp, Height Control Tube
2021-12 → 2024-11 ended
VJA310 ¥240
48965C — Clamp, Height Control Tube, NO.1
48965-60260 Clamp, Height Control Tube, NO.1
2021-12 → 2024-11 ended
VJA310 ¥200
48965D — Clamp, Height Control Tube, NO.2
48965-60270 Clamp, Height Control Tube, NO.2
2021-12 → 2024-11 ended
VJA310 ¥220
48987 — Tube, Height Control, NO.7
48987-60050 Tube, Height Control, NO.7
2021-12 → 2024-11 ended
VJA310 ¥11,700
48991A — Tube, Height Control, LH NO.1
48991-60020 Tube, Height Control, LH NO.1
2021-12 → 2024-11 ended
VJA310 ¥700
48992 — Tube, Height Control, LH NO.2
48992-60020 Tube, Height Control, LH NO.2
2021-12 → 2024-11 ended
VJA310 ¥630
48993 — Tube, Height Control, LH NO.3
48993-60030 Tube, Height Control, LH NO.3
2021-12 → 2024-11 ended
VJA310 ¥630
48994F — Tube, Height Control, LH NO.4
48994-60040 Tube, Height Control, LH NO.4
2021-12 → 2024-11 ended
VJA310 ¥680
49162B — Hose, Suspension Control Pressure, NO.2
49162-60050 Hose, Suspension Control Pressure, NO.2
2021-12 → 2024-11 ended
VJA310 ¥17,800
49164B — Hose, Suspension Control Pressure, NO.4
49164-60050 Hose, Suspension Control Pressure, NO.4
2021-12 → 2024-11 ended
VJA310 ¥13,400
49166B — Tube Assy, Suspension Control Pressure, NO.6
49166-60010 Tube Assy, Suspension Control Pressure, NO.6
2021-12 → 2024-11 ended
VJA310 ¥6,600
49167C — Tube Assy, Suspension Control Pressure, NO.7
49167-60010 Tube Assy, Suspension Control Pressure, NO.7
2021-12 → 2024-11 ended
VJA310 ¥6,400
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
