Toyota Lexus LX600

2021-12 → present · chassis VJA310 · catalogue 792170 · Japan

Supported model Data version 2022-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

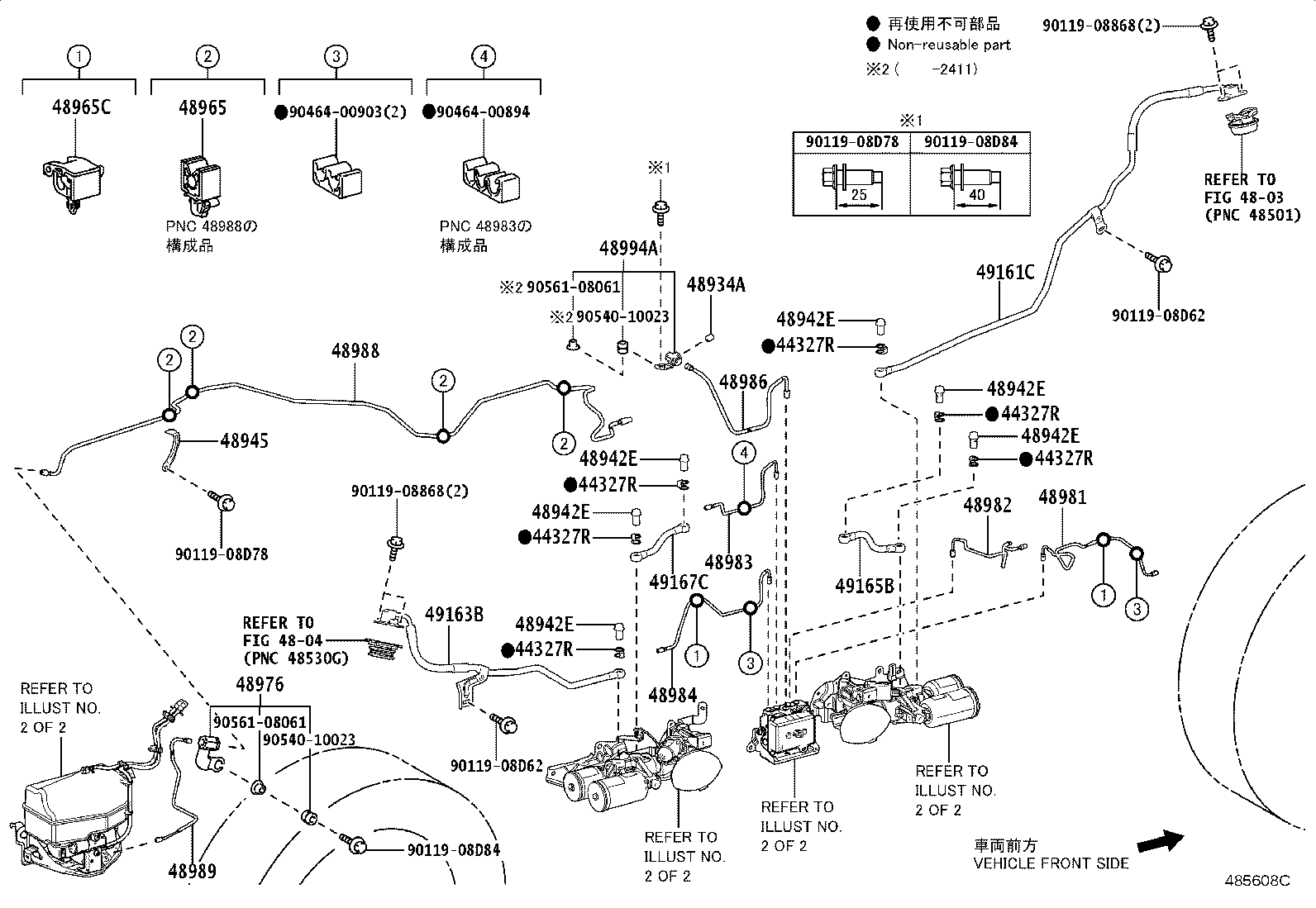

Exploded illustration 485608C 9046400894 — not listed in this catalogue 48945 — BRACKET, HEIGHT CONTROL HOSE, RH (1 parts) 48989 — TUBE, HEIGHT CONTROL, NO.9 (1 parts) 48988 — TUBE, HEIGHT CONTROL, NO.8 (1 parts) 49163B — HOSE, SUSPENSION CONTROL PRESSURE, NO.3 (1 parts) 48976 — WAY, HEIGHT CONTROL (1 parts) 9056108061 — not listed in this catalogue 9054010023 — not listed in this catalogue 9056108061 — not listed in this catalogue 9054010023 — not listed in this catalogue 48934A — PLUG, HEIGHT CONTROL (1 parts) 48981 — TUBE, HEIGHT CONTROL, NO.1 (1 parts) 48982 — TUBE, HEIGHT CONTROL, NO.2 (1 parts) 48984 — TUBE, HEIGHT CONTROL, NO.4 (1 parts) 48983 — TUBE, HEIGHT CONTROL, NO.3 (1 parts) 49165B — TUBE ASSY, SUSPENSION CONTROL PRESSURE, NO.5 (1 parts) 49161C — HOSE, SUSPENSION CONTROL PRESSURE, NO.1 (1 parts) 49167C — TUBE ASSY, SUSPENSION CONTROL PRESSURE, NO.7 (1 parts) 48986 — TUBE, HEIGHT CONTROL, NO.6 (1 parts) 48994A — WAY, NO.1(FOR REAR HEIGHT CONTROL TUBE) (1 parts) 4804 — not listed in this catalogue 4803 — not listed in this catalogue 9011908D84 — not listed in this catalogue 9011908868 — not listed in this catalogue 9011908868 — not listed in this catalogue 9011908D62 — not listed in this catalogue 9011908D78 — not listed in this catalogue 9011908D62 — not listed in this catalogue 44327R — GASKET, PRESSURE PORT, NO.2 (1 parts) 48942E — BOLT, UNION, NO.2 (1 parts) 44327R — GASKET, PRESSURE PORT, NO.2 (1 parts) 48942E — BOLT, UNION, NO.2 (1 parts) 44327R — GASKET, PRESSURE PORT, NO.2 (1 parts) 48942E — BOLT, UNION, NO.2 (1 parts) 44327R — GASKET, PRESSURE PORT, NO.2 (1 parts) 48942E — BOLT, UNION, NO.2 (1 parts) 44327R — GASKET, PRESSURE PORT, NO.2 (1 parts) 48942E — BOLT, UNION, NO.2 (1 parts) 44327R — GASKET, PRESSURE PORT, NO.2 (1 parts) 48942E — BOLT, UNION, NO.2 (1 parts) 48965C — CLAMP, HEIGHT CONTROL TUBE, NO.1 (1 parts) 48965 — CLAMP, HEIGHT CONTROL TUBE (1 parts) 9046400903 — not listed in this catalogue
485608C · 29 callouts, 14 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
19 parts on this figure
Part number Description Fitment Price
44327R — Gasket, Pressure Port, NO.2
90430-16016 Gasket, Pressure Port, NO.2
2021-12 → 2024-11 ended
VJA310 ¥80
48934A — Plug, Height Control
48934-60040 Plug, Height Control
2021-12 → 2024-11 ended
VJA310 ¥530
48942E — Bolt, Union, NO.2
96341-41603 Bolt, Union, NO.2
2021-12 → 2024-11 ended
VJA310 ¥310
48945 — Bracket, Height Control Hose, RH
48945-60010 Bracket, Height Control Hose, RH
2021-12 → 2024-11 ended
VJA310 ¥350
48965 — Clamp, Height Control Tube
48965-60250 Clamp, Height Control Tube
2021-12 → 2024-11 ended
VJA310 ¥240
48965C — Clamp, Height Control Tube, NO.1
48965-60260 Clamp, Height Control Tube, NO.1
2021-12 → 2024-11 ended
VJA310 ¥200
48976 — Way, Height Control
48976-60060 Way, Height Control
2021-12 → 2024-11 ended
VJA310 ¥2,840
48981 — Tube, Height Control, NO.1
48981-60050 Tube, Height Control, NO.1
2021-12 → 2024-11 ended
VJA310 ¥4,410
48982 — Tube, Height Control, NO.2
48982-60100 Tube, Height Control, NO.2
2021-12 → 2024-11 ended
VJA310 ¥3,970
48983 — Tube, Height Control, NO.3
48983-60050 Tube, Height Control, NO.3
2021-12 → 2024-11 ended
VJA310 ¥3,970
48984 — Tube, Height Control, NO.4
48984-60050 Tube, Height Control, NO.4
2021-12 → 2024-11 ended
VJA310 ¥4,350
48986 — Tube, Height Control, NO.6
48986-60060 Tube, Height Control, NO.6
2021-12 → 2024-11 ended
VJA310 ¥6,100
48988 — Tube, Height Control, NO.8
48988-60010 Tube, Height Control, NO.8
2021-12 → 2024-11 ended
VJA310 ¥2,190
48989 — Tube, Height Control, NO.9
48989-60010 Tube, Height Control, NO.9
2021-12 → 2024-11 ended
VJA310 ¥630
48994A — Way, NO.1(FOR REAR HEIGHT CONTROL TUBE)
48976-60070 Way, NO.1(FOR REAR HEIGHT CONTROL TUBE)
2021-12 → 2024-10 ended
VJA310 ¥3,910
49161C — Hose, Suspension Control Pressure, NO.1
49161-60060 Hose, Suspension Control Pressure, NO.1
2021-12 → 2024-11 ended
VJA310 ¥16,200
49163B — Hose, Suspension Control Pressure, NO.3
49163-60050 Hose, Suspension Control Pressure, NO.3
2021-12 → 2024-11 ended
VJA310 ¥11,800
49165B — Tube Assy, Suspension Control Pressure, NO.5
49165-60010 Tube Assy, Suspension Control Pressure, NO.5
2021-12 → 2024-11 ended
VJA310 ¥6,400
49167C — Tube Assy, Suspension Control Pressure, NO.7
49167-60010 Tube Assy, Suspension Control Pressure, NO.7
2021-12 → 2024-11 ended
VJA310 ¥6,400
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
