Exploded illustration 514151C 51021B — CROSSMEMBER SUB-ASSY, FRAME AUXILIARY (1 parts) 51027B — BRACKET SUB-ASSY, REAR SHOCK ABSORBER MOUNT, RH (1 parts) 51028B — BRACKET SUB-ASSY, REAR SHOCK ABSORBER MOUNT, LH (1 parts) 5103C — PLATE SUB-ASSY, SIDE RAIL EXTENSION, RH (1 parts) 5103D — PLATE SUB-ASSY, SIDE RAIL EXTENSION, LH (1 parts) 51963A — HOOK, TRANSPORT, FRONT RH (2 parts) 51964A — HOOK, TRANSPORT, FRONT LH (2 parts) 51095C — HOOK SUB-ASSY, TRANSPORT, REAR (1 parts) 51100F — FRAME SUB-ASSY (2 parts) 51110 — EXTENSION ASSY, SIDE RAIL, RH (1 parts) 51120 — EXTENSION ASSY, SIDE RAIL, LH (1 parts) 51195 — PATCH, REAR FRAME RAIL, RH (1 parts) 51196 — PATCH, REAR FRAME RAIL, LH (1 parts) 51201A — CROSSMEMBER SUB-ASSY, FRAME, FRONT (1 parts) 51209C — CROSSMEMBER SUB-ASSY, FRAME, REAR (2 parts) 51308A — BRACKET SUB-ASSY, EXHAUST PIPE CLAMP (1 parts) 51391 — GUSSET, FRAME REAR CROSSMEMBER, RH (1 parts) 51392 — GUSSET, FRAME REAR CROSSMEMBER, LH (1 parts) 51701 — BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH (1 parts) 51702 — BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH (1 parts) 51703 — BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH (1 parts) 51704 — BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH (1 parts) 51704A — BRACKET SUB-ASSY, CAB REAR MOUNTING, LH (1 parts) 51705D — BRACKET SUB-ASSY, CAB REAR MOUNTING, RH (1 parts) 51707C — BRACKET SUB-ASSY, CAB MOUNTING, NO.4 RH (1 parts) 51708A — BRACKET SUB-ASSY, CAB MOUNTING, NO.4 LH (1 parts) 51943A — BRACKET, SPARE WHEEL CARRIER (1 parts) 51944A — not listed in this catalogue 51949B — CROSSMEMBER, SPARE WHEEL CARRIER (1 parts) 51961E — HOOK, FRONT (1 parts) 9011912470 — not listed in this catalogue 91672F1240 — not listed in this catalogue 91674F0820 — not listed in this catalogue 91674F0820 — not listed in this catalogue 91674F0820 — not listed in this catalogue 51202E — CROSSMEMBER SUB-ASSY, FRAME, NO.2 (1 parts) 51603A — BRACKET SUB-ASSY, FRONT BOUND STOPPER, RH (1 parts) 51604 — BRACKET SUB-ASSY, FRONT BOUND STOPPER, LH (1 parts) 91672F1240 — not listed in this catalogue 48806C — BRACE SUB-ASSY, FRONT STABILIZAR, CENTER (1 parts) 9011910A11 — not listed in this catalogue 9011910A30 — not listed in this catalogue 91674N1030 — not listed in this catalogue 9011910A30 — not listed in this catalogue 91674N1030 — not listed in this catalogue 91674N1025 — not listed in this catalogue

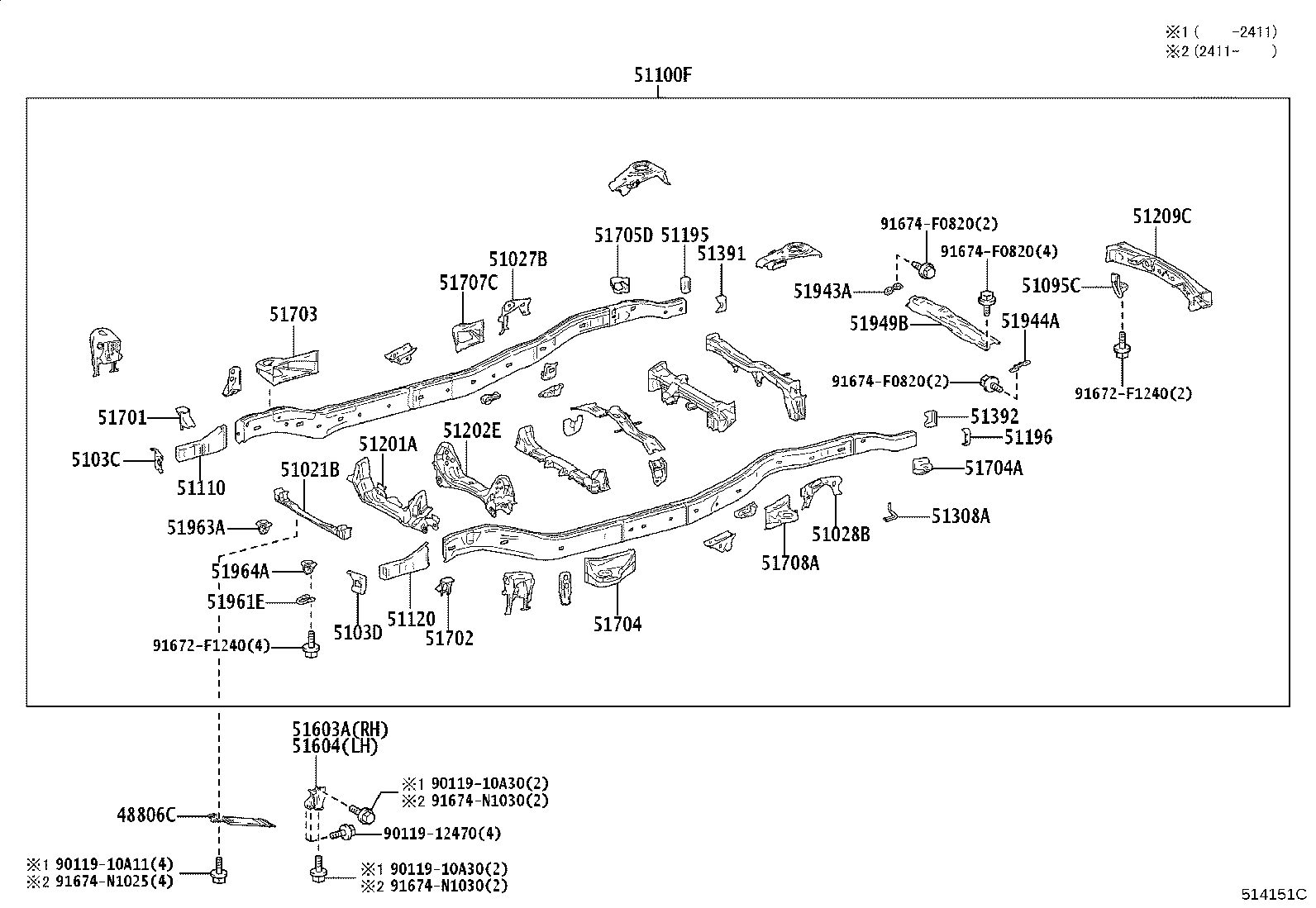

514151C · 33 callouts, 13 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
37 parts on this figure
Part number Description Fitment Price
48806C — Brace Sub-assy, Front Stabilizar, Center
48806-60020 Brace Sub-assy, Front Stabilizar, Center
2022-06 → 2024-11 ended
VJA310 ¥3,810
51021B — Crossmember Sub-assy, Frame Auxiliary
51021-60060 Crossmember Sub-assy, Frame Auxiliary
2021-12 → 2024-11 ended
VJA310 ¥6,600
51027B — Bracket Sub-assy, Rear Shock Absorber Mount, RH
51027-60040 Bracket Sub-assy, Rear Shock Absorber Mount, RH
2021-12 → 2024-11 ended
VJA310 ¥3,430
51028B — Bracket Sub-assy, Rear Shock Absorber Mount, LH
51028-60050 Bracket Sub-assy, Rear Shock Absorber Mount, LH
2021-12 → 2024-11 ended
VJA310 ¥3,430
5103C — Plate Sub-assy, Side Rail Extension, RH
5103C-60020 Plate Sub-assy, Side Rail Extension, RH
2021-12 → 2024-11 ended
VJA310 ¥1,720
5103D — Plate Sub-assy, Side Rail Extension, LH
5103D-60020 Plate Sub-assy, Side Rail Extension, LH
2021-12 → 2024-11 ended
VJA310 ¥1,730
51095C — Hook Sub-assy, Transport, Rear
51095-60040 Hook Sub-assy, Transport, Rear
2021-12 → 2024-11 ended
VJA310 ¥3,020
51100F — Frame Sub-assy
51001-6AQ40 Frame Sub-assy
2021-12 → 2024-11 ended
VJA310 ¥256,000
51001-6AQ50 note Frame Sub-assy
2021-12 → 2024-11 ended
VJA310 ¥282,000
51110 — Extension Assy, Side Rail, RH
51110-60100 Extension Assy, Side Rail, RH
2021-12 → 2024-11 ended
VJA310 ¥9,000
51120 — Extension Assy, Side Rail, LH
51120-60100 Extension Assy, Side Rail, LH
2021-12 → 2024-11 ended
VJA310 ¥9,000
51195 — Patch, Rear Frame Rail, RH
51191-60030 Patch, Rear Frame Rail, RH
2021-12 → 2024-11 ended
VJA310 ¥950
51196 — Patch, Rear Frame Rail, LH
51192-60020 Patch, Rear Frame Rail, LH
2021-12 → 2024-11 ended
VJA310 ¥950
51201A — Crossmember Sub-assy, Frame, Front
51201-60210 Crossmember Sub-assy, Frame, Front
2021-12 → 2024-11 ended
VJA310 ¥31,400
51202E — Crossmember Sub-assy, Frame, NO.2
51202-60330 Crossmember Sub-assy, Frame, NO.2
2021-12 → 2024-11 ended
VJA310 ¥27,400
51209C — Crossmember Sub-assy, Frame, Rear
51209-60260 Crossmember Sub-assy, Frame, Rear
2021-12 → 2024-05 ended
VJA310 ¥39,000
51290-60030 Crossmember Sub-assy, Frame, Rear
2024-05 → 2024-11 ended
VJA310 ¥35,400
51308A — Bracket Sub-assy, Exhaust Pipe Clamp
51308-6A010 Bracket Sub-assy, Exhaust Pipe Clamp
2021-12 → 2024-11 ended
VJA310 ¥1,000
51391 — Gusset, Frame Rear Crossmember, RH
51391-60060 Gusset, Frame Rear Crossmember, RH
2021-12 → 2024-11 ended
VJA310 ¥1,260
51392 — Gusset, Frame Rear Crossmember, LH
51391-60060 Gusset, Frame Rear Crossmember, LH
2021-12 → 2024-11 ended
VJA310 ¥1,260
51603A — Bracket Sub-assy, Front Bound Stopper, RH
51603-60050 Bracket Sub-assy, Front Bound Stopper, RH
2021-12 → 2024-11 ended
VJA310 ¥3,270
51604 — Bracket Sub-assy, Front Bound Stopper, LH
51604-60050 Bracket Sub-assy, Front Bound Stopper, LH
2021-12 → 2024-11 ended
VJA310 ¥3,270
51701 — Bracket Sub-assy, Cab Mounting, NO.1 RH
51701-60250 Bracket Sub-assy, Cab Mounting, NO.1 RH
2021-12 → 2024-11 ended
VJA310 ¥2,430
51702 — Bracket Sub-assy, Cab Mounting, NO.1 LH
51702-60160 Bracket Sub-assy, Cab Mounting, NO.1 LH
2021-12 → 2024-11 ended
VJA310 ¥2,420
51703 — Bracket Sub-assy, Cab Mounting, NO.2, RH
51703-60130 Bracket Sub-assy, Cab Mounting, NO.2, RH
2021-12 → 2024-11 ended
VJA310 ¥7,700
51704 — Bracket Sub-assy, Cab Mounting, NO.2 LH
51704-60120 Bracket Sub-assy, Cab Mounting, NO.2 LH
2021-12 → 2024-11 ended
VJA310 ¥7,700
51704A — Bracket Sub-assy, Cab Rear Mounting, LH
51706-60050 Bracket Sub-assy, Cab Rear Mounting, LH
2021-12 → 2024-11 ended
VJA310 ¥2,010
51705D — Bracket Sub-assy, Cab Rear Mounting, RH
51705-60180 Bracket Sub-assy, Cab Rear Mounting, RH
2021-12 → 2024-11 ended
VJA310 ¥2,010
51707C — Bracket Sub-assy, Cab Mounting, NO.4 RH
51707-60130 Bracket Sub-assy, Cab Mounting, NO.4 RH
2021-12 → 2024-11 ended
VJA310 ¥4,730
51708A — Bracket Sub-assy, Cab Mounting, NO.4 LH
51708-60110 Bracket Sub-assy, Cab Mounting, NO.4 LH
2021-12 → 2024-11 ended
VJA310 ¥4,730
51943A — Bracket, Spare Wheel Carrier
51941-60170 Bracket, Spare Wheel Carrier
2021-12 → 2024-11 ended
VJA310 ¥810
51949B — Crossmember, Spare Wheel Carrier
51949-60040 Crossmember, Spare Wheel Carrier
2021-12 → 2024-11 ended
VJA310 ¥8,400
51961E — Hook, Front
51961-60270 Hook, Front
2021-12 → 2024-11 ended
VJA310 ¥1,380
51963A — Hook, Transport, Front RH
51093-60020 Hook, Transport, Front RH
2021-12 → 2024-11 ended
VJA310 ¥1,030
51093-60030 note Hook, Transport, Front RH
2021-12 → 2024-11 ended
VJA310 ¥1,900
51964A — Hook, Transport, Front LH
51093-60020 Hook, Transport, Front LH
2021-12 → 2024-11 ended
VJA310 ¥1,030
51094-60020 note Hook, Transport, Front LH
2021-12 → 2024-11 ended
VJA310 ¥1,900
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
