Toyota Lexus LX600
2021-12 → present · chassis VJA310 · catalogue 792170 · Japan
Supported model
Data version 2022-01

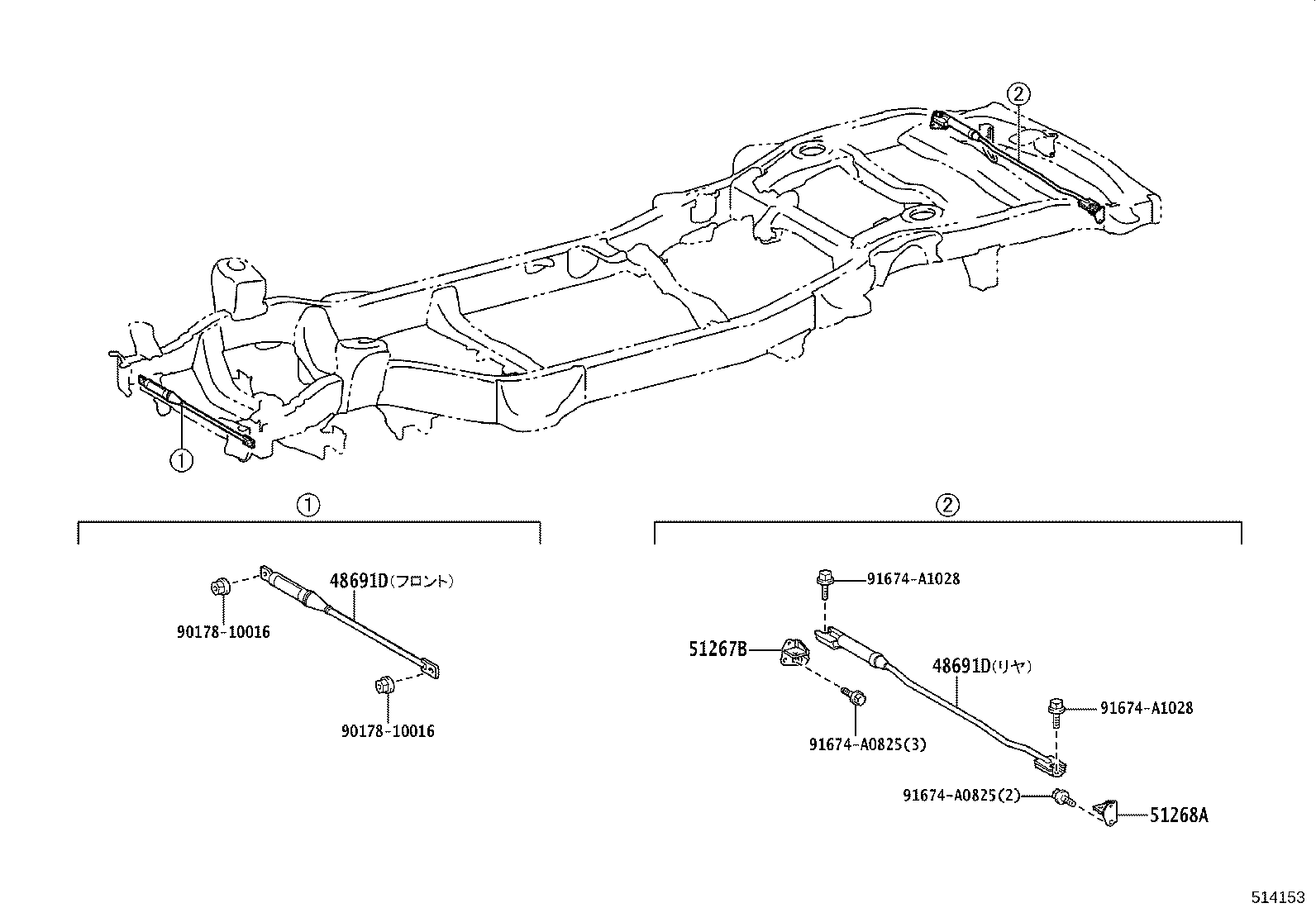

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 48691D — Damper, Suspension Tower | ||||
| 48691-60050 note |
Damper, Suspension Tower
2021-12 → 2024-11
ended
|
VJA310 | ¥28,900 | |
| 48691-60060 note |
Damper, Suspension Tower
2021-12 → 2024-11
ended
|
VJA310 | ¥28,900 | |
| 51267B — Bracket, Rear Suspension Member, Rear RH | ||||
| 51267-60040 note |
Bracket, Rear Suspension Member, Rear RH
2021-12 → 2024-11
ended
|
VJA310 | ¥1,260 | |
| 51268A — Bracket, Rear Suspension Member, Rear LH | ||||
| 51268-60040 note |
Bracket, Rear Suspension Member, Rear LH
2021-12 → 2024-11
ended
|
VJA310 | ¥1,010 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
