Toyota Lexus LX600

2021-12 → present · chassis VJA310 · catalogue 792170 · Japan

Supported model Data version 2022-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

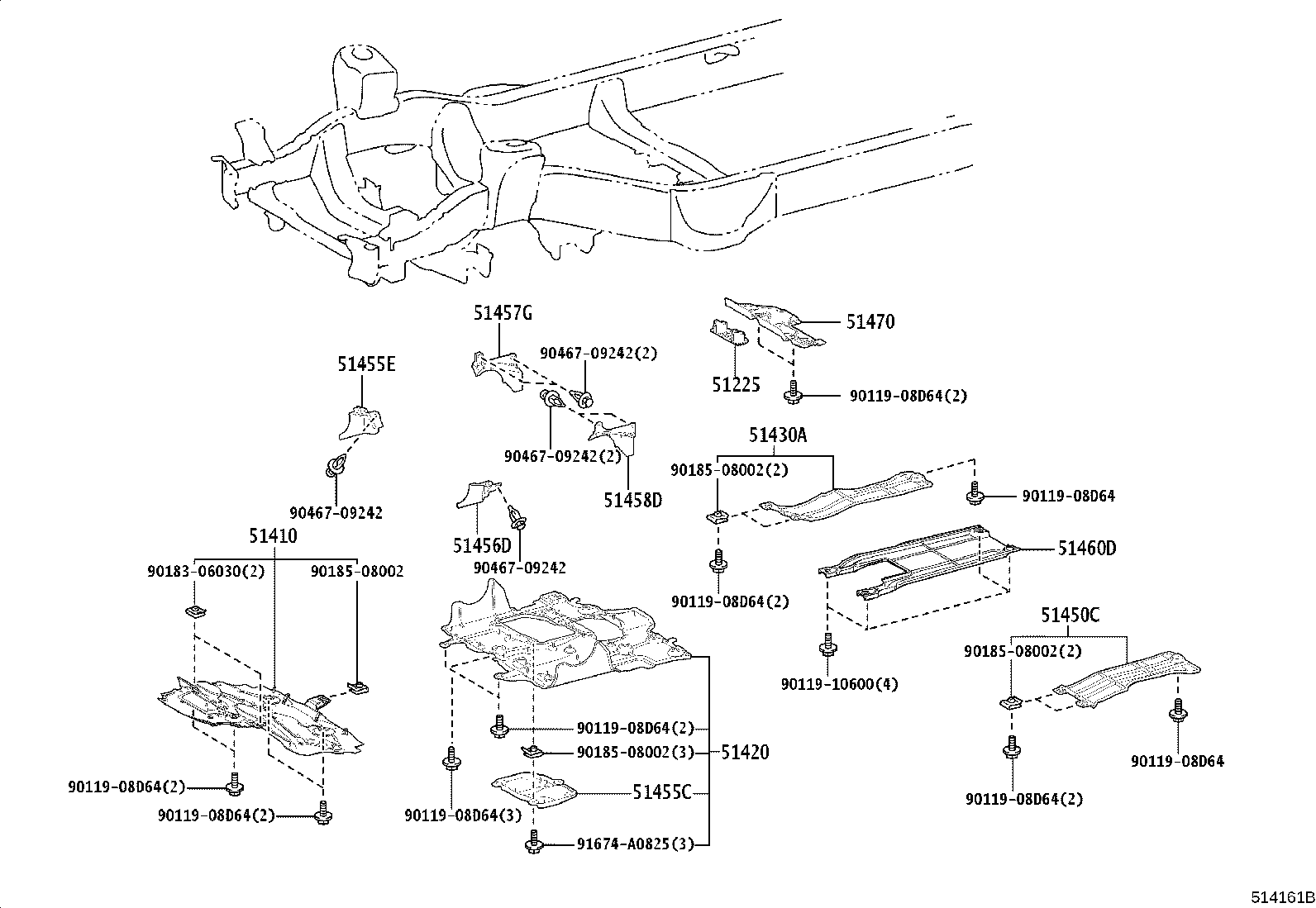

Exploded illustration 514161B 9018508002 — not listed in this catalogue 9018508002 — not listed in this catalogue 9011908D64 — not listed in this catalogue 9011910600 — not listed in this catalogue 9046709242 — not listed in this catalogue 9046709242 — not listed in this catalogue 9046709242 — not listed in this catalogue 9046709242 — not listed in this catalogue 9011908D64 — not listed in this catalogue 9011908D64 — not listed in this catalogue 9011908D64 — not listed in this catalogue 9011908D64 — not listed in this catalogue 51430A — COVER ASSY, FRAME UNDER, RH (1 parts) 51470 — COVER ASSY, TRANSMISSION UNDER (1 parts) 51225 — COVER, ENGINE MOUNTING HOLE, NO.3 (1 parts) 51458D — SEAL, FRAME UNDER, NO.2 LH (1 parts) 51456D — SEAL, FRAME UNDER, NO.1 LH (1 parts) 51457G — SEAL, FRAME UNDER, NO.2 RH (1 parts) 51455E — SEAL, FRAME UNDER, NO.1 RH (1 parts) 51450C — COVER ASSY, FRAME UNDER, LH (1 parts) 51460D — COVER ASSY, TRANSMISSION UNDER, FRONT (1 parts) 9018508002 — not listed in this catalogue 9011908D64 — not listed in this catalogue 91674A0825 — not listed in this catalogue 9011908D64 — not listed in this catalogue 51420 — COVER ASSY, ENGINE UNDER, NO.2 (1 parts) 51455C — SEAL, ENGINE UNDER COVER, NO.2 (1 parts) 9018306030 — not listed in this catalogue 9018508002 — not listed in this catalogue 9011908D64 — not listed in this catalogue 9011908D64 — not listed in this catalogue 51410 — COVER ASSY, ENGINE UNDER, NO.1 (1 parts)
514161B · 12 callouts, 20 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
12 parts on this figure
Part number Description Fitment Price
51225 — Cover, Engine Mounting Hole, NO.3
51225-60020 Cover, Engine Mounting Hole, NO.3
2021-12 → 2024-11 ended
VJA310 ¥1,350
51410 — Cover Assy, Engine Under, NO.1
51410-60170 Cover Assy, Engine Under, NO.1
2021-12 → 2024-11 ended
VJA310 ¥25,000
51420 — Cover Assy, Engine Under, NO.2
51420-60110 Cover Assy, Engine Under, NO.2
2021-12 → 2024-11 ended
VJA310 ¥24,600
51430A — Cover Assy, Frame Under, RH
51430-60010 Cover Assy, Frame Under, RH
2021-12 → 2024-11 ended
VJA310 ¥4,740
51450C — Cover Assy, Frame Under, LH
51450-60070 Cover Assy, Frame Under, LH
2021-12 → 2024-11 ended
VJA310 ¥5,300
51455C — Seal, Engine Under Cover, NO.2
51466-60030 Seal, Engine Under Cover, NO.2
2021-12 → 2024-11 ended
VJA310 ¥2,820
51455E — Seal, Frame Under, NO.1 RH
51455-60100 Seal, Frame Under, NO.1 RH
2021-12 → 2024-11 ended
VJA310 ¥850
51456D — Seal, Frame Under, NO.1 LH
51456-60110 Seal, Frame Under, NO.1 LH
2021-12 → 2024-11 ended
VJA310 ¥850
51457G — Seal, Frame Under, NO.2 RH
51457-60040 Seal, Frame Under, NO.2 RH
2021-12 → 2024-11 ended
VJA310 ¥880
51458D — Seal, Frame Under, NO.2 LH
51458-60040 Seal, Frame Under, NO.2 LH
2021-12 → 2024-11 ended
VJA310 ¥880
51460D — Cover Assy, Transmission Under, Front
51460-60020 Cover Assy, Transmission Under, Front
2021-12 → 2024-11 ended
VJA310 ¥10,200
51470 — Cover Assy, Transmission Under
51470-60020 Cover Assy, Transmission Under
2021-12 → 2024-11 ended
VJA310 ¥3,180
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
