Toyota Lexus LX600

2021-12 → present · chassis VJA310 · catalogue 792170 · Japan

Supported model Data version 2022-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

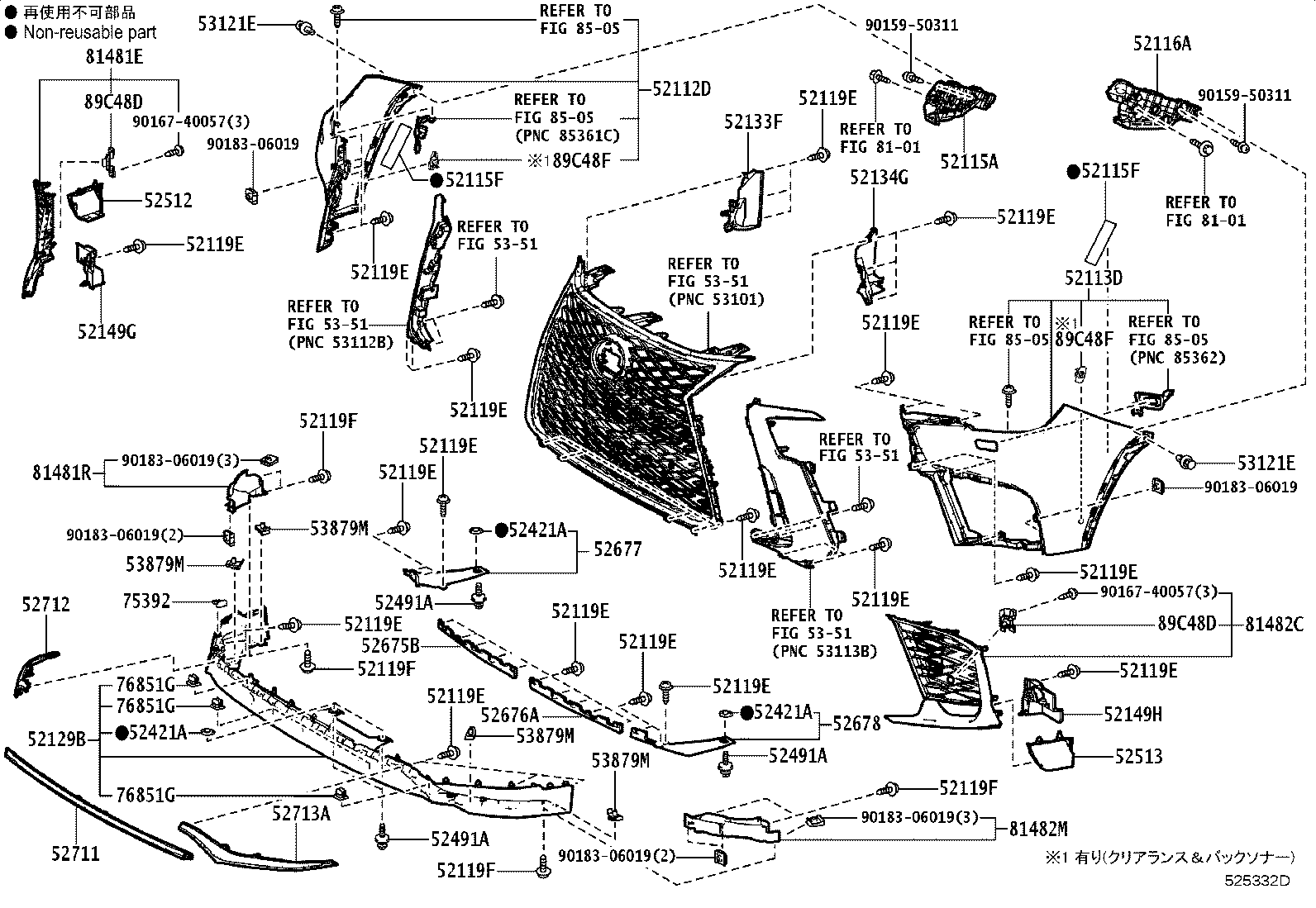

Exploded illustration 525332D 8101 — not listed in this catalogue 52115A — SUPPORT, FRONT BUMPER SIDE, RH (1 parts) 52116A — SUPPORT, FRONT BUMPER SIDE, LH (1 parts) 52115F — INSERT, FRONT BUMPER COVER (1 parts) 52115F — INSERT, FRONT BUMPER COVER (1 parts) 9016740057 — not listed in this catalogue 9018306019 — not listed in this catalogue 9018306019 — not listed in this catalogue 9015950311 — not listed in this catalogue 8101 — not listed in this catalogue 81481E — COVER, FOG LAMP, RH (2 parts) 53121E — CLIP(FOR FRONT BUMPER), NO.1 (1 parts) 52677 — SUPPORT, FRONT BUMPER SIDE, NO.2, RH (2 parts) 52712 — MOULDING, FRONT BUMPER SIDE, RH (1 parts) 52711 — MOULDING, FRONT BUMPER (1 parts) 52713A — MOULDING, FRONT BUMPER SIDE, LH (1 parts) 52678 — SUPPORT, FRONT BUMPER SIDE, NO.2, LH (2 parts) 52129B — COVER, FRONT BUMPER, LOWER (13 parts) 52675B — SUPPORT, FRONT BUMPER SIDE, NO.1 RH (2 parts) 53879M — RETAINER, FRONT FENDER LINER (1 parts) 53879M — RETAINER, FRONT FENDER LINER (1 parts) 53879M — RETAINER, FRONT FENDER LINER (1 parts) 53879M — RETAINER, FRONT FENDER LINER (1 parts) 52676A — SUPPORT, FRONT BUMPER SIDE, NO.1 LH (2 parts) 52119E — SCREW, NO.2 (2 parts) 52119E — SCREW, NO.2 (2 parts) 52119E — SCREW, NO.2 (2 parts) 52119E — SCREW, NO.2 (2 parts) 52119E — SCREW, NO.2 (2 parts) 52119E — SCREW, NO.2 (2 parts) 52119E — SCREW, NO.2 (2 parts) 52119E — SCREW, NO.2 (2 parts) 52119E — SCREW, NO.2 (2 parts) 52119E — SCREW, NO.2 (2 parts) 52119E — SCREW, NO.2 (2 parts) 52119E — SCREW, NO.2 (2 parts) 52512 — FILLER, FRONT BUMPER, RH (6 parts) 52513 — FILLER, FRONT BUMPER, LH (6 parts) 52149G — BRACKET, FRONT BUMPER, INNER RH (1 parts) 52149H — BRACKET, FRONT BUMPER, INNER LH (1 parts) 52119E — SCREW, NO.2 (2 parts) 52119F — SCREW, NO.3 (2 parts) 52119E — SCREW, NO.2 (2 parts) 52119F — SCREW, NO.3 (2 parts) 52119F — SCREW, NO.3 (2 parts) 52119F — SCREW, NO.3 (2 parts) 52119E — SCREW, NO.2 (2 parts) 52134G — BRACKET, FRONT BUMPER, LH (1 parts) 52133F — BRACKET, FRONT BUMPER, RH (1 parts) 52119E — SCREW, NO.2 (2 parts) 53121E — CLIP(FOR FRONT BUMPER), NO.1 (1 parts) 81482C — COVER, FOG LAMP, LH (2 parts) 89C48D — RETAINER, ULTRASONIC SENSOR, FRONT CORNER (4 parts) 52491A — BOLT, BUMPER PAD (1 parts) 52491A — BOLT, BUMPER PAD (1 parts) 52491A — BOLT, BUMPER PAD (1 parts) 52113D — EXTENSION, FRONT BUMPER, LH (7 parts) 8505 — not listed in this catalogue 8505 — not listed in this catalogue 9015950311 — not listed in this catalogue 9016740057 — not listed in this catalogue 9018306019 — not listed in this catalogue 81482M — BRACKET, FOG LAMP, LH (2 parts) 89C48D — RETAINER, ULTRASONIC SENSOR, FRONT CORNER (4 parts) 8505 — not listed in this catalogue 52112D — EXTENSION, FRONT BUMPER, RH (7 parts) 9018306019 — not listed in this catalogue 9018306019 — not listed in this catalogue 9018306019 — not listed in this catalogue 81481R — BRACKET, FOG LAMP, RH (2 parts) 75392 — RETAINER, OUTSIDE MOULDING (2 parts) 76851G — GROMMET, SCREW, NO.1 (1 parts) 52421A — PAD, FRONT BUMPER (1 parts) 76851G — GROMMET, SCREW, NO.1 (1 parts) 76851G — GROMMET, SCREW, NO.1 (1 parts) 52421A — PAD, FRONT BUMPER (1 parts) 52119E — SCREW, NO.2 (2 parts) 8505 — not listed in this catalogue 52421A — PAD, FRONT BUMPER (1 parts) 5351 — not listed in this catalogue 5351 — not listed in this catalogue 5351 — not listed in this catalogue 5351 — not listed in this catalogue 5351 — not listed in this catalogue 89C48F — not listed in this catalogue 89C48F — not listed in this catalogue
525332D · 63 callouts, 23 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
80 parts on this figure
Part number Description Fitment Price
52112D — Extension, Front Bumper, RH
52112-60910-A0 note Extension, Front Bumper, RH
2021-12 → 2024-11 ended
VJA310 ¥24,300
52112-60910-A1 note Extension, Front Bumper, RH
2021-12 → 2024-11 ended
VJA310 ¥24,300
52112-60910-B0 note Extension, Front Bumper, RH
2021-12 → 2024-11 ended
VJA310 ¥24,300
52112-60910-B1 note Extension, Front Bumper, RH
2021-12 → 2024-11 ended
VJA310 ¥24,300
52112-60910-C0 note Extension, Front Bumper, RH
2021-12 → 2024-11 ended
VJA310 ¥24,300
52112-60910-C1 note Extension, Front Bumper, RH
2021-12 → 2024-11 ended
VJA310 ¥26,800
52112-60910-G0 note Extension, Front Bumper, RH
2021-12 → 2024-11 ended
VJA310 ¥24,300
52113D — Extension, Front Bumper, LH
52113-60910-A0 note Extension, Front Bumper, LH
2021-12 → 2024-11 ended
VJA310 ¥24,500
52113-60910-A1 note Extension, Front Bumper, LH
2021-12 → 2024-11 ended
VJA310 ¥24,500
52113-60910-B0 note Extension, Front Bumper, LH
2021-12 → 2024-11 ended
VJA310 ¥24,500
52113-60910-B1 note Extension, Front Bumper, LH
2021-12 → 2024-11 ended
VJA310 ¥24,500
52113-60910-C0 note Extension, Front Bumper, LH
2021-12 → 2024-11 ended
VJA310 ¥27,000
52113-60910-C1 note Extension, Front Bumper, LH
2021-12 → 2024-11 ended
VJA310 ¥24,500
52113-60910-G0 note Extension, Front Bumper, LH
2021-12 → 2024-11 ended
VJA310 ¥24,500
52115A — Support, Front Bumper Side, RH
52115-60290 Support, Front Bumper Side, RH
2021-12 → 2024-11 ended
VJA310 ¥4,140
52115F — Insert, Front Bumper Cover
52465-11010 Insert, Front Bumper Cover
2021-12 → 2024-11 ended
VJA310 ¥460
52116A — Support, Front Bumper Side, LH
52116-60290 Support, Front Bumper Side, LH
2021-12 → 2024-11 ended
VJA310 ¥4,140
52119E — Screw, NO.2
90167-50063 Screw, NO.2
2021-12 → 2024-11 ended
VJA310 ¥60
90167-50063 note Screw, NO.2
2021-12 → 2024-11 ended
VJA310 ¥60
52119F — Screw, NO.3
90159-60477 Screw, NO.3
2021-12 → 2024-11 ended
VJA310 ¥70
90159-60477 note Screw, NO.3
2021-12 → 2024-11 ended
VJA310 ¥70
52129B — Cover, Front Bumper, Lower
52129-60100-A0 note Cover, Front Bumper, Lower
2021-12 → 2024-11 ended
VJA310 ¥44,400
52129-60100-A0 note Cover, Front Bumper, Lower
2021-12 → 2024-11 ended
VJA310 ¥44,400
52129-60100-B0 note Cover, Front Bumper, Lower
2021-12 → 2024-11 ended
VJA310 ¥44,400
52129-60100-B0 note Cover, Front Bumper, Lower
2021-12 → 2024-11 ended
VJA310 ¥44,400
52129-60100-B1 note Cover, Front Bumper, Lower
2021-12 → 2024-11 ended
VJA310 ¥44,400
52129-60100-B1 note Cover, Front Bumper, Lower
2021-12 → 2024-11 ended
VJA310 ¥44,400
52129-60100-C0 note Cover, Front Bumper, Lower
2021-12 → 2024-11 ended
VJA310 ¥44,400
52129-60100-C0 note Cover, Front Bumper, Lower
2021-12 → 2024-11 ended
VJA310 ¥44,400
52129-60100-C1 note Cover, Front Bumper, Lower
2021-12 → 2024-11 ended
VJA310 ¥44,400
52129-60100-C1 note Cover, Front Bumper, Lower
2021-12 → 2024-11 ended
VJA310 ¥44,400
52129-60100-G0 note Cover, Front Bumper, Lower
2021-12 → 2024-11 ended
VJA310 ¥44,400
52129-60100-G0 note Cover, Front Bumper, Lower
2021-12 → 2024-11 ended
VJA310 ¥44,400
52129-60160 note Cover, Front Bumper, Lower
2021-12 → 2024-11 ended
VJA310 ¥24,200
52133F — Bracket, Front Bumper, RH
52133-60220 Bracket, Front Bumper, RH
2021-12 → 2024-11 ended
VJA310 ¥2,120
52134G — Bracket, Front Bumper, LH
52134-60230 Bracket, Front Bumper, LH
2021-12 → 2024-11 ended
VJA310 ¥2,120
52149G — Bracket, Front Bumper, Inner RH
52149-60170 Bracket, Front Bumper, Inner RH
2021-12 → 2024-11 ended
VJA310 ¥1,280
52149H — Bracket, Front Bumper, Inner LH
52149-60180 Bracket, Front Bumper, Inner LH
2021-12 → 2024-11 ended
VJA310 ¥1,280
52421A — Pad, Front Bumper
52421-60191 Pad, Front Bumper
2021-12 → 2024-11 ended
VJA310 ¥260
52491A — Bolt, Bumper Pad
52491-60010 Bolt, Bumper Pad
2021-12 → 2024-11 ended
VJA310 ¥110
52512 — Filler, Front Bumper, RH
52512-60070-A0 note Filler, Front Bumper, RH
2021-12 → 2024-11 ended
VJA310 ¥1,670
52512-60070-B0 note Filler, Front Bumper, RH
2021-12 → 2024-11 ended
VJA310 ¥1,670
52512-60070-B1 note Filler, Front Bumper, RH
2021-12 → 2024-11 ended
VJA310 ¥1,670
52512-60070-C0 note Filler, Front Bumper, RH
2021-12 → 2024-11 ended
VJA310 ¥1,840
52512-60070-C1 note Filler, Front Bumper, RH
2021-12 → 2024-11 ended
VJA310 ¥1,670
52512-60070-G0 note Filler, Front Bumper, RH
2021-12 → 2024-11 ended
VJA310 ¥1,670
52513 — Filler, Front Bumper, LH
52513-60070-A0 note Filler, Front Bumper, LH
2021-12 → 2024-11 ended
VJA310 ¥1,670
52513-60070-B0 note Filler, Front Bumper, LH
2021-12 → 2024-11 ended
VJA310 ¥1,670
52513-60070-B1 note Filler, Front Bumper, LH
2021-12 → 2024-11 ended
VJA310 ¥1,670
52513-60070-C0 note Filler, Front Bumper, LH
2021-12 → 2024-11 ended
VJA310 ¥1,840
52513-60070-C1 note Filler, Front Bumper, LH
2021-12 → 2024-11 ended
VJA310 ¥1,670
52513-60070-G0 note Filler, Front Bumper, LH
2021-12 → 2024-11 ended
VJA310 ¥1,670
52675B — Support, Front Bumper Side, NO.1 RH
52675-60040 Support, Front Bumper Side, NO.1 RH
2021-12 → 2024-11 ended
VJA310 ¥2,110
52675-60050 note Support, Front Bumper Side, NO.1 RH
2021-12 → 2024-11 ended
VJA310 ¥1,090
52676A — Support, Front Bumper Side, NO.1 LH
52676-60030 Support, Front Bumper Side, NO.1 LH
2021-12 → 2024-11 ended
VJA310 ¥2,110
52676-60040 note Support, Front Bumper Side, NO.1 LH
2021-12 → 2024-11 ended
VJA310 ¥1,090
52677 — Support, Front Bumper Side, NO.2, RH
52677-60030 Support, Front Bumper Side, NO.2, RH
2021-12 → 2024-11 ended
VJA310 ¥1,090
52677-60040 note Support, Front Bumper Side, NO.2, RH
2021-12 → 2024-11 ended
VJA310 ¥1,820
52678 — Support, Front Bumper Side, NO.2, LH
52678-60020 Support, Front Bumper Side, NO.2, LH
2021-12 → 2024-11 ended
VJA310 ¥1,090
52678-60030 note Support, Front Bumper Side, NO.2, LH
2021-12 → 2024-11 ended
VJA310 ¥1,820
52711 — Moulding, Front Bumper
52711-60130 note Moulding, Front Bumper
2021-12 → 2024-11 ended
VJA310 ¥7,200
52712 — Moulding, Front Bumper Side, RH
52712-60100 note Moulding, Front Bumper Side, RH
2021-12 → 2024-11 ended
VJA310 ¥6,100
52713A — Moulding, Front Bumper Side, LH
52713-60100 note Moulding, Front Bumper Side, LH
2021-12 → 2024-11 ended
VJA310 ¥6,100
53121E — Clip(FOR FRONT BUMPER), NO.1
90467-07215 Clip(FOR FRONT BUMPER), NO.1
2021-12 → 2024-11 ended
VJA310 ¥80
53879M — Retainer, Front Fender Liner
90467-05138 Retainer, Front Fender Liner
2021-12 → 2024-11 ended
VJA310 ¥200
75392 — Retainer, Outside Moulding
75392-35220 Retainer, Outside Moulding
2021-12 → 2024-11 ended
VJA310 ¥130
75392-35220 note Retainer, Outside Moulding
2021-12 → 2024-11 ended
VJA310 ¥130
76851G — Grommet, Screw, NO.1
90189-06237 Grommet, Screw, NO.1
2021-12 → 2024-11 ended
VJA310 ¥100
81481E — Cover, Fog Lamp, RH
81481-60180 Cover, Fog Lamp, RH
2021-12 → 2024-11 ended
VJA310 ¥7,100
81481-60190 note Cover, Fog Lamp, RH
2021-12 → 2024-11 ended
VJA310 ¥7,100
81481R — Bracket, Fog Lamp, RH
81481-60210 Bracket, Fog Lamp, RH
2021-12 → 2024-11 ended
VJA310 ¥2,000
81481-60220 note Bracket, Fog Lamp, RH
2021-12 → 2024-11 ended
VJA310 ¥2,000
81482C — Cover, Fog Lamp, LH
81482-60180 Cover, Fog Lamp, LH
2021-12 → 2024-11 ended
VJA310 ¥7,100
81482-60190 note Cover, Fog Lamp, LH
2021-12 → 2024-11 ended
VJA310 ¥7,100
81482M — Bracket, Fog Lamp, LH
81482-60210 Bracket, Fog Lamp, LH
2021-12 → 2024-11 ended
VJA310 ¥2,000
81482-60220 note Bracket, Fog Lamp, LH
2021-12 → 2024-11 ended
VJA310 ¥2,000
89C48D — Retainer, Ultrasonic Sensor, Front Corner
89348-60300 note Retainer, Ultrasonic Sensor, Front Corner
2021-12 → 2024-11 ended
VJA310 ¥570
89348-60310 note Retainer, Ultrasonic Sensor, Front Corner
2021-12 → 2024-11 ended
VJA310 ¥570
89348-60360 note Retainer, Ultrasonic Sensor, Front Corner
2021-12 → 2024-11 ended
VJA310 —
89348-60370 note Retainer, Ultrasonic Sensor, Front Corner
2021-12 → 2024-11 ended
VJA310 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
