Toyota Lexus LX600

2021-12 → present · chassis VJA310 · catalogue 792170 · Japan

Supported model Data version 2022-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

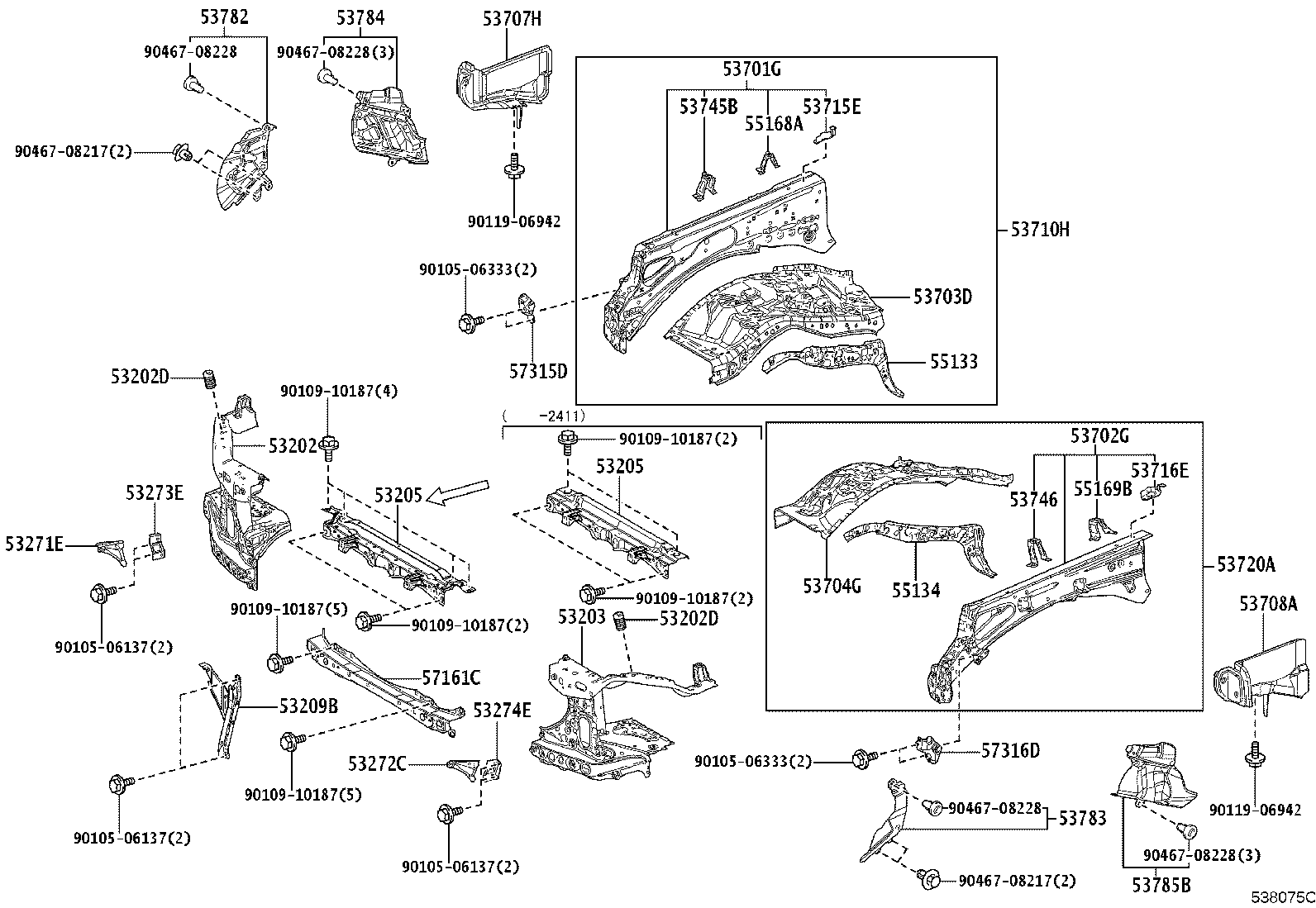

Exploded illustration 538075C 9010506137 — not listed in this catalogue 9010910187 — not listed in this catalogue 9010506333 — not listed in this catalogue 9046708228 — not listed in this catalogue 9011906942 — not listed in this catalogue 9046708228 — not listed in this catalogue 9010506137 — not listed in this catalogue 53271E — BRACKET, HEADLAMP MOUNTING, RH (1 parts) 53272C — BRACKET, HEADLAMP MOUNTING, LH (1 parts) 53209B — BRACE SUB-ASSY, HOOD LOCK SUPPORT (1 parts) 53273E — BRACKET, FRONT BUMPER ARM MOUNTING, RH (1 parts) 57161C — MEMBER, FRONT CROSS (2 parts) 53274E — BRACKET, FRONT BUMPER ARM MOUNTING, LH (1 parts) 9010506137 — not listed in this catalogue 53205 — SUPPORT SUB-ASSY, RADIATOR, UPPER (1 parts) 53703D — APRON SUB-ASSY, FRONT FENDER, NO.2 RH (1 parts) 55133 — PLATE, FRONT FENDER APRON SET, LOWER RH (1 parts) 53704G — APRON SUB-ASSY, FRONT FENDER, NO.2 LH (1 parts) 53702G — APRON SUB-ASSY, FRONT FENDER, LH (1 parts) 53708A — EXTENSION SUB-ASSY, FRONT FENDER APRON, FRONT LH (1 parts) 57315D — OUTRIGGER, NO.3 RH (1 parts) 53784 — PACKING, FRONT FENDER APRON TRIM, C (1 parts) 55134 — PLATE, FRONT FENDER APRON SET, LOWER LH (1 parts) 53720A — APRON ASSY, FRONT FENDER, LH (1 parts) 57316D — OUTRIGGER, NO.3 LH (1 parts) 53785B — PACKING, FRONT FENDER APRON TRIM, D (1 parts) 53715E — EXTENSION, FRONT FENDER APRON, REAR RH (1 parts) 53716E — EXTENSION, FRONT FENDER APRON, REAR LH (1 parts) 55168A — BRACKET, FRONT FENDER MOUNTING, RH (1 parts) 53745B — REINFORCEMENT, FRONT FENDER APRON, REAR RH (1 parts) 53746 — REINFORCEMENT, FRONT FENDER APRON, REAR LH (1 parts) 55169B — BRACKET, FRONT FENDER MOUNTING, LH (1 parts) 53701G — APRON SUB-ASSY, FRONT FENDER, RH (1 parts) 9010910187 — not listed in this catalogue 9010910187 — not listed in this catalogue 9010506333 — not listed in this catalogue 53710H — APRON ASSY, FRONT FENDER, RH (1 parts) 9011906942 — not listed in this catalogue 53707H — EXTENSION SUB-ASSY, FRONT FENDER APRON, FRONT RH (1 parts) 9046708228 — not listed in this catalogue 9046708217 — not listed in this catalogue 53782 — PACKING, FRONT FENDER APRON TRIM, A (1 parts) 53783 — PACKING, FRONT FENDER APRON TRIM, B (1 parts) 9046708217 — not listed in this catalogue 9046708228 — not listed in this catalogue 53203 — SUPPORT SUB-ASSY, RADIATOR, LH (1 parts) 53202D — CUSHION, RADIATOR SUPPORT (1 parts) 53202D — CUSHION, RADIATOR SUPPORT (1 parts) 53202 — SUPPORT SUB-ASSY, RADIATOR, RH (1 parts) 9010910187 — not listed in this catalogue 9010910187 — not listed in this catalogue 9010910187 — not listed in this catalogue 53205 — SUPPORT SUB-ASSY, RADIATOR, UPPER (1 parts)
538075C · 34 callouts, 19 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
33 parts on this figure
Part number Description Fitment Price
53202 — Support Sub-assy, Radiator, RH
53206-60040 Support Sub-assy, Radiator, RH
2021-12 → 2024-11 ended
VJA310 ¥13,700
53202D — Cushion, Radiator Support
90541-15034 Cushion, Radiator Support
2021-12 → 2024-11 ended
VJA310 ¥200
53203 — Support Sub-assy, Radiator, LH
53207-60210 Support Sub-assy, Radiator, LH
2021-12 → 2024-11 ended
VJA310 ¥13,700
53205 — Support Sub-assy, Radiator, Upper
53205-60100 Support Sub-assy, Radiator, Upper
2021-12 → 2024-11 ended
VJA310 ¥4,950
53209B — Brace Sub-assy, Hood Lock Support
53209-60220 Brace Sub-assy, Hood Lock Support
2021-12 → 2024-11 ended
VJA310 ¥3,110
53271E — Bracket, Headlamp Mounting, RH
53271-60110 Bracket, Headlamp Mounting, RH
2021-12 → 2024-11 ended
VJA310 ¥810
53272C — Bracket, Headlamp Mounting, LH
53272-60110 Bracket, Headlamp Mounting, LH
2021-12 → 2024-11 ended
VJA310 ¥810
53273E — Bracket, Front Bumper Arm Mounting, RH
53273-60100 Bracket, Front Bumper Arm Mounting, RH
2021-12 → 2024-11 ended
VJA310 ¥500
53274E — Bracket, Front Bumper Arm Mounting, LH
53274-60100 Bracket, Front Bumper Arm Mounting, LH
2021-12 → 2024-11 ended
VJA310 ¥500
53701G — Apron Sub-assy, Front Fender, RH
53710-60640 Apron Sub-assy, Front Fender, RH
2021-12 → 2024-11 ended
VJA310 ¥32,900
53702G — Apron Sub-assy, Front Fender, LH
53720-60410 Apron Sub-assy, Front Fender, LH
2021-12 → 2024-11 ended
VJA310 ¥32,900
53703D — Apron Sub-assy, Front Fender, NO.2 RH
53703-60100 Apron Sub-assy, Front Fender, NO.2 RH
2021-12 → 2024-11 ended
VJA310 ¥8,900
53704G — Apron Sub-assy, Front Fender, NO.2 LH
53704-60070 Apron Sub-assy, Front Fender, NO.2 LH
2021-12 → 2024-11 ended
VJA310 ¥8,900
53707H — Extension Sub-assy, Front Fender Apron, Front RH
53707-60080 Extension Sub-assy, Front Fender Apron, Front RH
2021-12 → 2024-11 ended
VJA310 ¥2,910
53708A — Extension Sub-assy, Front Fender Apron, Front LH
53708-60020 Extension Sub-assy, Front Fender Apron, Front LH
2021-12 → 2024-11 ended
VJA310 ¥2,910
53710H — Apron Assy, Front Fender, RH
53701-60G60 Apron Assy, Front Fender, RH
2021-12 → 2024-11 ended
VJA310 ¥48,300
53715E — Extension, Front Fender Apron, Rear RH
53715-60050 Extension, Front Fender Apron, Rear RH
2021-12 → 2024-11 ended
VJA310 ¥590
53716E — Extension, Front Fender Apron, Rear LH
53716-60050 Extension, Front Fender Apron, Rear LH
2021-12 → 2024-11 ended
VJA310 ¥590
53720A — Apron Assy, Front Fender, LH
53702-60C40 Apron Assy, Front Fender, LH
2021-12 → 2024-11 ended
VJA310 ¥48,300
53745B — Reinforcement, Front Fender Apron, Rear RH
53745-60130 Reinforcement, Front Fender Apron, Rear RH
2021-12 → 2024-11 ended
VJA310 ¥500
53746 — Reinforcement, Front Fender Apron, Rear LH
53746-60090 Reinforcement, Front Fender Apron, Rear LH
2021-12 → 2024-11 ended
VJA310 ¥500
53782 — Packing, Front Fender Apron Trim, A
53781-60050 Packing, Front Fender Apron Trim, A
2021-12 → 2024-11 ended
VJA310 ¥2,110
53783 — Packing, Front Fender Apron Trim, B
53782-60070 Packing, Front Fender Apron Trim, B
2021-12 → 2024-11 ended
VJA310 ¥1,580
53784 — Packing, Front Fender Apron Trim, C
53783-60120 Packing, Front Fender Apron Trim, C
2021-12 → 2024-11 ended
VJA310 ¥3,070
53785B — Packing, Front Fender Apron Trim, D
53784-60110 Packing, Front Fender Apron Trim, D
2021-12 → 2024-11 ended
VJA310 ¥3,100
55133 — Plate, Front Fender Apron Set, Lower RH
55133-60070 Plate, Front Fender Apron Set, Lower RH
2021-12 → 2024-11 ended
VJA310 ¥2,470
55134 — Plate, Front Fender Apron Set, Lower LH
55134-60060 Plate, Front Fender Apron Set, Lower LH
2021-12 → 2024-11 ended
VJA310 ¥2,470
55168A — Bracket, Front Fender Mounting, RH
55731-60110 Bracket, Front Fender Mounting, RH
2021-12 → 2024-11 ended
VJA310 ¥370
55169B — Bracket, Front Fender Mounting, LH
55732-60050 Bracket, Front Fender Mounting, LH
2021-12 → 2024-11 ended
VJA310 ¥370
57161C — Member, Front Cross
57162-60010 Member, Front Cross
2021-12 → 2023-11 ended
VJA310 ¥7,200
57162-60011 Member, Front Cross
2023-12 → 2024-11 ended
VJA310 ¥7,200
57315D — Outrigger, NO.3 RH
57315-60020 Outrigger, NO.3 RH
2021-12 → 2024-11 ended
VJA310 ¥700
57316D — Outrigger, NO.3 LH
57316-60020 Outrigger, NO.3 LH
2021-12 → 2024-11 ended
VJA310 ¥700
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
