Toyota Lexus LX600

2021-12 → present · chassis VJA310 · catalogue 792170 · Japan

Supported model Data version 2022-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

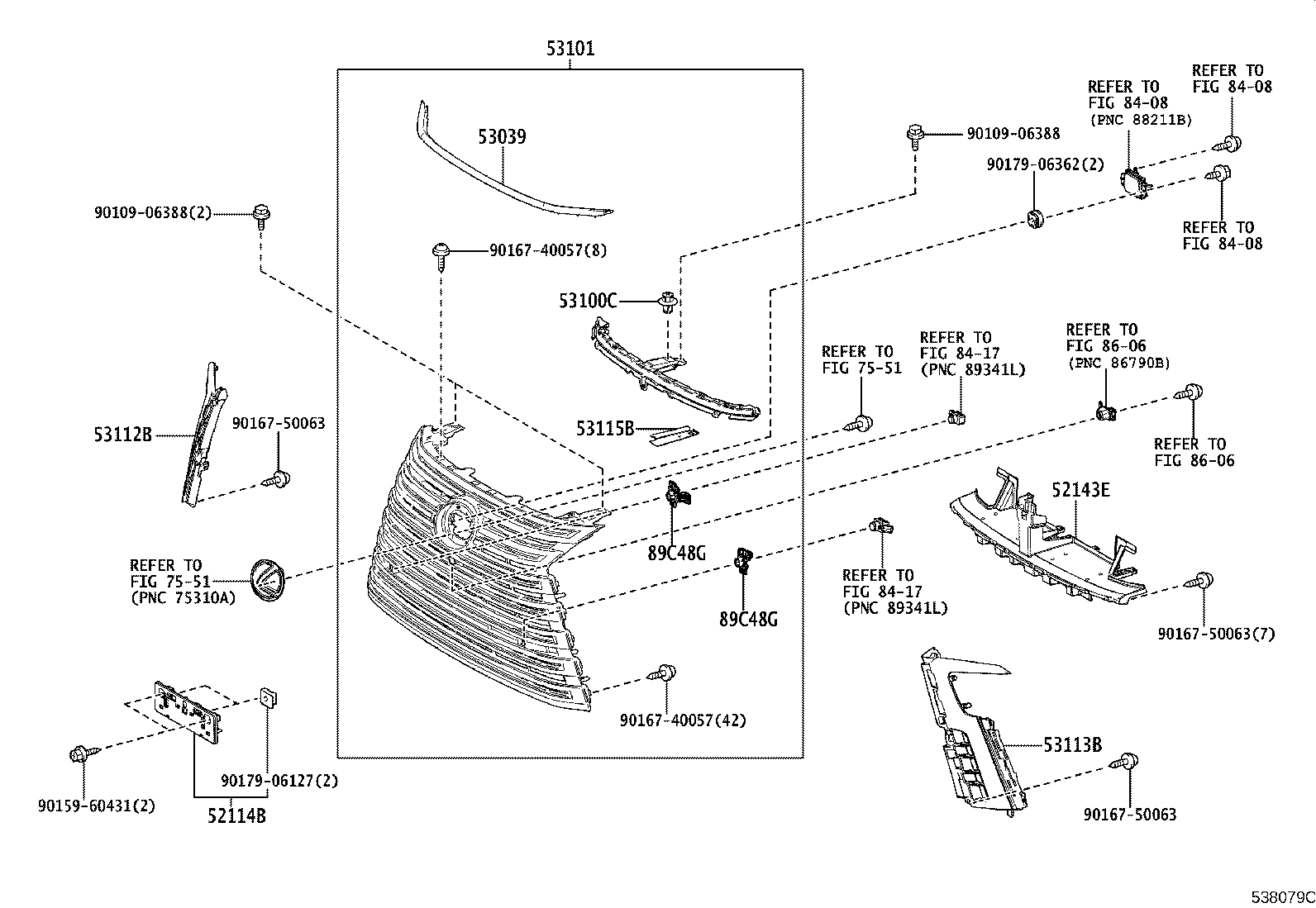

Exploded illustration 538079C 52143E — PLATE, FRONT ENERGY ABSORBER MOUNTING (2 parts) 53101 — GRILLE SUB-ASSY, RADIATOR (4 parts) 53039 — SEAL, RADIATOR, UPPER (1 parts) 89C48G — RETAINER, ULTRASONIC SENSOR, FRONT CENTER (4 parts) 53115B — BRACKET, RADIATOR GRILLE (1 parts) 52114B — BRACKET, FRONT BUMPER EXTENSION MOUNTING (2 parts) 53112B — GRILLE, RADIATOR SIDE, RH (2 parts) 53113B — GRILLE, RADIATOR SIDE, LH (2 parts) 89C48G — RETAINER, ULTRASONIC SENSOR, FRONT CENTER (4 parts) 9010906388 — not listed in this catalogue 9016740057 — not listed in this catalogue 8606 — not listed in this catalogue 9016750063 — not listed in this catalogue 7551 — not listed in this catalogue 9017906127 — not listed in this catalogue 9015960431 — not listed in this catalogue 9016750063 — not listed in this catalogue 53100C — CLIP, RADIATOR GRILLE (1 parts) 8417 — not listed in this catalogue 8417 — not listed in this catalogue 7551 — not listed in this catalogue 8408 — not listed in this catalogue 9017906362 — not listed in this catalogue 8408 — not listed in this catalogue 8408 — not listed in this catalogue 8606 — not listed in this catalogue 9016740057 — not listed in this catalogue 9010906388 — not listed in this catalogue 9016750063 — not listed in this catalogue
538079C · 10 callouts, 19 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
19 parts on this figure
Part number Description Fitment Price
52114B — Bracket, Front Bumper Extension Mounting
52114-60400 Bracket, Front Bumper Extension Mounting
2021-12 → 2024-11 ended
VJA310 ¥2,010
52114-60440 note Bracket, Front Bumper Extension Mounting
2021-12 → 2024-11 ended
VJA310 ¥2,360
52143E — Plate, Front Energy Absorber Mounting
52143-60110 Plate, Front Energy Absorber Mounting
2021-12 → 2024-11 ended
VJA310 ¥9,100
52143-60140 note Plate, Front Energy Absorber Mounting
2021-12 → 2024-11 ended
VJA310 ¥8,900
53039 — Seal, Radiator, Upper
53039-60070 Seal, Radiator, Upper
2021-12 → 2024-11 ended
VJA310 ¥1,020
53100C — Clip, Radiator Grille
90467-05063-C0 note Clip, Radiator Grille
2021-12 → 2024-11 ended
VJA310 ¥90
53101 — Grille Sub-assy, Radiator
53101-60L00 note Grille Sub-assy, Radiator
2021-12 → 2024-11 ended
VJA310 ¥102,000
53101-60L30 note Grille Sub-assy, Radiator
2021-12 → 2023-12 ended
VJA310 ¥76,500
53101-60L31 note Grille Sub-assy, Radiator
2024-01 → 2024-11 ended
VJA310 ¥69,500
53101-60M60 note Grille Sub-assy, Radiator
2021-12 → 2024-11 ended
VJA310 ¥102,000
53112B — Grille, Radiator Side, RH
53112-60480 note Grille, Radiator Side, RH
2021-12 → 2024-11 ended
VJA310 ¥7,700
53112-60490 note Grille, Radiator Side, RH
2021-12 → 2024-11 ended
VJA310 ¥9,800
53113B — Grille, Radiator Side, LH
53113-60240 note Grille, Radiator Side, LH
2021-12 → 2024-11 ended
VJA310 ¥7,600
53113-60250 note Grille, Radiator Side, LH
2021-12 → 2024-11 ended
VJA310 ¥9,800
53115B — Bracket, Radiator Grille
53115-60080 Bracket, Radiator Grille
2021-12 → 2024-11 ended
VJA310 ¥820
89C48G — Retainer, Ultrasonic Sensor, Front Center
89348-60280 note Retainer, Ultrasonic Sensor, Front Center
2021-12 → 2024-11 ended
VJA310 ¥520
89348-60290 note Retainer, Ultrasonic Sensor, Front Center
2021-12 → 2024-11 ended
VJA310 ¥520
89348-60340 note Retainer, Ultrasonic Sensor, Front Center
2021-12 → 2024-11 ended
VJA310 ¥470
89348-60350 note Retainer, Ultrasonic Sensor, Front Center
2021-12 → 2024-11 ended
VJA310 ¥470
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
