Toyota Lexus LX600
2021-12 → present · chassis VJA310 · catalogue 792170 · Japan
Supported model
Data version 2022-01

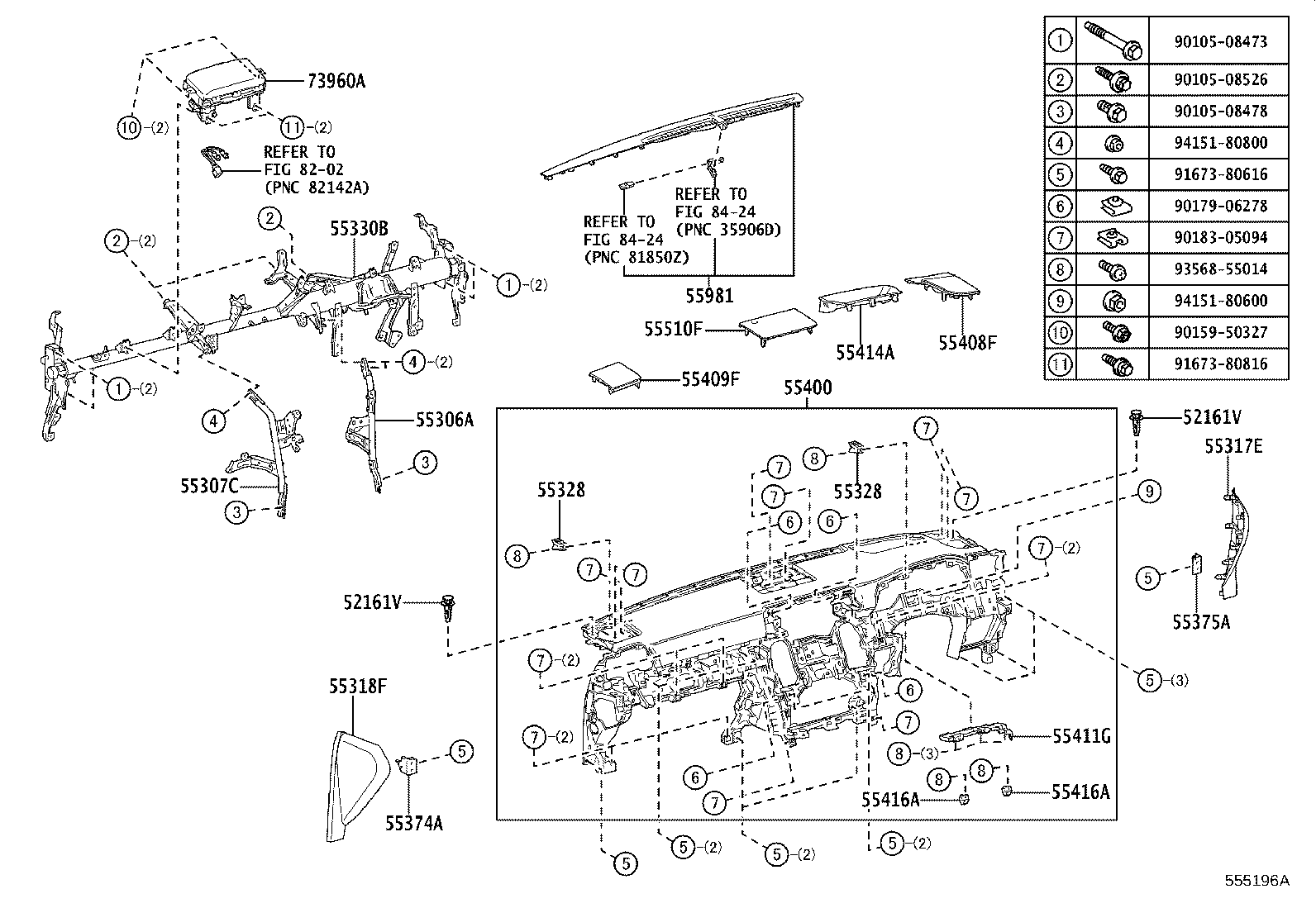

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 52161V — Piece, Instrument Panel | ||||
| 52161-16010 |
Piece, Instrument Panel
2021-12 → 2024-11
ended
|
VJA310 | ¥120 | |
| 55306A — Brace Sub-assy, Instrument Panel, NO.1 | ||||
| 55306-60240 |
Brace Sub-assy, Instrument Panel, NO.1
2021-12 → 2024-11
ended
|
VJA310 | ¥2,450 | |
| 55307C — Brace Sub-assy, Instrument Panel, NO.2 | ||||
| 55307-60180 |
Brace Sub-assy, Instrument Panel, NO.2
2021-12 → 2024-11
ended
|
VJA310 | ¥2,520 | |
| 55317E — Panel, Instrument Side, NO.1 | ||||
| 55317-60120-C1 note |
Panel, Instrument Side, NO.1
2021-12 → 2024-11
ended
|
VJA310 | ¥2,920 | |
| 55318F — Panel, Instrument Side, NO.2 | ||||
| 55318-60210-C1 note |
Panel, Instrument Side, NO.2
2021-12 → 2024-11
ended
|
VJA310 | ¥2,920 | |
| 55328 — Pin, Instrument Panel, NO.1 | ||||
| 55328-28130 |
Pin, Instrument Panel, NO.1
2021-12 → 2024-11
ended
|
VJA310 | ¥350 | |
| 55330B — Reinforcement Assy, Instrument Panel | ||||
| 55330-60590 |
Reinforcement Assy, Instrument Panel
2021-12 → 2024-11
ended
|
VJA310 | ¥18,700 | |
| 55374A — Bracket, Instrument Panel Lower Mounting, RH | ||||
| 55375-60130 |
Bracket, Instrument Panel Lower Mounting, RH
2021-12 → 2024-11
ended
|
VJA310 | ¥410 | |
| 55375A — Bracket, Instrument Panel Lower Mounting, LH | ||||
| 55374-60150 |
Bracket, Instrument Panel Lower Mounting, LH
2021-12 → 2024-11
ended
|
VJA310 | ¥410 | |
| 55400 — Pad Assy, Instrument Panel Safety | ||||
| 55400-60150-C1 note |
Pad Assy, Instrument Panel Safety
2021-12 → 2023-12
ended
|
VJA310 | ¥53,700 | |
| 55400-60151-C1 note |
Pad Assy, Instrument Panel Safety
2024-01 → 2024-11
ended
|
VJA310 | ¥48,700 | |
| 55408F — Panel Sub-assy, Instrument Panel Speaker, NO.1 | ||||
| 55408-60340-C0 note |
Panel Sub-assy, Instrument Panel Speaker, NO.1
2021-12 → 2024-11
ended
|
VJA310 | ¥4,060 | |
| 55409F — Panel Sub-assy, Instrument Panel Speaker, NO.2 | ||||
| 55409-60210-C0 note |
Panel Sub-assy, Instrument Panel Speaker, NO.2
2021-12 → 2024-11
ended
|
VJA310 | ¥3,250 | |
| 55411G — Panel, Instrument Cluster Finish, NO.1 | ||||
| 55411-60500 |
Panel, Instrument Cluster Finish, NO.1
2021-12 → 2024-11
ended
|
VJA310 | ¥1,460 | |
| 55414A — Panel, Instrument Cluster Finish, End | ||||
| 55414-60250-C0 note |
Panel, Instrument Cluster Finish, End
2021-12 → 2024-11
ended
|
VJA310 | ¥2,170 | |
| 55416A — Retainer, Meter Hood, NO.1 | ||||
| 55416-60140 |
Retainer, Meter Hood, NO.1
2021-12 → 2024-11
ended
|
VJA310 | ¥180 | |
| 55510F — Cover Assy, Speaker Opening, NO.1 | ||||
| 55510-60190-C0 note |
Cover Assy, Speaker Opening, NO.1
2021-12 → 2024-11
ended
|
VJA310 | ¥2,710 | |
| 55981 — Garnish, Defroster Nozzle, NO.1 | ||||
| 55981-60120-C1 note |
Garnish, Defroster Nozzle, NO.1
2021-12 → 2024-11
ended
|
VJA310 | ¥4,260 | |
| 73960A — Airbag Assy, Instrument Panel Passenger W/O Door | ||||
| 73960-60420 |
Airbag Assy, Instrument Panel Passenger W/O Door
2021-12 → 2024-11
ended
|
VJA310 | ¥75,600 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
