Toyota Lexus LX600
2021-12 → present · chassis VJA310 · catalogue 792170 · Japan
Supported model
Data version 2022-01

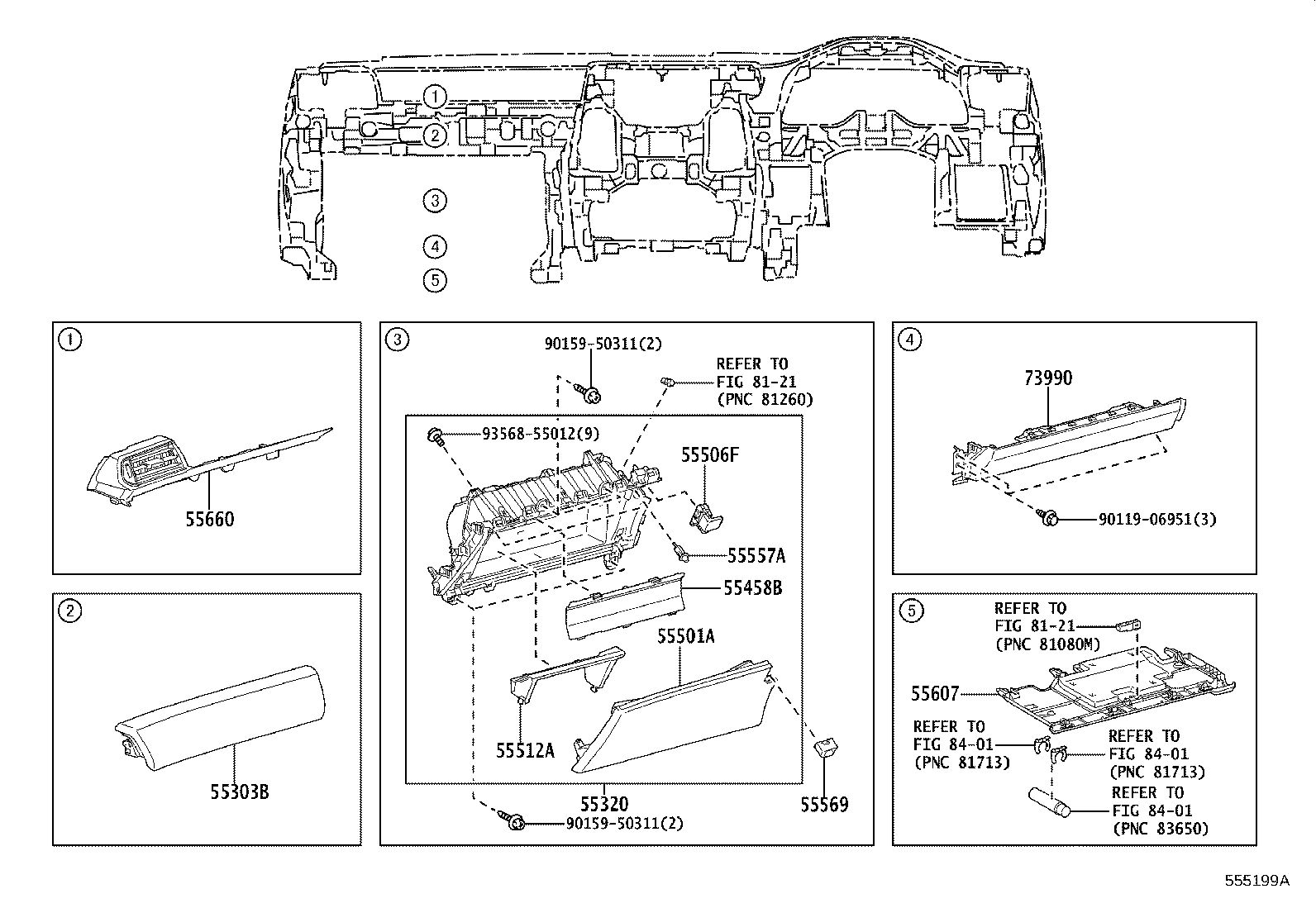

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55303B — Panel Sub-assy, Instrument, Lower | ||||
| 55303-60110-C2 note |
Panel Sub-assy, Instrument, Lower
2021-12 → 2024-11
ended
|
VJA310 | ¥11,800 | |
| 55303-60110-E2 note |
Panel Sub-assy, Instrument, Lower
2021-12 → 2024-11
ended
|
VJA310 | ¥11,800 | |
| 55303-60110-E3 note |
Panel Sub-assy, Instrument, Lower
2021-12 → 2024-11
ended
|
VJA310 | ¥11,800 | |
| 55303-60110-E4 note |
Panel Sub-assy, Instrument, Lower
2021-12 → 2024-11
ended
|
VJA310 | ¥11,800 | |
| 55320 — Panel Assy, Instrument, Lower NO.2 | ||||
| 55320-60160-C2 note |
Panel Assy, Instrument, Lower NO.2
2021-12 → 2024-11
ended
|
VJA310 | ¥35,000 | |
| 55320-60160-E5 note |
Panel Assy, Instrument, Lower NO.2
2021-12 → 2024-11
ended
|
VJA310 | ¥35,000 | |
| 55320-60160-E6 note |
Panel Assy, Instrument, Lower NO.2
2021-12 → 2024-11
ended
|
VJA310 | ¥35,000 | |
| 55320-60160-E7 note |
Panel Assy, Instrument, Lower NO.2
2021-12 → 2024-11
ended
|
VJA310 | ¥35,000 | |
| 55458B — Cover, Instrument, Lwr | ||||
| 55459-60250 |
Cover, Instrument, Lwr
2021-12 → 2024-11
ended
|
VJA310 | ¥1,960 | |
| 55501A — Door Sub-assy, Glove Compartment | ||||
| 55501-60320-C2 note |
Door Sub-assy, Glove Compartment
2021-12 → 2024-11
ended
|
VJA310 | ¥20,500 | |
| 55501-60320-E5 note |
Door Sub-assy, Glove Compartment
2021-12 → 2024-11
ended
|
VJA310 | ¥20,500 | |
| 55501-60320-E6 note |
Door Sub-assy, Glove Compartment
2021-12 → 2024-11
ended
|
VJA310 | ¥20,500 | |
| 55501-60320-E7 note |
Door Sub-assy, Glove Compartment
2021-12 → 2024-11
ended
|
VJA310 | ¥20,500 | |
| 55506F — Lock Sub-assy, Glove Compartment Door | ||||
| 55506-60080-C0 note |
Lock Sub-assy, Glove Compartment Door
2021-12 → 2024-11
ended
|
VJA310 | ¥930 | |
| 55506-60080-E0 note |
Lock Sub-assy, Glove Compartment Door
2021-12 → 2024-11
ended
|
VJA310 | ¥930 | |
| 55506-60080-E1 note |
Lock Sub-assy, Glove Compartment Door
2021-12 → 2024-11
ended
|
VJA310 | ¥930 | |
| 55506-60080-E2 note |
Lock Sub-assy, Glove Compartment Door
2021-12 → 2024-11
ended
|
VJA310 | ¥930 | |
| 55512A — Plate, Glove Compartment | ||||
| 55512-60090 |
Plate, Glove Compartment
2021-12 → 2024-11
ended
|
VJA310 | ¥2,550 | |
| 55557A — Cushion, Glove Compartment Door Check | ||||
| 55557-10040 |
Cushion, Glove Compartment Door Check
2021-12 → 2024-11
ended
|
VJA310 | ¥80 | |
| 55569 — Cover, Glove Compartment Door Lock | ||||
| 55569-60060-C0 note |
Cover, Glove Compartment Door Lock
2021-12 → 2024-11
ended
|
VJA310 | ¥670 | |
| 55569-60060-E0 note |
Cover, Glove Compartment Door Lock
2021-12 → 2024-11
ended
|
VJA310 | ¥670 | |
| 55569-60060-E1 note |
Cover, Glove Compartment Door Lock
2021-12 → 2024-11
ended
|
VJA310 | ¥670 | |
| 55569-60060-E2 note |
Cover, Glove Compartment Door Lock
2021-12 → 2024-11
ended
|
VJA310 | ¥670 | |
| 55607 — Cover Sub-assy, Instrument Panel Under, NO.2 | ||||
| 55607-60190 |
Cover Sub-assy, Instrument Panel Under, NO.2
2021-12 → 2024-11
ended
|
VJA310 | ¥3,150 | |
| 55660 — Register Assy, Instrument Panel, NO.2 | ||||
| 55660-60580-C1 note |
Register Assy, Instrument Panel, NO.2
2021-12 → 2024-11
ended
|
VJA310 | ¥19,200 | |
| 73990 — Airbag Assy, Instrument Panel, Lower NO.2 | ||||
| 73990-60070-C0 note |
Airbag Assy, Instrument Panel, Lower NO.2
2021-12 → 2024-11
ended
|
VJA310 | ¥23,600 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
