Toyota Lexus LX600
2021-12 → present · chassis VJA310 · catalogue 792170 · Japan
Supported model
Data version 2022-01

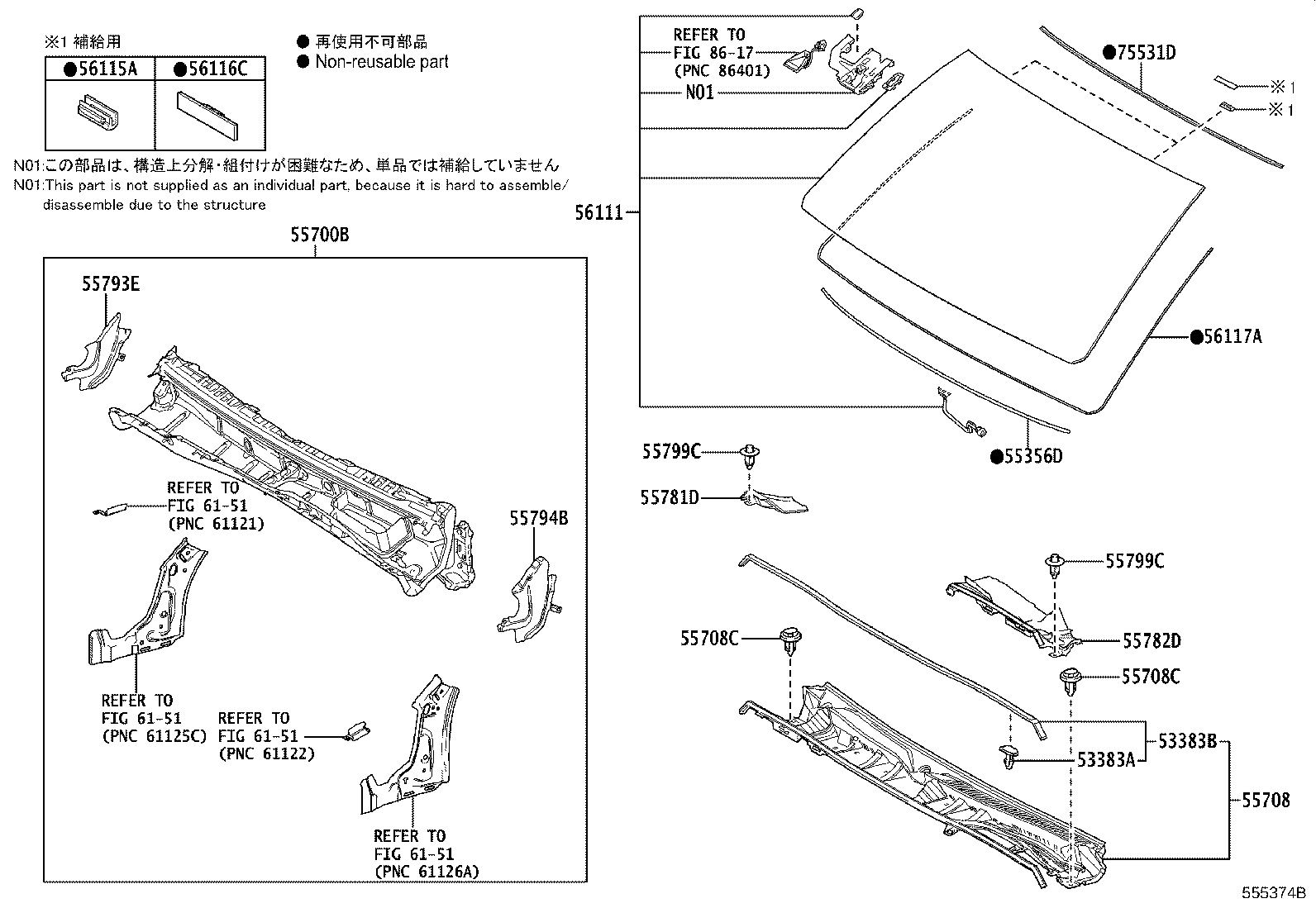

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 53383A — Clip(FOR HOOD TO COWL TOP SEAL) | ||||
| 67867-48030 |
Clip(FOR HOOD TO COWL TOP SEAL)
2021-12 → 2024-11
ended
|
VJA310 | ¥100 | |
| 53383B — Seal, Hood TO Cowl Top | ||||
| 53383-60130 |
Seal, Hood TO Cowl Top
2021-12 → 2024-11
ended
|
VJA310 | ¥1,750 | |
| 55356D — Cushion, Instrument Panel, NO.2 | ||||
| 55355-60240 |
Cushion, Instrument Panel, NO.2
2021-12 → 2024-11
ended
|
VJA310 | ¥340 | |
| 55700B — Cowl Assy | ||||
| 55700-60F90 |
Cowl Assy
2021-12 → 2023-02
ended
|
VJA310 | ¥29,900 | |
| 55700-60F91 |
Cowl Assy
2023-03 → 2024-11
ended
|
VJA310 | ¥27,200 | |
| 55708 — Louver Sub-assy, Cowl Top Ventilator | ||||
| 55708-60370 |
Louver Sub-assy, Cowl Top Ventilator
2021-12 → 2022-12
ended
|
VJA310 | ¥14,800 | |
| 55708-60430 |
Louver Sub-assy, Cowl Top Ventilator
2024-01 → 2024-11
ended
|
VJA310 | ¥13,400 | |
| 55708-60440 |
Louver Sub-assy, Cowl Top Ventilator
2023-01 → 2024-01
ended
|
VJA310 | ¥14,800 | |
| 55708C — Clip, Cowl Top Ventilator Louver | ||||
| 90467-09242 |
Clip, Cowl Top Ventilator Louver
2021-12 → 2024-11
ended
|
VJA310 | ¥120 | |
| 55781D — Louver, Cowl Top Ventilator, RH | ||||
| 55784-60141 |
Louver, Cowl Top Ventilator, RH
2021-12 → 2024-11
ended
|
VJA310 | ¥1,440 | |
| 55782D — Louver, Cowl Top Ventilator, LH | ||||
| 55783-60071 |
Louver, Cowl Top Ventilator, LH
2021-12 → 2024-11
ended
|
VJA310 | ¥2,910 | |
| 55793E — Cover, Cowl Reinforcement, Upper NO.2 RH | ||||
| 55793-60040 |
Cover, Cowl Reinforcement, Upper NO.2 RH
2021-12 → 2024-11
ended
|
VJA310 | ¥1,320 | |
| 55794B — Cover, Cowl Reinforcement, Upper NO.2 LH | ||||
| 55794-60040 |
Cover, Cowl Reinforcement, Upper NO.2 LH
2021-12 → 2024-11
ended
|
VJA310 | ¥1,320 | |
| 55799C — Clip, Cowl Top Ventilator Louver | ||||
| 90467-07217 |
Clip, Cowl Top Ventilator Louver
2021-12 → 2024-11
ended
|
VJA310 | ¥80 | |
| 56111 — Glass, Windshield | ||||
| 56101-6B918 |
Glass, Windshield
2021-12 → 2024-11
ended
|
VJA310 | — | |
| 56115A — Stopper, Windshield Glass, NO.1 | ||||
| 56115-60040 |
Stopper, Windshield Glass, NO.1
2021-12 → 2024-11
ended
|
VJA310 | ¥130 | |
| 56116C — Stopper, Windshield Glass, NO.2 | ||||
| 56116-22050 |
Stopper, Windshield Glass, NO.2
2021-12 → 2024-11
ended
|
VJA310 | ¥120 | |
| 56117A — Dam, Window Glass Adhesive | ||||
| 56117-64010 note |
Dam, Window Glass Adhesive
2021-12 → 2024-11
ended
|
VJA310 | ¥1,480 | |
| 75531D — Moulding, Windshield, Outside Upper | ||||
| 75531-60090 |
Moulding, Windshield, Outside Upper
2021-12 → 2024-11
ended
|
VJA310 | ¥1,000 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
