Toyota Lexus LX600

2021-12 → present · chassis VJA310 · catalogue 792170 · Japan

Supported model Data version 2022-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

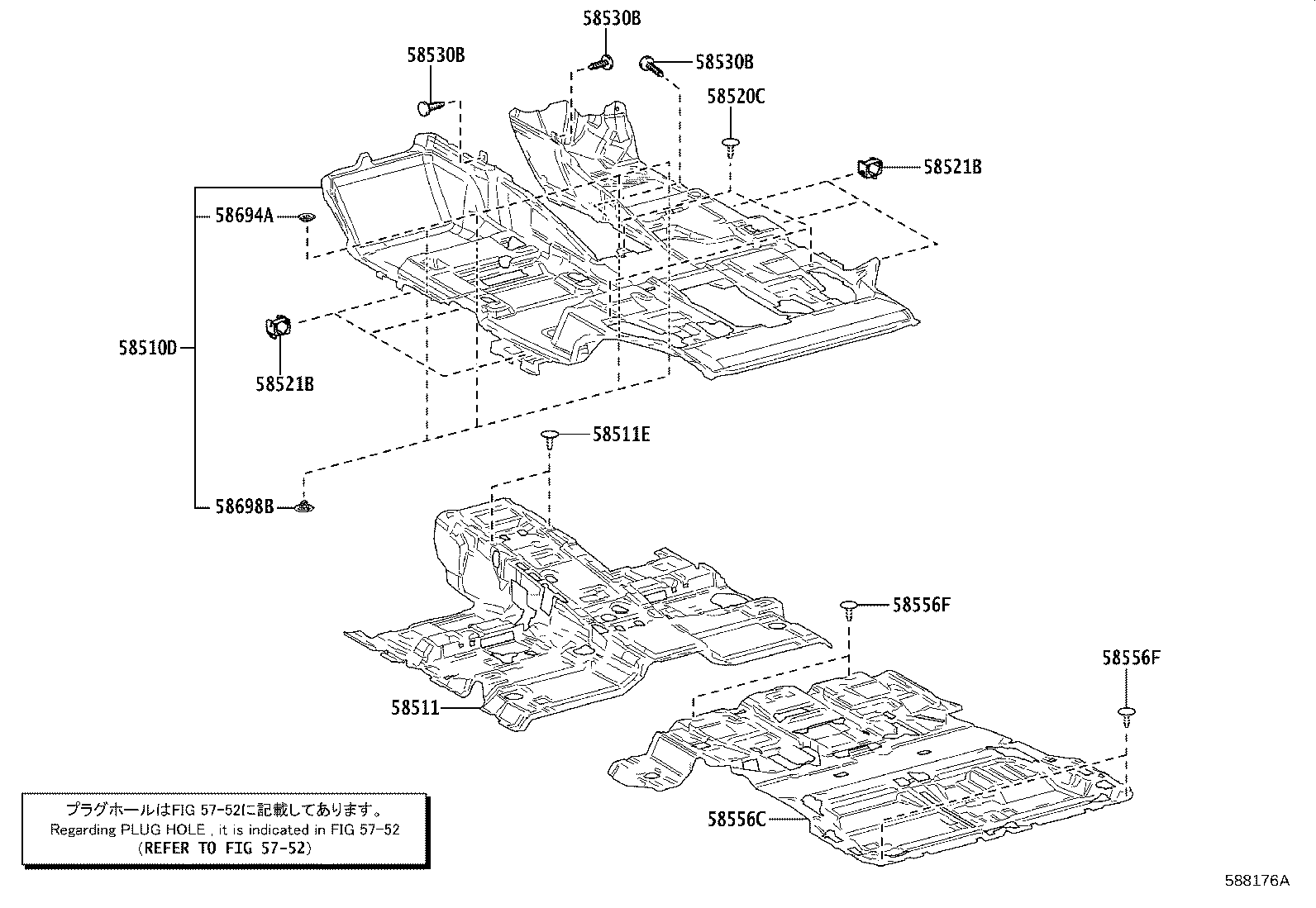

Exploded illustration 588176A 58530B — CLIP(FOR FRONT FLOOR CARPET) (4 parts) 58521B — HOOK, FLOOR CARPET (1 parts) 58521B — HOOK, FLOOR CARPET (1 parts) 58511 — MAT, FLOOR, FRONT (2 parts) 58511E — CLIP(FOR FRONT FLOOR MAT) (1 parts) 58520C — CLIP(FOR FRONT FLOOR CARPET) (2 parts) 58556C — SILENCER, REAR FLOOR (2 parts) 58556F — CLIP, REAR FLOOR SILENCER (1 parts) 58556F — CLIP, REAR FLOOR SILENCER (1 parts) 58510D — CARPET ASSY, FLOOR, FRONT (4 parts) 58694A — PLATE, MAT SET, UPPER (1 parts) 58698B — PLATE, MAT SET, LOWER (1 parts) 58530B — CLIP(FOR FRONT FLOOR CARPET) (4 parts) 58530B — CLIP(FOR FRONT FLOOR CARPET) (4 parts) 5752 — not listed in this catalogue
588176A · 14 callouts, 1 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
19 parts on this figure
Part number Description Fitment Price
58510D — Carpet Assy, Floor, Front
58510-6AG70-C0 note Carpet Assy, Floor, Front
2021-12 → 2024-11 ended
VJA310 ¥57,500
58510-6AN60-C0 note Carpet Assy, Floor, Front
2021-12 → 2024-11 ended
VJA310 ¥58,000
58510-6AN70-C0 note Carpet Assy, Floor, Front
2021-12 → 2024-11 ended
VJA310 ¥64,900
58510-6AN80-C0 note Carpet Assy, Floor, Front
2021-12 → 2024-11 ended
VJA310 ¥57,500
58511 — Mat, Floor, Front
58511-60A20 Mat, Floor, Front
2021-12 → 2024-11 ended
VJA310 ¥9,900
58511-60A30 note Mat, Floor, Front
2021-12 → 2024-11 ended
VJA310 ¥9,900
58511E — Clip(FOR FRONT FLOOR MAT)
90467-05164-C7 note Clip(FOR FRONT FLOOR MAT)
2021-12 → 2024-11 ended
VJA310 ¥60
58520C — Clip(FOR FRONT FLOOR CARPET)
90467-05164-E2 note Clip(FOR FRONT FLOOR CARPET)
2021-12 → 2024-11 ended
VJA310 ¥90
90467-05164-E2 note Clip(FOR FRONT FLOOR CARPET)
2021-12 → 2024-11 ended
VJA310 ¥90
58521B — Hook, Floor Carpet
58521-60050 Hook, Floor Carpet
2021-12 → 2024-11 ended
VJA310 ¥880
58530B — Clip(FOR FRONT FLOOR CARPET)
90467-07049-23 note Clip(FOR FRONT FLOOR CARPET)
2021-12 → 2024-11 ended
VJA310 ¥90
90467-07049-23 note Clip(FOR FRONT FLOOR CARPET)
2021-12 → 2024-11 ended
VJA310 ¥90
90467-07049-23 note Clip(FOR FRONT FLOOR CARPET)
2021-12 → 2024-11 ended
VJA310 ¥90
90467-07049-23 note Clip(FOR FRONT FLOOR CARPET)
2021-12 → 2024-11 ended
VJA310 ¥90
58556C — Silencer, Rear Floor
58556-60140 Silencer, Rear Floor
2021-12 → 2024-11 ended
VJA310 ¥9,000
58556-60160 note Silencer, Rear Floor
2021-12 → 2024-11 ended
VJA310 ¥8,600
58556F — Clip, Rear Floor Silencer
90467-05164-C7 note Clip, Rear Floor Silencer
2021-12 → 2024-11 ended
VJA310 ¥60
58694A — Plate, Mat Set, Upper
58694-78010 Plate, Mat Set, Upper
2021-12 → 2024-11 ended
VJA310 ¥130
58698B — Plate, Mat Set, Lower
58698-78010 Plate, Mat Set, Lower
2021-12 → 2024-11 ended
VJA310 ¥230
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
