Toyota Lexus LX600

2021-12 → present · chassis VJA310 · catalogue 792170 · Japan

Supported model Data version 2022-01

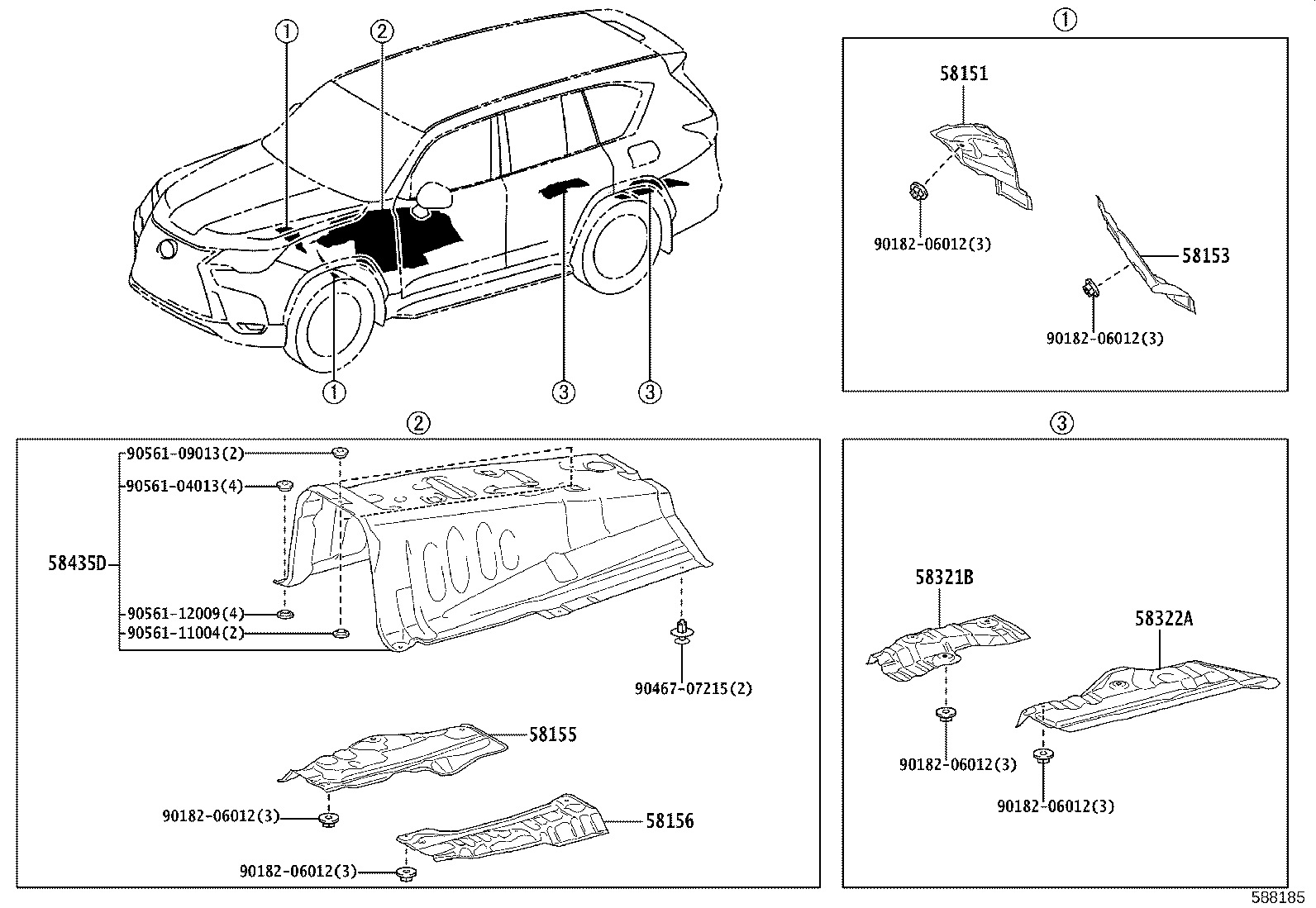

Exploded illustration 588185 58151 — INSULATOR, FRONT FLOOR HEAT, NO.1 (1 parts) 58153 — INSULATOR, FRONT FLOOR HEAT, NO.2 (1 parts) 58155 — INSULATOR, FRONT FLOOR HEAT, NO.3 (1 parts) 58156 — INSULATOR, FRONT FLOOR HEAT, NO.4 (1 parts) 58321B — INSULATOR, REAR FLOOR HEAT, NO.1 (1 parts) 58322A — INSULATOR, REAR FLOOR HEAT, REAR (1 parts) 9018206012 — not listed in this catalogue 9018206012 — not listed in this catalogue 9018206012 — not listed in this catalogue 9018206012 — not listed in this catalogue 9018206012 — not listed in this catalogue 9018206012 — not listed in this catalogue 58435D — SILENCER, FRONT FLOOR, CENTER (1 parts) 9046707215 — not listed in this catalogue 9056104013 — not listed in this catalogue 9056112009 — not listed in this catalogue 9056109013 — not listed in this catalogue 9056111004 — not listed in this catalogue
588185 · 7 callouts, 11 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
7 parts on this figure
Part number Description Fitment Price
58151 — Insulator, Front Floor Heat, NO.1
58151-60150 Insulator, Front Floor Heat, NO.1
2021-12 → 2024-11 ended
VJA310 ¥1,400
58153 — Insulator, Front Floor Heat, NO.2
58153-60140 Insulator, Front Floor Heat, NO.2
2021-12 → 2024-11 ended
VJA310 ¥1,640
58155 — Insulator, Front Floor Heat, NO.3
58155-60120 Insulator, Front Floor Heat, NO.3
2021-12 → 2024-11 ended
VJA310 ¥3,620
58156 — Insulator, Front Floor Heat, NO.4
58156-60090 Insulator, Front Floor Heat, NO.4
2021-12 → 2024-11 ended
VJA310 ¥3,200
58321B — Insulator, Rear Floor Heat, NO.1
58321-60081 Insulator, Rear Floor Heat, NO.1
2021-12 → 2024-11 ended
VJA310 ¥1,700
58322A — Insulator, Rear Floor Heat, Rear
58322-60020 Insulator, Rear Floor Heat, Rear
2021-12 → 2024-11 ended
VJA310 ¥2,970
58435D — Silencer, Front Floor, Center
58563-60080 Silencer, Front Floor, Center
2021-12 → 2024-11 ended
VJA310 ¥10,800
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
