Toyota Lexus LX600

2021-12 → present · chassis VJA310 · catalogue 792170 · Japan

Supported model Data version 2022-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

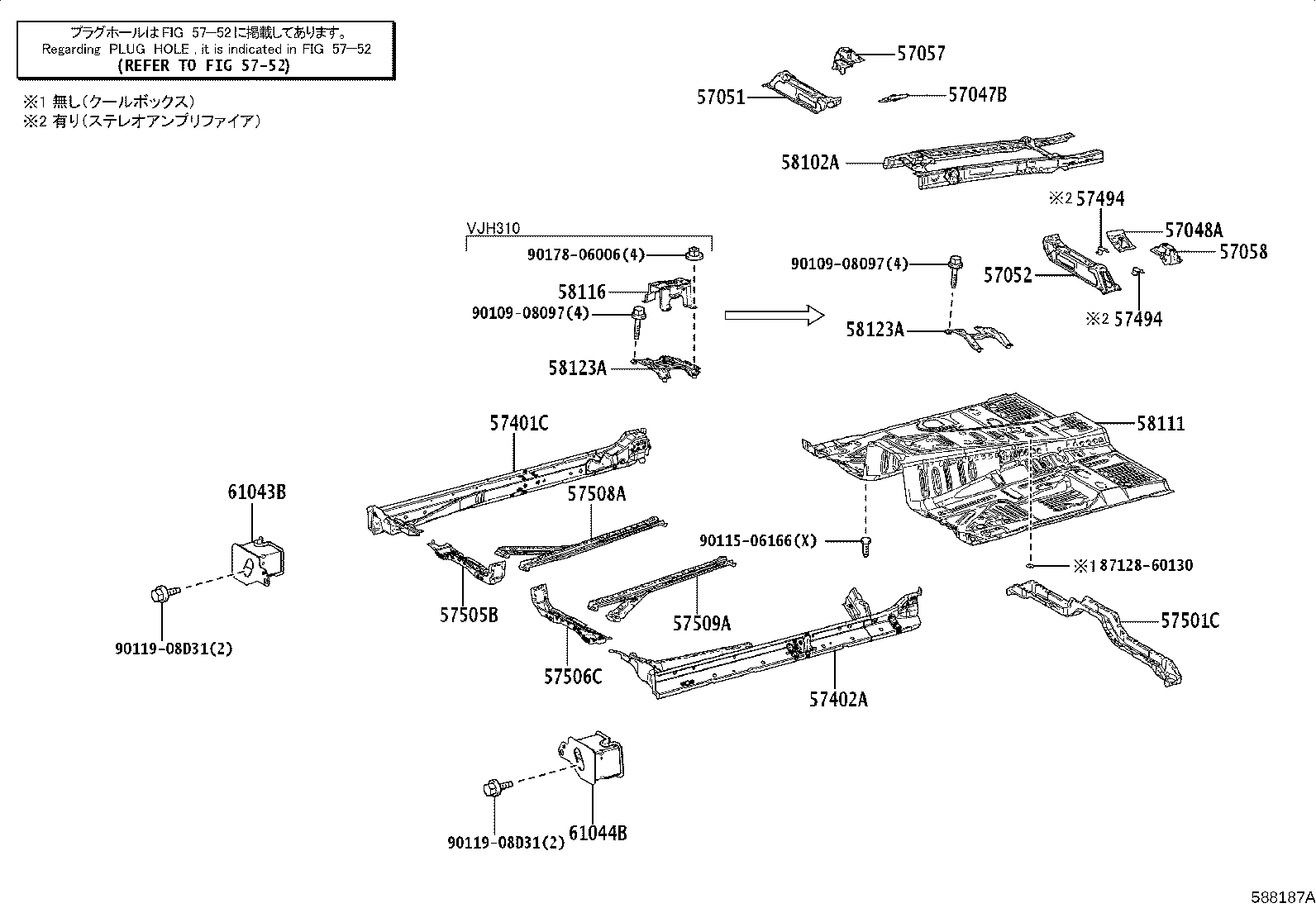

Exploded illustration 588187A 61043B — EXTENSION SUB-ASSY, FRONT BODY PILLAR, OUTER RH (2 parts) 58123A — SUPPORT, SHIFT & SELECT LEVER (2 parts) 57047B — BRACKET SUB-ASSY, FLOOR HOUSING SEAT ANCHOR, RH (1 parts) 57048A — BRACKET SUB-ASSY, FLOOR HOUSING SEAT ANCHOR, LH (1 parts) 57051 — MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH (1 parts) 57052 — MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH (2 parts) 57057 — REINFORCEMENT SUB-ASSY, CROSSMEMBER FLOOR, NO.7 RH (1 parts) 57058 — REINFORCEMENT SUB-ASSY, CROSSMEMBER FLOOR, NO.7 LH (1 parts) 57494 — BRACE, FRONT FLOOR CROSS, NO.2 LH (1 parts) 57494 — BRACE, FRONT FLOOR CROSS, NO.2 LH (1 parts) 57509A — REINFORCEMENT SUB-ASSY, FRONT FLOOR, LH (1 parts) 58102A — REINFORCEMENT SUB-ASSY, FRONT FLOOR (1 parts) 57505B — REINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER, RH (1 parts) 57402A — MEMBER SUB-ASSY, FLOOR SIDE, INNER LH (1 parts) 57506C — REINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER, LH (1 parts) 58111 — PAN, FRONT FLOOR (1 parts) 61044B — EXTENSION SUB-ASSY, FRONT BODY PILLAR, OUTER LH (2 parts) 9011908D31 — not listed in this catalogue 9011506166 — not listed in this catalogue 9011908D31 — not listed in this catalogue 9010908097 — not listed in this catalogue 57401C — MEMBER SUB-ASSY, FLOOR SIDE, INNER RH (1 parts) 8712860130 — not listed in this catalogue 57501C — BRACE SUB-ASSY, FRONT FLOOR, CENTER (1 parts) 57508A — REINFORCEMENT SUB-ASSY, FRONT FLOOR, RH (1 parts) 5752 — not listed in this catalogue 58116 — not listed in this catalogue 58123A — SUPPORT, SHIFT & SELECT LEVER (2 parts) 9010908097 — not listed in this catalogue 9017806006 — not listed in this catalogue
588187A · 21 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
23 parts on this figure
Part number Description Fitment Price
57047B — Bracket Sub-assy, Floor Housing Seat Anchor, RH
57047-60010 Bracket Sub-assy, Floor Housing Seat Anchor, RH
2021-12 → 2024-11 ended
VJA310 ¥1,560
57048A — Bracket Sub-assy, Floor Housing Seat Anchor, LH
57048-60010 Bracket Sub-assy, Floor Housing Seat Anchor, LH
2021-12 → 2024-11 ended
VJA310 ¥1,560
57051 — Member Sub-assy, Front Floor Cross, RH
57051-60080 Member Sub-assy, Front Floor Cross, RH
2021-12 → 2024-11 ended
VJA310 ¥4,110
57052 — Member Sub-assy, Front Floor Cross, LH
57052-60080 Member Sub-assy, Front Floor Cross, LH
2021-12 → 2024-11 ended
VJA310 ¥4,110
57052-60090 note Member Sub-assy, Front Floor Cross, LH
2021-12 → 2024-11 ended
VJA310 ¥4,150
57057 — Reinforcement Sub-assy, Crossmember Floor, NO.7 RH
57057-60010 Reinforcement Sub-assy, Crossmember Floor, NO.7 RH
2021-12 → 2024-11 ended
VJA310 ¥2,470
57058 — Reinforcement Sub-assy, Crossmember Floor, NO.7 LH
57058-60010 Reinforcement Sub-assy, Crossmember Floor, NO.7 LH
2021-12 → 2024-11 ended
VJA310 ¥2,400
57401C — Member Sub-assy, Floor Side, Inner RH
57401-60140 Member Sub-assy, Floor Side, Inner RH
2021-12 → 2024-11 ended
VJA310 ¥22,000
57402A — Member Sub-assy, Floor Side, Inner LH
57402-60150 Member Sub-assy, Floor Side, Inner LH
2021-12 → 2024-11 ended
VJA310 ¥22,000
57494 — Brace, Front Floor Cross, NO.2 LH
57494-60010 Brace, Front Floor Cross, NO.2 LH
2021-12 → 2024-11 ended
VJA310 ¥470
57501C — Brace Sub-assy, Front Floor, Center
57501-60010 Brace Sub-assy, Front Floor, Center
2021-12 → 2024-11 ended
VJA310 ¥9,200
57505B — Reinforcement Sub-assy, Front Floor Under, RH
57505-60080 Reinforcement Sub-assy, Front Floor Under, RH
2021-12 → 2024-11 ended
VJA310 ¥4,710
57506C — Reinforcement Sub-assy, Front Floor Under, LH
57506-60050 Reinforcement Sub-assy, Front Floor Under, LH
2021-12 → 2024-11 ended
VJA310 ¥4,710
57508A — Reinforcement Sub-assy, Front Floor, RH
57508-60030 Reinforcement Sub-assy, Front Floor, RH
2021-12 → 2024-11 ended
VJA310 ¥5,300
57509A — Reinforcement Sub-assy, Front Floor, LH
57509-60140 Reinforcement Sub-assy, Front Floor, LH
2021-12 → 2024-11 ended
VJA310 ¥6,000
58102A — Reinforcement Sub-assy, Front Floor
58102-60120 Reinforcement Sub-assy, Front Floor
2021-12 → 2024-11 ended
VJA310 ¥8,500
58111 — Pan, Front Floor
58111-60G10 Pan, Front Floor
2021-12 → 2024-11 ended
VJA310 ¥39,800
58123A — Support, Shift & Select Lever
58123-60110 Support, Shift & Select Lever
2021-12 → 2023-04 ended
VJA310 ¥3,010
58123-60111 Support, Shift & Select Lever
2023-05 → 2024-11 ended
VJA310 ¥2,730
61043B — Extension Sub-assy, Front Body Pillar, Outer RH
61043-60010 Extension Sub-assy, Front Body Pillar, Outer RH
2021-12 → 2023-03 ended
VJA310 ¥2,920
61043-60011 Extension Sub-assy, Front Body Pillar, Outer RH
2023-04 → 2024-11 ended
VJA310 ¥2,650
61044B — Extension Sub-assy, Front Body Pillar, Outer LH
61044-60010 Extension Sub-assy, Front Body Pillar, Outer LH
2021-12 → 2023-03 ended
VJA310 ¥2,920
61044-60011 Extension Sub-assy, Front Body Pillar, Outer LH
2023-04 → 2024-11 ended
VJA310 ¥2,650
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
