Toyota Lexus LX600

2021-12 → present · chassis VJA310 · catalogue 792170 · Japan

Supported model Data version 2022-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

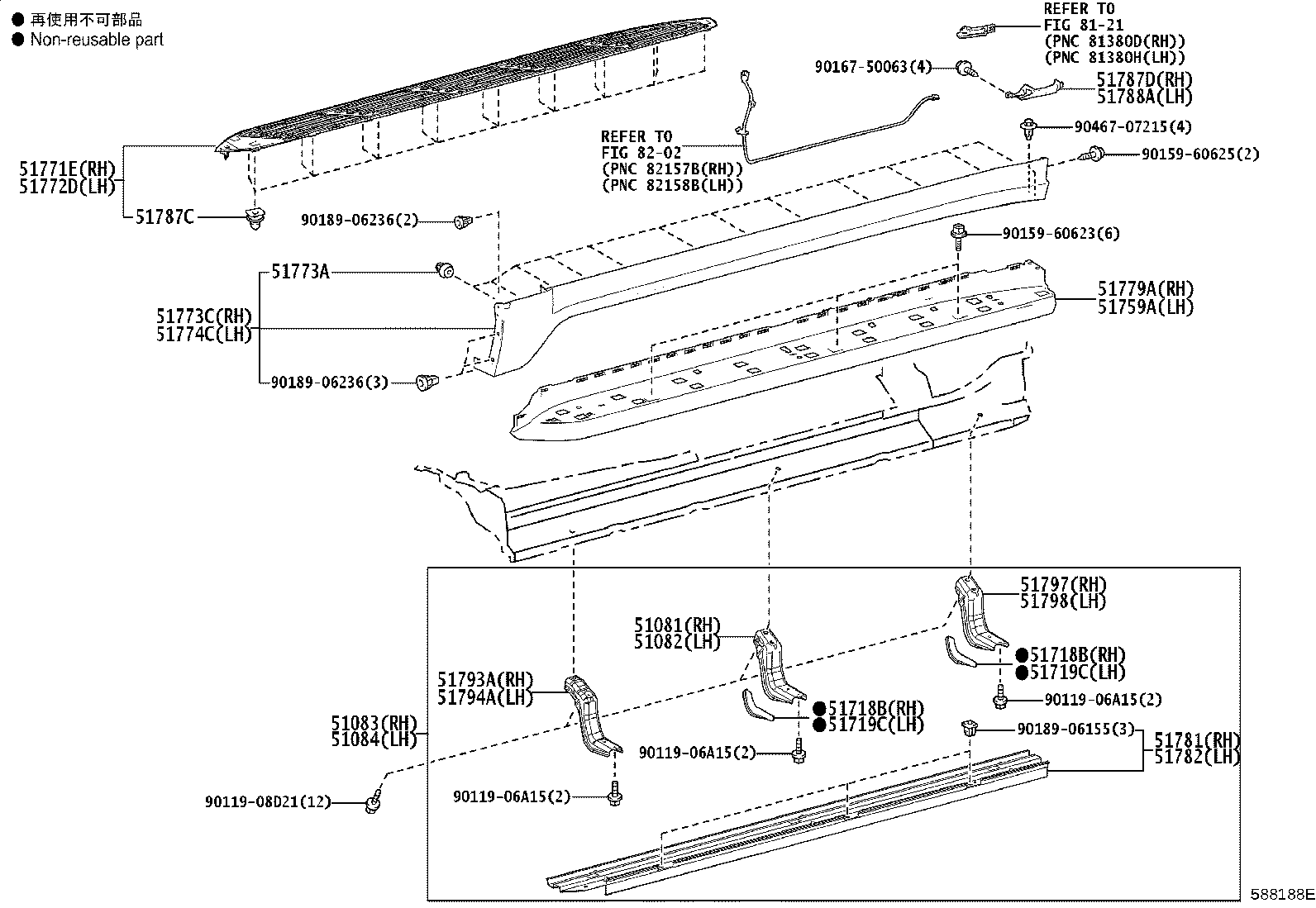

Exploded illustration 588188E 8121 — not listed in this catalogue 51773A — CLIP, STEP PLATE COVER (1 parts) 51787C — INSERT, SIDE DOOR STEP PLATE (1 parts) 9018906236 — not listed in this catalogue 9018906155 — not listed in this catalogue 9015960625 — not listed in this catalogue 9015960623 — not listed in this catalogue 9046707215 — not listed in this catalogue 9011908D21 — not listed in this catalogue 51081 — STAY SUB-ASSY, SIDE STEP, NO.1 RH (1 parts) 51793A — BRACKET, SIDE STEP, NO.1 RH (1 parts) 51797 — BRACKET, SIDE STEP, NO.3 RH (1 parts) 51082 — STAY SUB-ASSY, SIDE STEP, NO.1 LH (1 parts) 51718B — PROTECTOR, STEP COVER, RH (1 parts) 51719C — PROTECTOR, STEP COVER, LH (1 parts) 51718B — PROTECTOR, STEP COVER, RH (1 parts) 51719C — PROTECTOR, STEP COVER, LH (1 parts) 9011906A15 — not listed in this catalogue 9011906A15 — not listed in this catalogue 9011906A15 — not listed in this catalogue 51794A — BRACKET, SIDE STEP, NO.1 LH (1 parts) 51798 — BRACKET, SIDE STEP, NO.3 LH (1 parts) 51781 — PANEL, STEP, RH (1 parts) 51782 — PANEL, STEP, LH (1 parts) 51787D — REINFORCEMENT, STEP COVER, RH (1 parts) 51788A — REINFORCEMENT, STEP COVER, LH (1 parts) 51773C — COVER, STEP PLATE, RH (7 parts) 51774C — COVER, STEP PLATE, LH (7 parts) 51771E — PLATE, STEP, RH (1 parts) 51772D — PLATE, STEP, LH (1 parts) 51779A — COVER, SIDE DOOR STEP PLATE, REAR RH (1 parts) 51759A — COVER, SIDE DOOR STEP PLATE, REAR LH (1 parts) 9018906236 — not listed in this catalogue 51083 — STEP SUB-ASSY, RH (1 parts) 51084 — STEP SUB-ASSY, LH (1 parts) 9016750063 — not listed in this catalogue
588188E · 24 callouts, 12 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
34 parts on this figure
Part number Description Fitment Price
51081 — Stay Sub-assy, Side Step, NO.1 RH
51081-60020 Stay Sub-assy, Side Step, NO.1 RH
2021-12 → 2024-11 ended
VJA310 ¥2,320
51082 — Stay Sub-assy, Side Step, NO.1 LH
51082-60040 Stay Sub-assy, Side Step, NO.1 LH
2021-12 → 2024-11 ended
VJA310 ¥2,320
51083 — Step Sub-assy, RH
51083-60270 Step Sub-assy, RH
2021-12 → 2024-11 ended
VJA310 ¥21,500
51084 — Step Sub-assy, LH
51084-60270 Step Sub-assy, LH
2021-12 → 2024-11 ended
VJA310 ¥21,500
51718B — Protector, Step Cover, RH
51718-60090 Protector, Step Cover, RH
2021-12 → 2024-11 ended
VJA310 ¥210
51719C — Protector, Step Cover, LH
51719-60050 Protector, Step Cover, LH
2021-12 → 2024-11 ended
VJA310 ¥210
51759A — Cover, Side Door Step Plate, Rear LH
51759-60190 Cover, Side Door Step Plate, Rear LH
2021-12 → 2024-11 ended
VJA310 ¥10,400
51771E — Plate, Step, RH
51771-6A190 Plate, Step, RH
2021-12 → 2024-11 ended
VJA310 ¥6,700
51772D — Plate, Step, LH
51772-60210 Plate, Step, LH
2021-12 → 2024-11 ended
VJA310 ¥6,700
51773A — Clip, Step Plate Cover
90467-09206 Clip, Step Plate Cover
2021-12 → 2024-11 ended
VJA310 ¥80
51773C — Cover, Step Plate, RH
51773-60260-A0 note Cover, Step Plate, RH
2021-12 → 2024-11 ended
VJA310 ¥10,900
51773-60260-A1 note Cover, Step Plate, RH
2021-12 → 2024-11 ended
VJA310 ¥10,900
51773-60260-B0 note Cover, Step Plate, RH
2021-12 → 2024-11 ended
VJA310 ¥10,900
51773-60260-B1 note Cover, Step Plate, RH
2021-12 → 2024-11 ended
VJA310 ¥10,900
51773-60260-C0 note Cover, Step Plate, RH
2021-12 → 2024-11 ended
VJA310 ¥12,000
51773-60260-C1 note Cover, Step Plate, RH
2021-12 → 2024-11 ended
VJA310 ¥10,900
51773-60260-G0 note Cover, Step Plate, RH
2021-12 → 2024-11 ended
VJA310 ¥10,900
51774C — Cover, Step Plate, LH
51774-60260-A0 note Cover, Step Plate, LH
2021-12 → 2024-11 ended
VJA310 ¥10,900
51774-60260-A1 note Cover, Step Plate, LH
2021-12 → 2024-11 ended
VJA310 ¥10,900
51774-60260-B0 note Cover, Step Plate, LH
2021-12 → 2024-11 ended
VJA310 ¥10,900
51774-60260-B1 note Cover, Step Plate, LH
2021-12 → 2024-11 ended
VJA310 ¥10,900
51774-60260-C0 note Cover, Step Plate, LH
2021-12 → 2024-11 ended
VJA310 ¥12,000
51774-60260-C1 note Cover, Step Plate, LH
2021-12 → 2024-11 ended
VJA310 ¥10,900
51774-60260-G0 note Cover, Step Plate, LH
2021-12 → 2024-11 ended
VJA310 ¥10,900
51779A — Cover, Side Door Step Plate, Rear RH
51779-60210 Cover, Side Door Step Plate, Rear RH
2021-12 → 2024-11 ended
VJA310 ¥10,400
51781 — Panel, Step, RH
51781-60410 Panel, Step, RH
2021-12 → 2024-11 ended
VJA310 ¥10,500
51782 — Panel, Step, LH
51782-60390 Panel, Step, LH
2021-12 → 2024-11 ended
VJA310 ¥10,500
51787C — Insert, Side Door Step Plate
51787-60070 Insert, Side Door Step Plate
2021-12 → 2024-11 ended
VJA310 ¥70
51787D — Reinforcement, Step Cover, RH
51787-60100 Reinforcement, Step Cover, RH
2021-12 → 2024-11 ended
VJA310 ¥590
51788A — Reinforcement, Step Cover, LH
51788-60050 Reinforcement, Step Cover, LH
2021-12 → 2024-11 ended
VJA310 ¥590
51793A — Bracket, Side Step, NO.1 RH
51793-60220 Bracket, Side Step, NO.1 RH
2021-12 → 2024-11 ended
VJA310 ¥2,470
51794A — Bracket, Side Step, NO.1 LH
51793-60220 Bracket, Side Step, NO.1 LH
2021-12 → 2024-11 ended
VJA310 ¥2,470
51797 — Bracket, Side Step, NO.3 RH
51797-60170 Bracket, Side Step, NO.3 RH
2021-12 → 2024-11 ended
VJA310 ¥2,250
51798 — Bracket, Side Step, NO.3 LH
51797-60170 Bracket, Side Step, NO.3 LH
2021-12 → 2024-11 ended
VJA310 ¥2,250
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
