Toyota Lexus LX600

2021-12 → present · chassis VJA310 · catalogue 792170 · Japan

Supported model Data version 2022-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

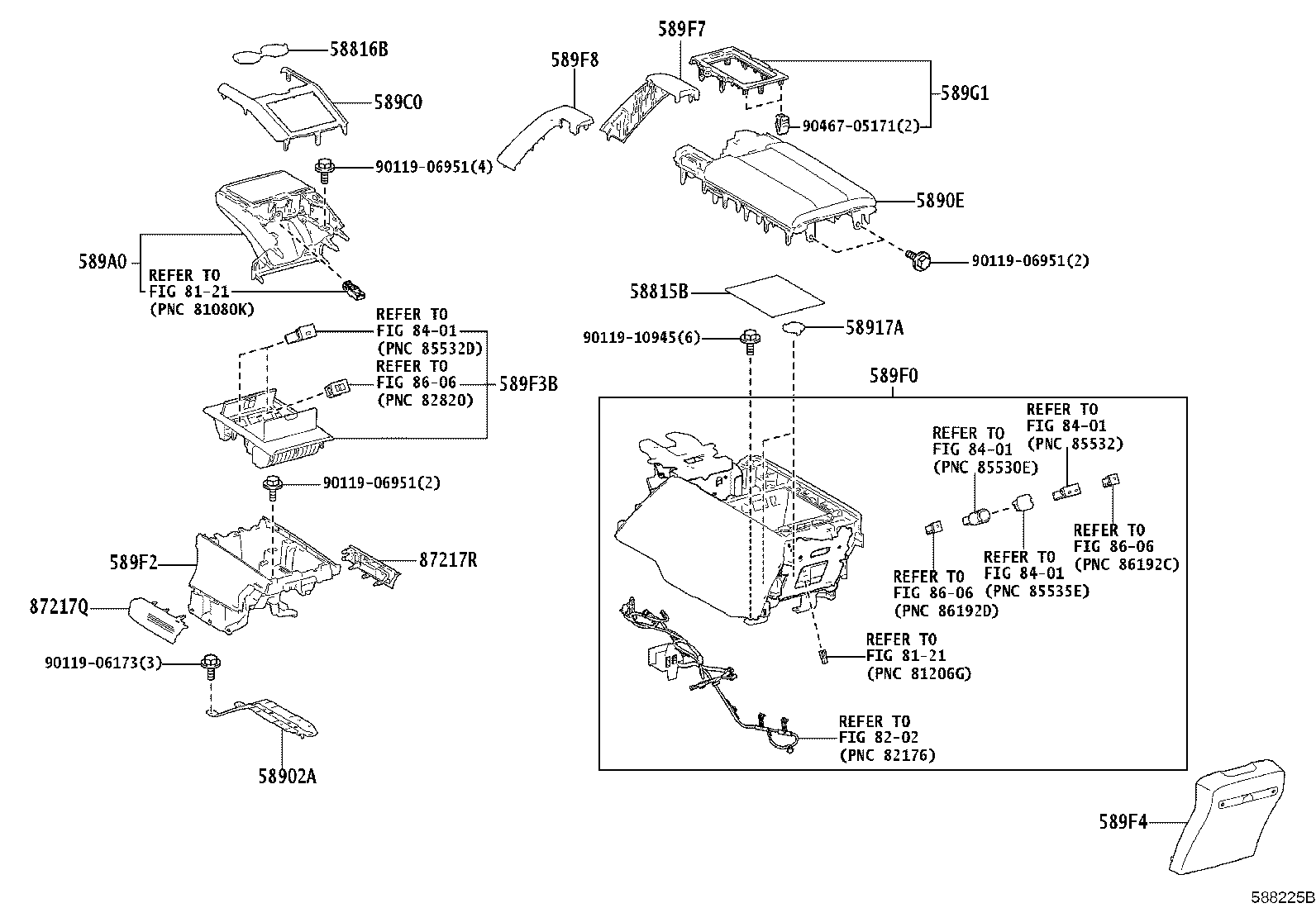

Exploded illustration 588225B 58816B — INSERT, CONSOLE BOX (1 parts) 589C0 — PLATE ASSY, REAR SEAT CONSOLE TABLE (1 parts) 58902A — BRACKET SUB-ASSY, CONSOLE BOX MOUNTING, NO.1 (1 parts) 589A0 — TABLE ASSY, REAR SEAT CONSOLE (1 parts) 589F2 — PANEL, REAR SEAT CONSOLE BOX, LOWER (1 parts) 87217Q — DUCT, AIR, REAR NO.1 (1 parts) 87217R — DUCT, AIR, REAR NO.2 (1 parts) 589F3B — PANEL, REAR SEAT CONSOLE BOX, FRONT (1 parts) 8121 — not listed in this catalogue 9011906951 — not listed in this catalogue 9046705171 — not listed in this catalogue 9011906173 — not listed in this catalogue 9011910945 — not listed in this catalogue 9011906951 — not listed in this catalogue 9011906951 — not listed in this catalogue 8121 — not listed in this catalogue 8202 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8606 — not listed in this catalogue 8606 — not listed in this catalogue 589F0 — BOX ASSY, REAR SEAT CONSOLE (2 parts) 58815B — CARPET, CONSOLE BOX (1 parts) 5890E — ARMREST SUB-ASSY, REAR SEAT CONSOLE (2 parts) 589F7 — COVER, REAR SEAT CONSOLE BOX, RH (4 parts) 589G1 — not listed in this catalogue 589F8 — COVER, REAR SEAT CONSOLE BOX, LH (4 parts) 58917A — COVER, CONSOLE BOX, REAR (1 parts) 589F4 — PANEL, REAR SEAT CONSOLE BOX, RR (1 parts) 8606 — not listed in this catalogue 8401 — not listed in this catalogue
588225B · 15 callouts, 17 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
23 parts on this figure
Part number Description Fitment Price
58815B — Carpet, Console Box
58815-60160 note Carpet, Console Box
2021-12 → 2024-11 ended
VJA310 ¥430
58816B — Insert, Console Box
58817-60130 note Insert, Console Box
2021-12 → 2024-11 ended
VJA310 ¥590
58902A — Bracket Sub-assy, Console Box Mounting, NO.1
58902-60120 note Bracket Sub-assy, Console Box Mounting, NO.1
2021-12 → 2024-11 ended
VJA310 ¥3,650
5890E — Armrest Sub-assy, Rear Seat Console
5890E-60010-C1 note Armrest Sub-assy, Rear Seat Console
2021-12 → 2024-11 ended
VJA310 ¥46,400
5890E-60010-E0 note Armrest Sub-assy, Rear Seat Console
2021-12 → 2024-11 ended
VJA310 ¥46,400
58917A — Cover, Console Box, Rear
58917-60160 note Cover, Console Box, Rear
2021-12 → 2024-11 ended
VJA310 ¥160
589A0 — Table Assy, Rear Seat Console
589A0-60010 note Table Assy, Rear Seat Console
2021-12 → 2024-11 ended
VJA310 ¥27,300
589C0 — Plate Assy, Rear Seat Console Table
589C0-60010 note Plate Assy, Rear Seat Console Table
2021-12 → 2024-11 ended
VJA310 ¥16,900
589F0 — Box Assy, Rear Seat Console
589F0-60010-C0 note Box Assy, Rear Seat Console
2021-12 → 2024-11 ended
VJA310 ¥95,100
589F0-60010-E0 note Box Assy, Rear Seat Console
2021-12 → 2024-11 ended
VJA310 ¥95,100
589F2 — Panel, Rear Seat Console Box, Lower
589F2-60010-C0 note Panel, Rear Seat Console Box, Lower
2021-12 → 2024-11 ended
VJA310 ¥15,800
589F3B — Panel, Rear Seat Console Box, Front
589F3-60010 note Panel, Rear Seat Console Box, Front
2021-12 → 2024-11 ended
VJA310 ¥36,300
589F4 — Panel, Rear Seat Console Box, RR
589F4-60010-C0 note Panel, Rear Seat Console Box, RR
2021-12 → 2024-11 ended
VJA310 ¥10,700
589F7 — Cover, Rear Seat Console Box, RH
589F7-60080-C0 note Cover, Rear Seat Console Box, RH
2021-12 → 2024-08 ended
VJA310 ¥11,400
589F7-60080-C1 note Cover, Rear Seat Console Box, RH
2024-08 → 2024-11 ended
VJA310 ¥10,300
589F7-60080-E0 note Cover, Rear Seat Console Box, RH
2021-12 → 2024-08 ended
VJA310 ¥11,400
589F7-60080-E1 note Cover, Rear Seat Console Box, RH
2024-08 → 2024-11 ended
VJA310 ¥10,300
589F8 — Cover, Rear Seat Console Box, LH
589F8-60060-C0 note Cover, Rear Seat Console Box, LH
2021-12 → 2024-08 ended
VJA310 ¥11,400
589F8-60060-C1 note Cover, Rear Seat Console Box, LH
2024-08 → 2024-11 ended
VJA310 ¥10,300
589F8-60060-E0 note Cover, Rear Seat Console Box, LH
2021-12 → 2024-08 ended
VJA310 ¥11,400
589F8-60060-E1 note Cover, Rear Seat Console Box, LH
2024-08 → 2024-11 ended
VJA310 ¥10,300
87217Q — Duct, Air, Rear NO.1
87217-60020 note Duct, Air, Rear NO.1
2021-12 → 2024-11 ended
VJA310 ¥2,350
87217R — Duct, Air, Rear NO.2
87217-60070 note Duct, Air, Rear NO.2
2021-12 → 2024-11 ended
VJA310 ¥2,350
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
