Toyota Lexus LX600

2021-12 → present · chassis VJA310 · catalogue 792170 · Japan

Supported model Data version 2022-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

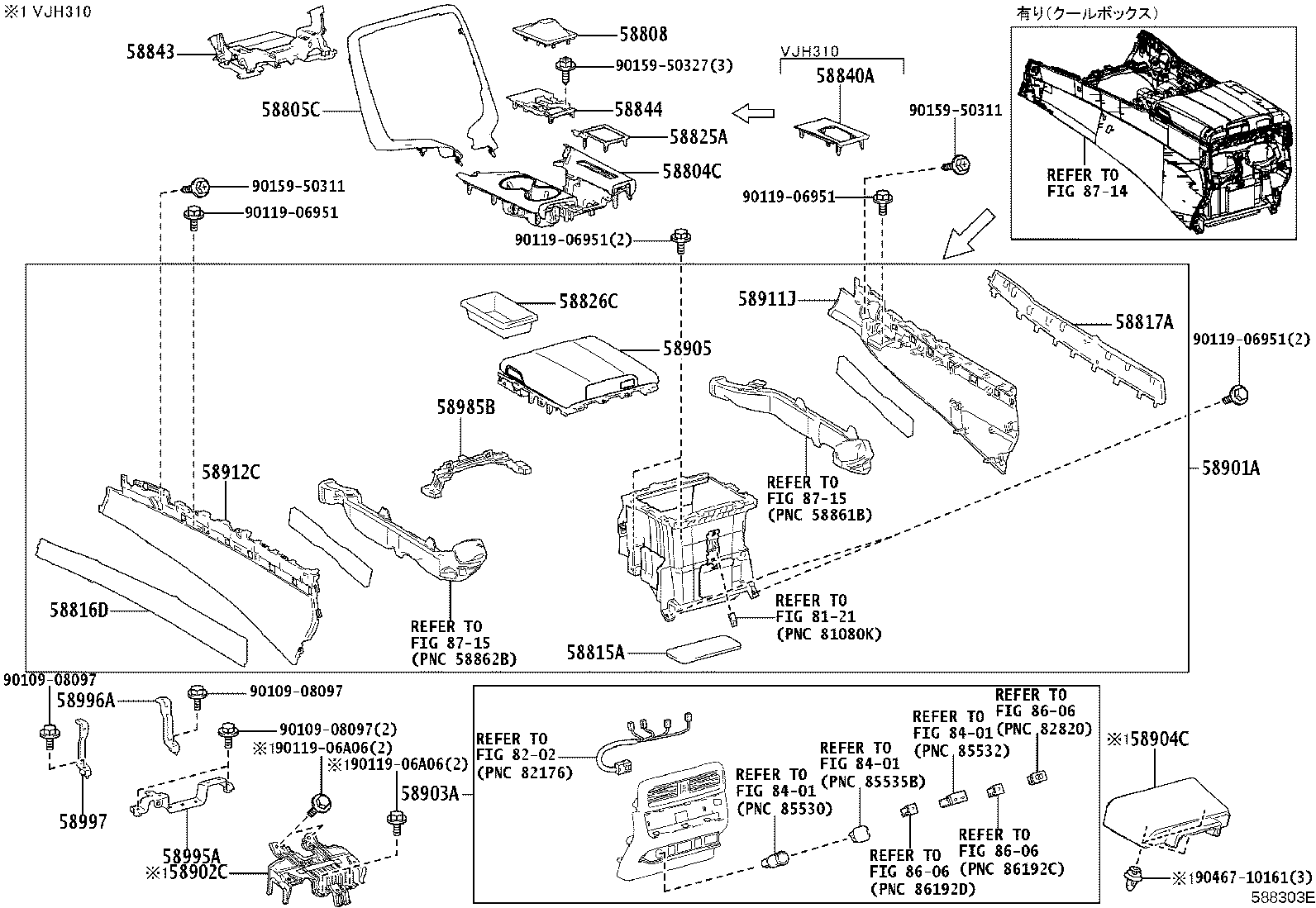

Exploded illustration 588303E 9046710161 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8606 — not listed in this catalogue 8606 — not listed in this catalogue 8606 — not listed in this catalogue 8401 — not listed in this catalogue 8202 — not listed in this catalogue 8121 — not listed in this catalogue 58805C — PANEL SUB-ASSY, CONSOLE, UPPER REAR (1 parts) 58804C — INSERT SUB-ASSY, CONSOLE BOX, FRONT (5 parts) 58817A — INSERT, CONSOLE BOX, FRONT NO.2 (6 parts) 58911J — PANEL, BOX SIDE, NO.1 (2 parts) 58985B — RETAINER, CONSOLE BOX, NO.1 (2 parts) 58912C — PANEL, BOX SIDE, NO.2 (2 parts) 58826C — POCKET, CONSOLE BOX, LOWER (2 parts) 58905 — DOOR SUB-ASSY, CONSOLE COMPARTMENT (6 parts) 58815A — CARPET, CONSOLE BOX (2 parts) 58816D — INSERT, CONSOLE BOX, FRONT NO.1 (6 parts) 58995A — BRACKET, CONSOLE BOX MOUNTING, NO.1 (1 parts) 58902C — not listed in this catalogue 58904C — not listed in this catalogue 58996A — BRACKET, CONSOLE BOX MOUNTING, NO.2 (1 parts) 58997 — BRACKET, CONSOLE BOX MOUNTING, NO.3 (1 parts) 58808 — COVER SUB-ASSY, SHIFTING HOLE (1 parts) 58840A — not listed in this catalogue 58843 — BEZEL, SHIFTING HOLE (1 parts) 58844 — BEZEL, CONSOLE BOX (1 parts) 58825A — POCKET, CONSOLE BOX (1 parts) 9015950327 — not listed in this catalogue 9010908097 — not listed in this catalogue 9010908097 — not listed in this catalogue 9010908097 — not listed in this catalogue 9011906A06 — not listed in this catalogue 9011906A06 — not listed in this catalogue 9011906951 — not listed in this catalogue 9011906951 — not listed in this catalogue 9011906951 — not listed in this catalogue 9011906951 — not listed in this catalogue 58903A — PANEL SUB-ASSY, CONSOLE REAR END (3 parts) 9015950311 — not listed in this catalogue 9015950311 — not listed in this catalogue 8715 — not listed in this catalogue 8715 — not listed in this catalogue 58901A — BOX SUB-ASSY, CONSOLE, REAR (6 parts) 8714 — not listed in this catalogue
588303E · 19 callouts, 27 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
50 parts on this figure
Part number Description Fitment Price
58804C — Insert Sub-assy, Console Box, Front
58804-60N40-C0 note Insert Sub-assy, Console Box, Front
2021-12 → 2024-11 ended
VJA310 ¥66,600
58804-60N50-C1 note Insert Sub-assy, Console Box, Front
2021-12 → 2024-11 ended
VJA310 ¥59,300
58804-60N60-E0 note Insert Sub-assy, Console Box, Front
2021-12 → 2024-11 ended
VJA310 ¥66,600
58804-60N70-E1 note Insert Sub-assy, Console Box, Front
2021-12 → 2024-11 ended
VJA310 ¥59,300
58804-60N80-B0 note Insert Sub-assy, Console Box, Front
2021-12 → 2024-11 ended
VJA310 ¥60,900
58805C — Panel Sub-assy, Console, Upper Rear
58805-60460 Panel Sub-assy, Console, Upper Rear
2021-12 → 2024-11 ended
VJA310 ¥8,700
58808 — Cover Sub-assy, Shifting Hole
58808-60570-C2 note Cover Sub-assy, Shifting Hole
2021-12 → 2024-11 ended
VJA310 ¥7,200
58815A — Carpet, Console Box
58815-60170 note Carpet, Console Box
2021-12 → 2024-11 ended
VJA310 ¥350
58815-60170 note Carpet, Console Box
2021-12 → 2024-11 ended
VJA310 ¥350
58816D — Insert, Console Box, Front NO.1
58816-60130-C1 note Insert, Console Box, Front NO.1
2021-12 → 2024-11 ended
VJA310 ¥9,800
58816-60130-C1 note Insert, Console Box, Front NO.1
2021-12 → 2024-11 ended
VJA310 ¥9,800
58816-60130-D2 note Insert, Console Box, Front NO.1
2021-12 → 2024-11 ended
VJA310 ¥9,800
58816-60130-E3 note Insert, Console Box, Front NO.1
2021-12 → 2024-11 ended
VJA310 ¥9,800
58816-60130-E4 note Insert, Console Box, Front NO.1
2021-12 → 2024-11 ended
VJA310 ¥9,800
58816-60130-E5 note Insert, Console Box, Front NO.1
2021-12 → 2024-11 ended
VJA310 ¥9,800
58817A — Insert, Console Box, Front NO.2
58817-60140-C1 note Insert, Console Box, Front NO.2
2021-12 → 2024-11 ended
VJA310 ¥9,800
58817-60140-C1 note Insert, Console Box, Front NO.2
2021-12 → 2024-11 ended
VJA310 ¥9,800
58817-60140-D2 note Insert, Console Box, Front NO.2
2021-12 → 2024-11 ended
VJA310 ¥9,800
58817-60140-E3 note Insert, Console Box, Front NO.2
2021-12 → 2024-11 ended
VJA310 ¥9,800
58817-60140-E4 note Insert, Console Box, Front NO.2
2021-12 → 2024-11 ended
VJA310 ¥9,800
58817-60140-E5 note Insert, Console Box, Front NO.2
2021-12 → 2024-11 ended
VJA310 ¥9,800
58825A — Pocket, Console Box
58825-60130 note Pocket, Console Box
2021-12 → 2024-11 ended
VJA310 ¥2,990
58826C — Pocket, Console Box, Lower
58826-60050 note Pocket, Console Box, Lower
2021-12 → 2024-11 ended
VJA310 ¥1,820
58826-60050 note Pocket, Console Box, Lower
2021-12 → 2024-11 ended
VJA310 ¥1,820
58843 — Bezel, Shifting Hole
58843-60220 Bezel, Shifting Hole
2021-12 → 2024-11 ended
VJA310 ¥5,900
58844 — Bezel, Console Box
58844-60140 Bezel, Console Box
2021-12 → 2024-11 ended
VJA310 ¥8,500
58901A — Box Sub-assy, Console, Rear
58901-60A50-C4 note Box Sub-assy, Console, Rear
2021-12 → 2024-11 ended
VJA310 ¥94,400
58901-60A50-D2 note Box Sub-assy, Console, Rear
2021-12 → 2024-11 ended
VJA310 ¥94,400
58901-60A50-E5 note Box Sub-assy, Console, Rear
2021-12 → 2024-11 ended
VJA310 ¥94,400
58901-60A50-E6 note Box Sub-assy, Console, Rear
2021-12 → 2024-11 ended
VJA310 ¥94,400
58901-60A70-C3 note Box Sub-assy, Console, Rear
2021-12 → 2024-11 ended
VJA310 ¥96,000
58901-60A70-E2 note Box Sub-assy, Console, Rear
2021-12 → 2024-11 ended
VJA310 ¥96,000
58903A — Panel Sub-assy, Console Rear End
58903-60A70-C0 note Panel Sub-assy, Console Rear End
2021-12 → 2024-11 ended
VJA310 ¥45,700
58903-60A80-C0 note Panel Sub-assy, Console Rear End
2021-12 → 2024-11 ended
VJA310 ¥23,200
58903-60A90-C0 note Panel Sub-assy, Console Rear End
2021-12 → 2024-11 ended
VJA310 ¥38,300
58905 — Door Sub-assy, Console Compartment
58905-60700-C4 note Door Sub-assy, Console Compartment
2021-12 → 2024-11 ended
VJA310 ¥39,100
58905-60700-D2 note Door Sub-assy, Console Compartment
2021-12 → 2024-11 ended
VJA310 ¥39,100
58905-60700-E3 note Door Sub-assy, Console Compartment
2021-12 → 2024-11 ended
VJA310 ¥39,100
58905-60700-E4 note Door Sub-assy, Console Compartment
2021-12 → 2024-11 ended
VJA310 ¥39,100
58905-60800-C2 note Door Sub-assy, Console Compartment
2021-12 → 2024-11 ended
VJA310 ¥40,900
58905-60800-E1 note Door Sub-assy, Console Compartment
2021-12 → 2024-11 ended
VJA310 ¥40,900
58911J — Panel, Box Side, NO.1
58912-60370-C0 note Panel, Box Side, NO.1
2021-12 → 2024-11 ended
VJA310 ¥7,300
58912-60370-C0 note Panel, Box Side, NO.1
2021-12 → 2024-11 ended
VJA310 ¥7,300
58912C — Panel, Box Side, NO.2
58911-60390-C0 note Panel, Box Side, NO.2
2021-12 → 2024-11 ended
VJA310 ¥7,300
58911-60390-C0 note Panel, Box Side, NO.2
2021-12 → 2024-11 ended
VJA310 ¥7,300
58985B — Retainer, Console Box, NO.1
58985-60140 note Retainer, Console Box, NO.1
2021-12 → 2024-11 ended
VJA310 ¥1,740
58985-60140 note Retainer, Console Box, NO.1
2021-12 → 2024-11 ended
VJA310 ¥1,740
58995A — Bracket, Console Box Mounting, NO.1
58995-60100 Bracket, Console Box Mounting, NO.1
2021-12 → 2024-11 ended
VJA310 ¥1,440
58996A — Bracket, Console Box Mounting, NO.2
58996-60110 Bracket, Console Box Mounting, NO.2
2021-12 → 2024-11 ended
VJA310 ¥820
58997 — Bracket, Console Box Mounting, NO.3
58997-60100 Bracket, Console Box Mounting, NO.3
2021-12 → 2024-11 ended
VJA310 ¥820
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
